64 12 530 Removing and installing/replacing combustion air blower (Thermo Top S)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete heater, refer to 64 12 500 REMOVING AND INSTALLING/REPLACING COMPLETE HEATER (THERMO TOP S) .

Remove burner insert, refer to 64 12 535 REMOVING AND INSTALLING/REPLACING BURNER INSERT (THERMO TOP S) .

Release screws and remove combustion air blower unit.

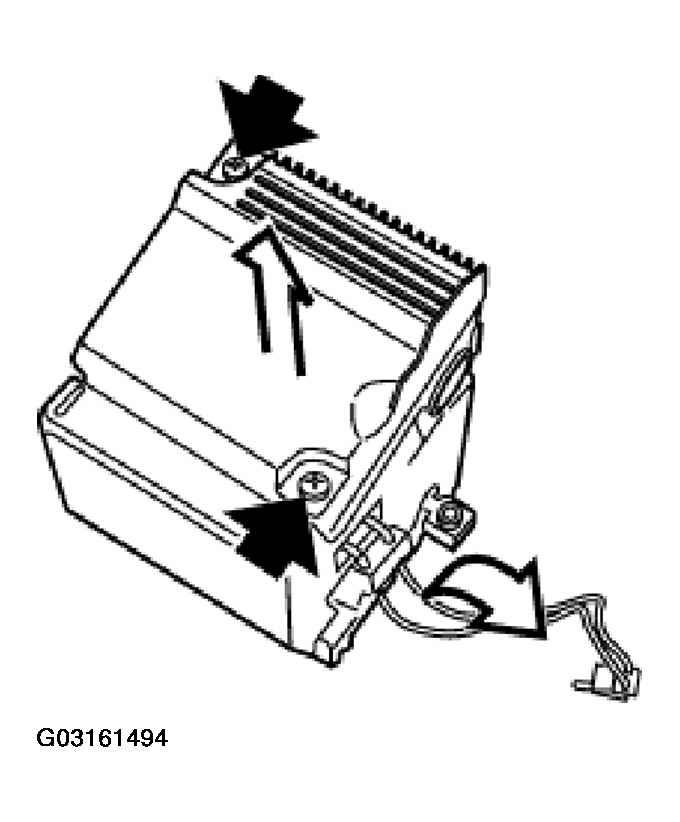

Fig 1: Removing Combustion Air Blower Unit (Thermo Top S)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, refer to 64 12 8AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - 5-SERIES .

Installation:

Replace sealing rings and ensure they are correctly seated.

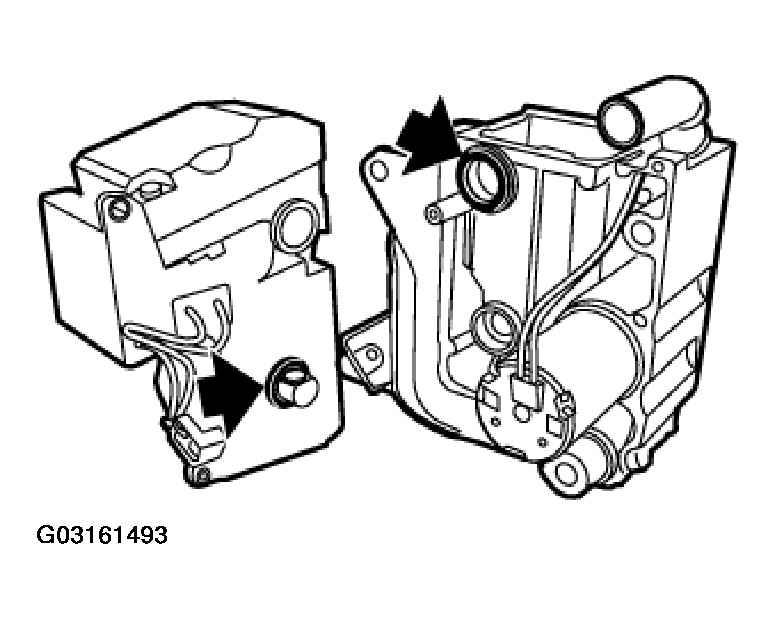

Fig 2: Installing Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws, unclip rubber grommet and pull out combustion air blower.

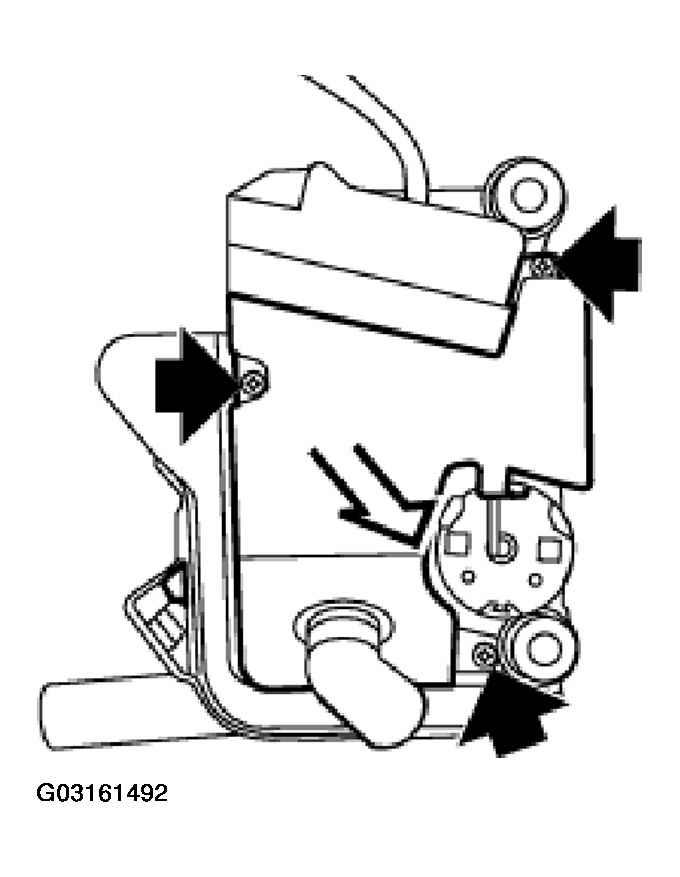

Fig 3: Pulling Out Combustion Air Blower

Courtesy of BMW OF NORTH AMERICA, INC.
