64 12 500 Removing and installing/replacing complete heater (Thermo Top S)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left wheel.

Remove trim panel from front left wheelhouse.

CAUTION: Allow engine to cool down.

Unfasten plug connection.

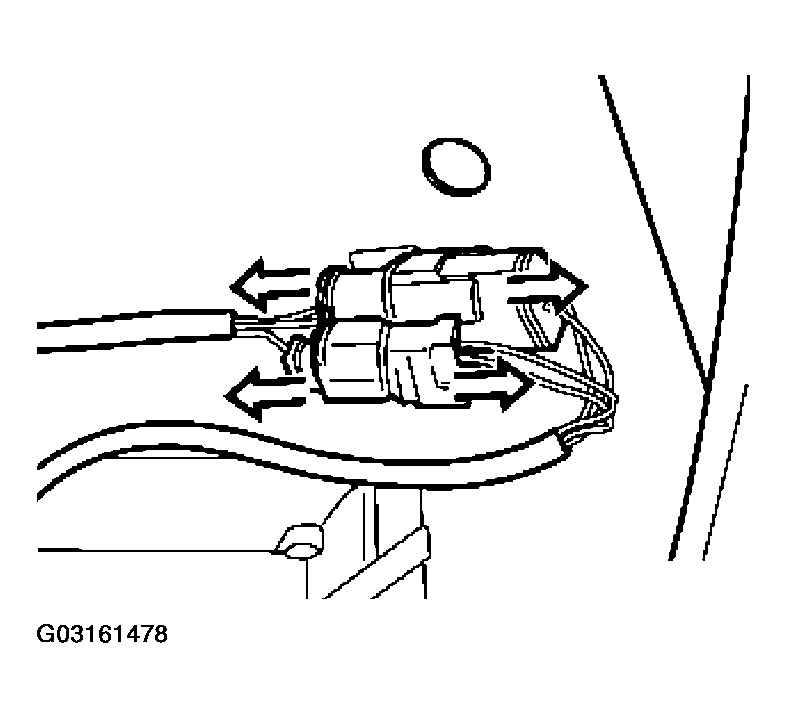

Fig 1: Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Close off supply and return hose as well as fuel hose with hose clips. Release hose clips (1) and disconnect hoses. Release screws (2) and remove heater.

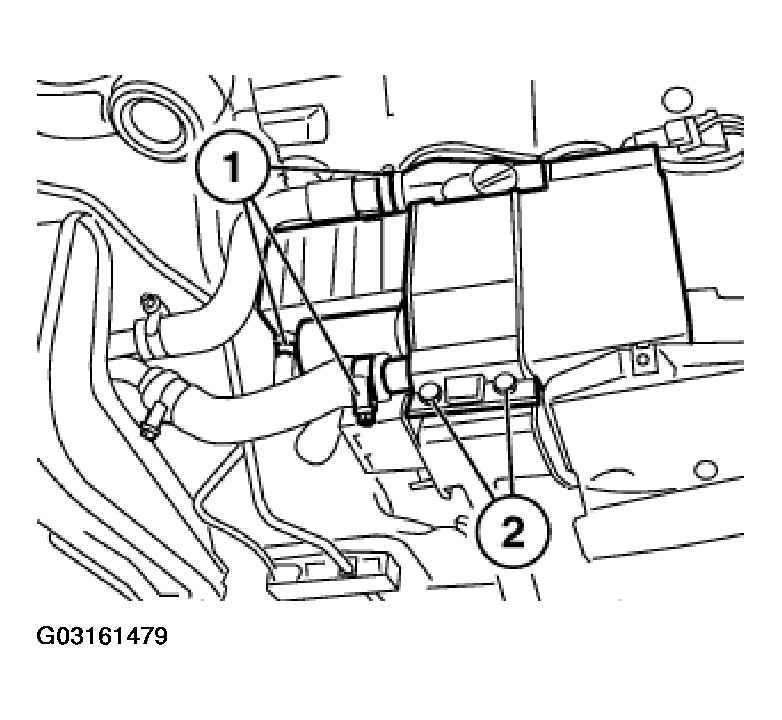

Fig 2: Disconnecting Hoses & Removing Heater

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing ring and ensure it is correctly seated.

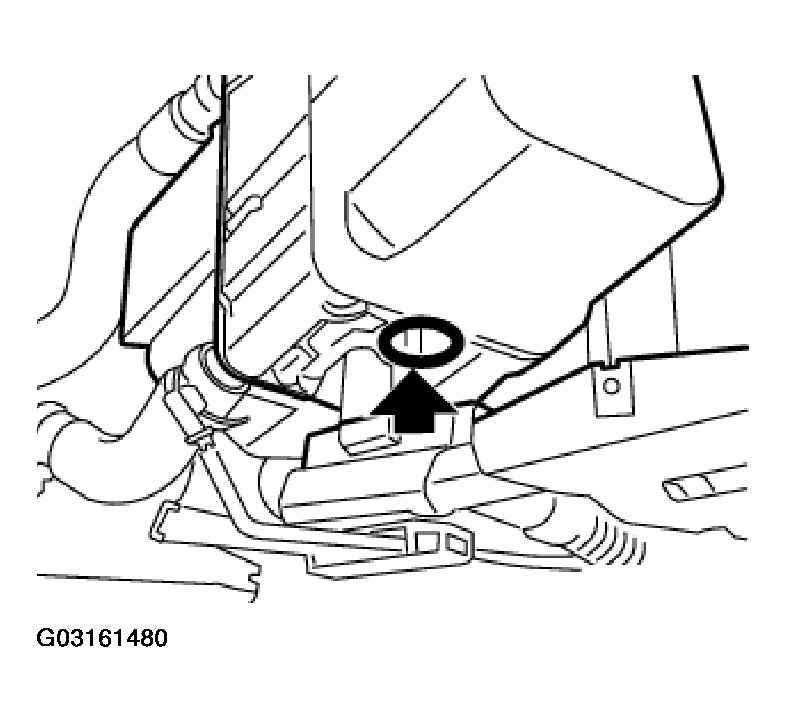

Fig 3: Replacing Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure that bracket (1) rests in groove (2).

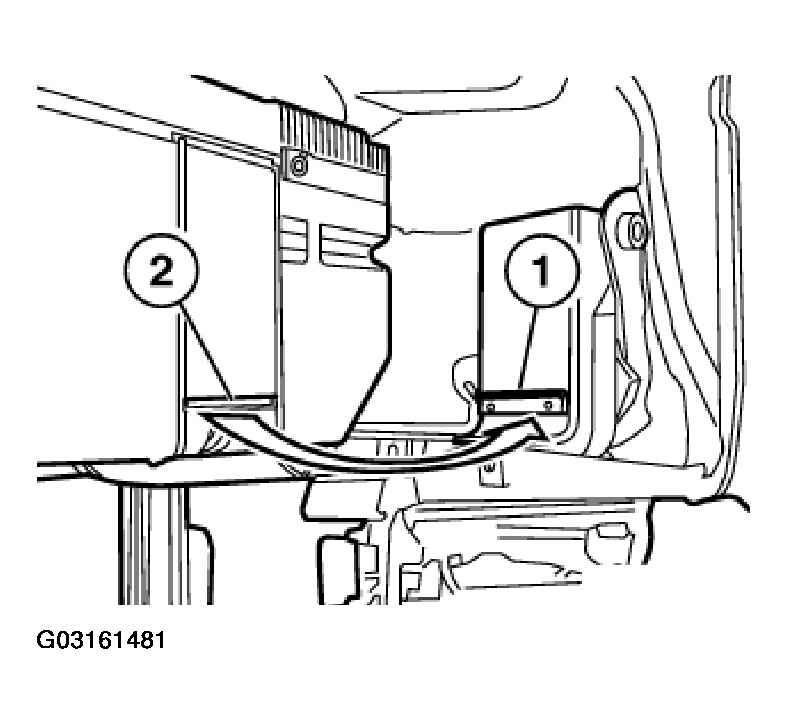

Fig 4: Installing Bracket Into Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Bleed independent heating unit, refer to 64 12... BLEEDING INDEPENDANT HEATING (THERMO TOP S) .
