64 12 520 Removing and installing/replacing control unit with heat exchanger (Thermo Top S)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove Combustion Air Blower Unit

Remove complete heater, refer to 64 12 500 REMOVING AND INSTALLING/REPLACING COMPLETE HEATER (THERMO TOP S) .

Remove burner insert, refer to 64 12 535 REMOVING AND INSTALLING/REPLACING BURNER INSERT (THERMO TOP S) .

Release screws and remove combustion air blower unit.

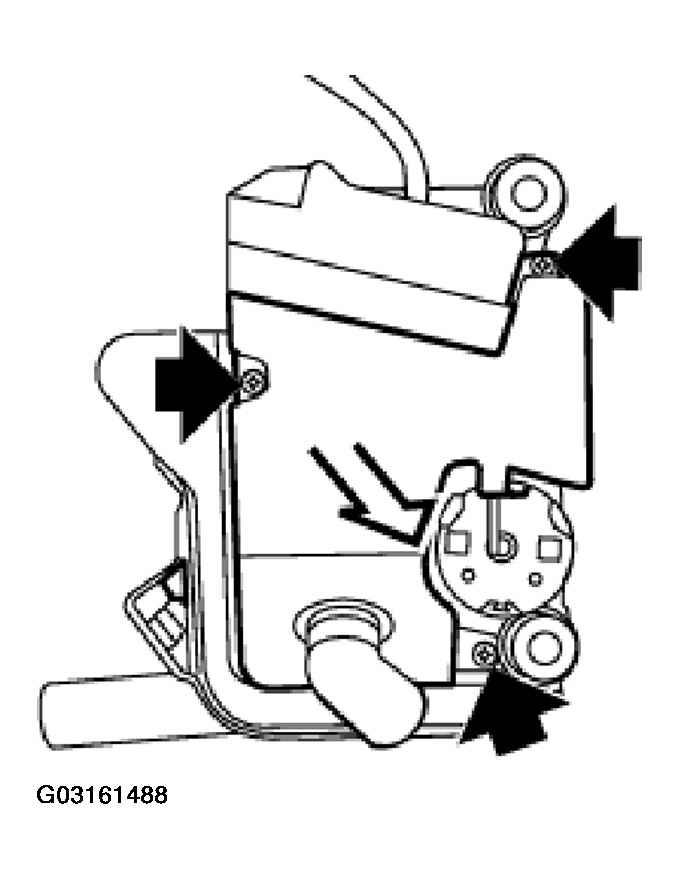

Fig 1: Removing Combustion Air Blower Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, refer to 64 12 8AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - 5-SERIES .

Installation:

Replace sealing rings and ensure they are correctly seated.

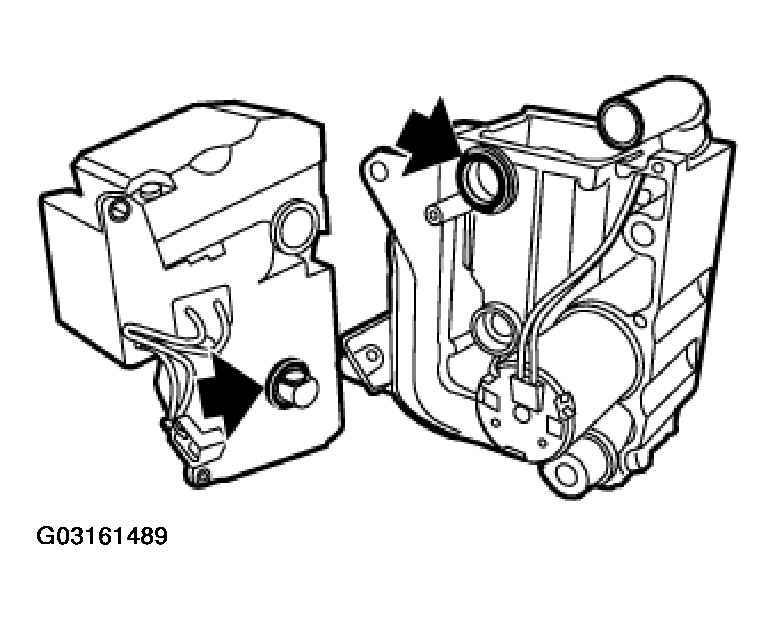

Fig 2: Replacing Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove control unit with heat exchanger.

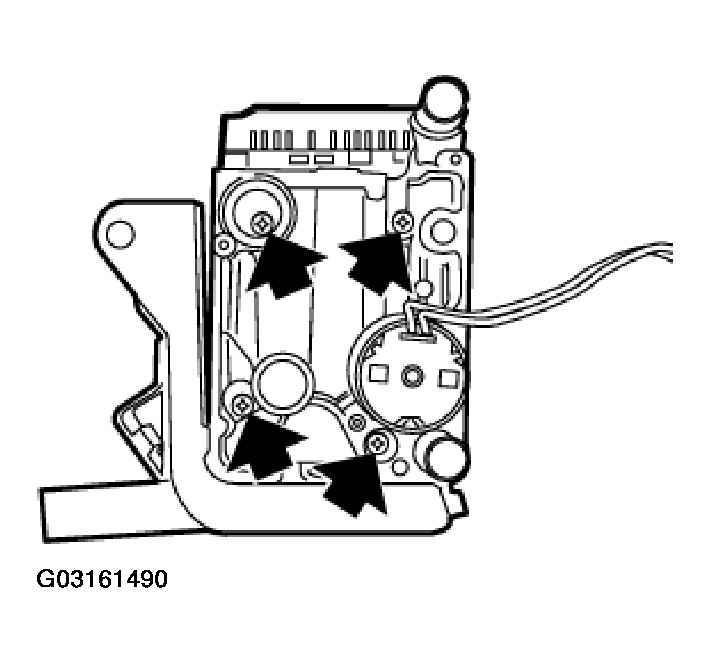

Fig 3: Removing Control Unit With Heat Exchanger

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, refer to 64 12 10AZ in HEATING AND AIR CONDITIONING - TIGHTENING TORQUES - 5-SERIES .

Installation:

Replace sealing rings and ensure they are correctly seated.

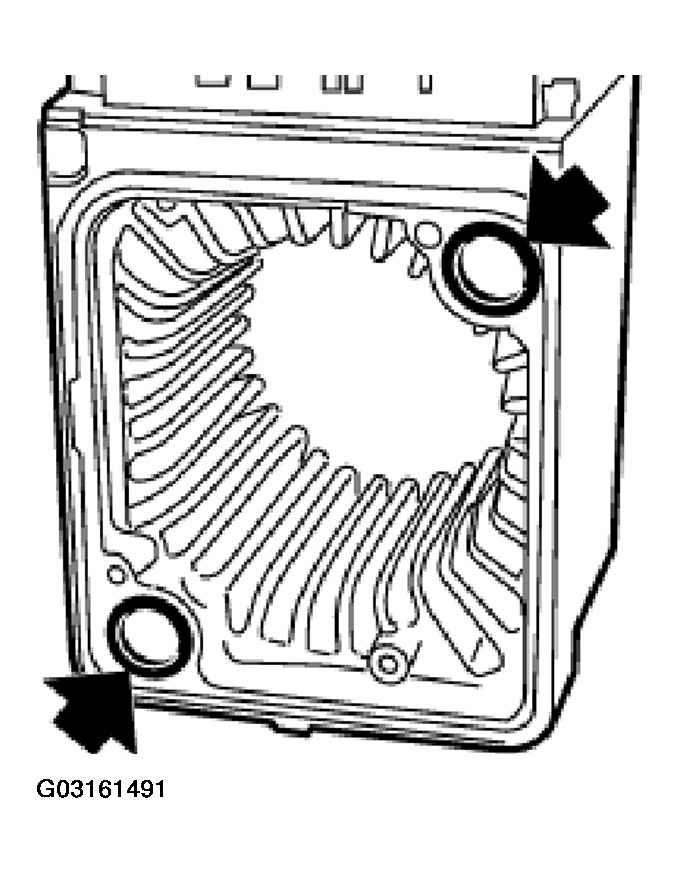

Fig 4: Installing Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.
