63 12 950 Replace one bracket for headlight mount

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete headlight, refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT .

Release screws and remove holder for headlight mounting.

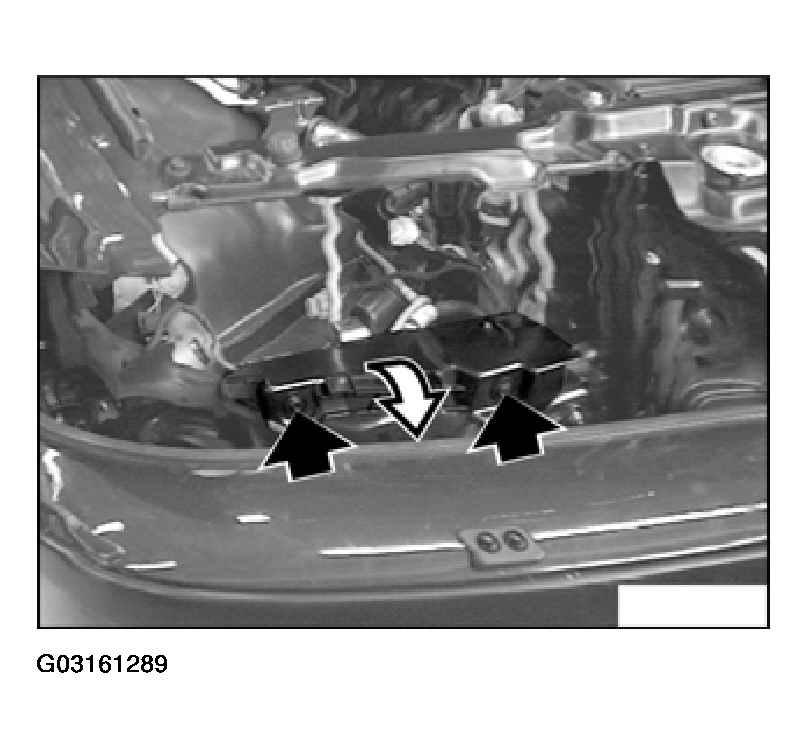

Fig 1: Removing Holder For Headlight Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install holder for headlight mounting, tighten screws until hand-tight.

Install headlight and adjust gap between headlight and bumper, gap measurement (A) approx. 5 mm.

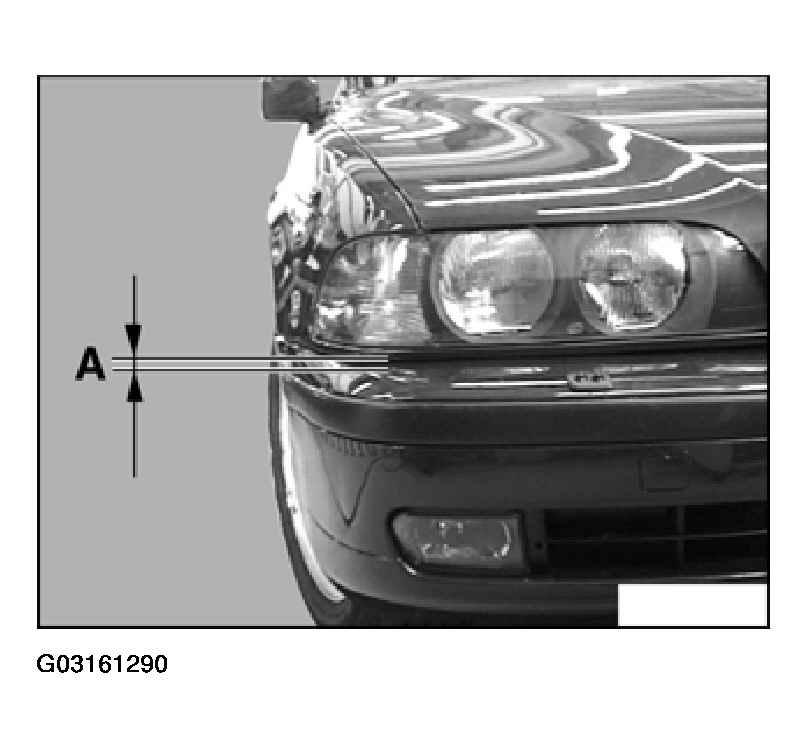

Fig 2: Identifying Gap "A" Between Headlight And Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Remove headlight again.

Tighten down screws on holder for headlight mounting.

Reinstall headlight.

Adjust headlights, refer to 63 10 004 ADJUSTING HEADLIGHTS .
