63 12 001 Removing and installing/replacing left headlight

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

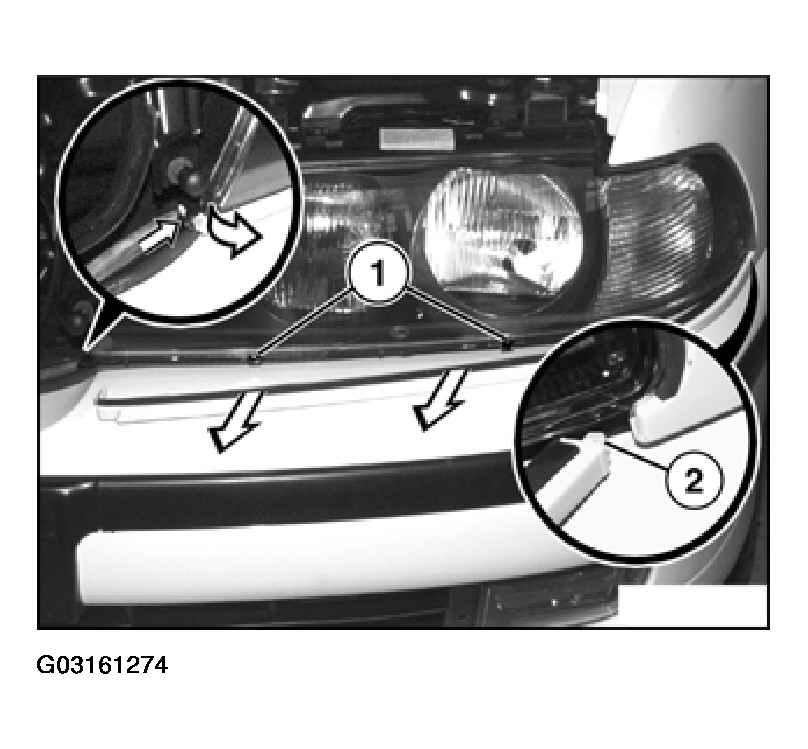

Unclip inner trim and press downwards out of headlamp holders (1).

Feed hook (2) out of outer trim and remove trim.

Fig 1: Removing Headlight Trim

G03161274

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

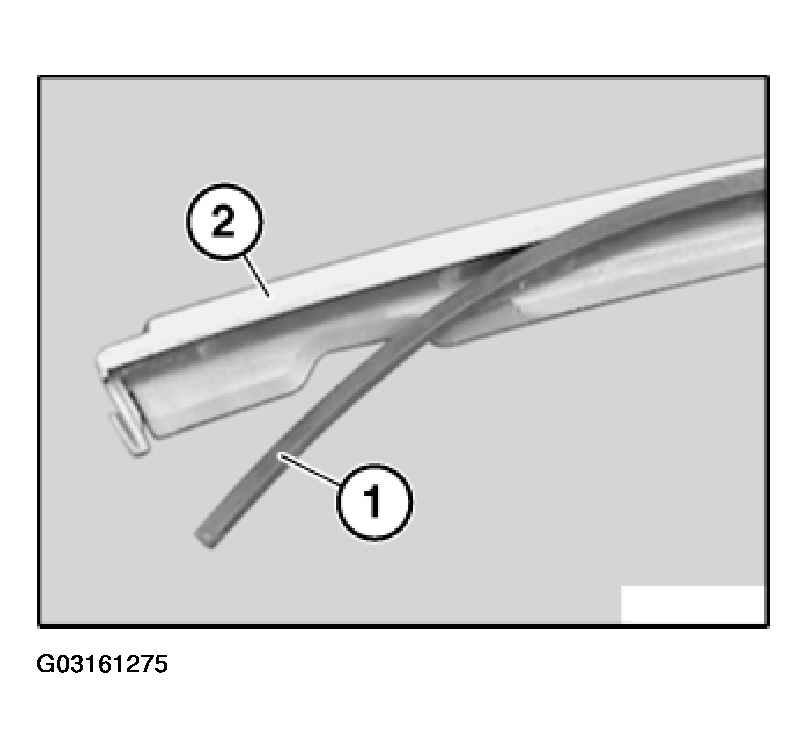

Make sure rubber seal (1) is correctly seated.

Mount trim (2) on installed headlamp.

Fig 2: Installing Headlight Trim

G03161275

Courtesy of BMW OF NORTH AMERICA, INC.

Up to 09/2000:

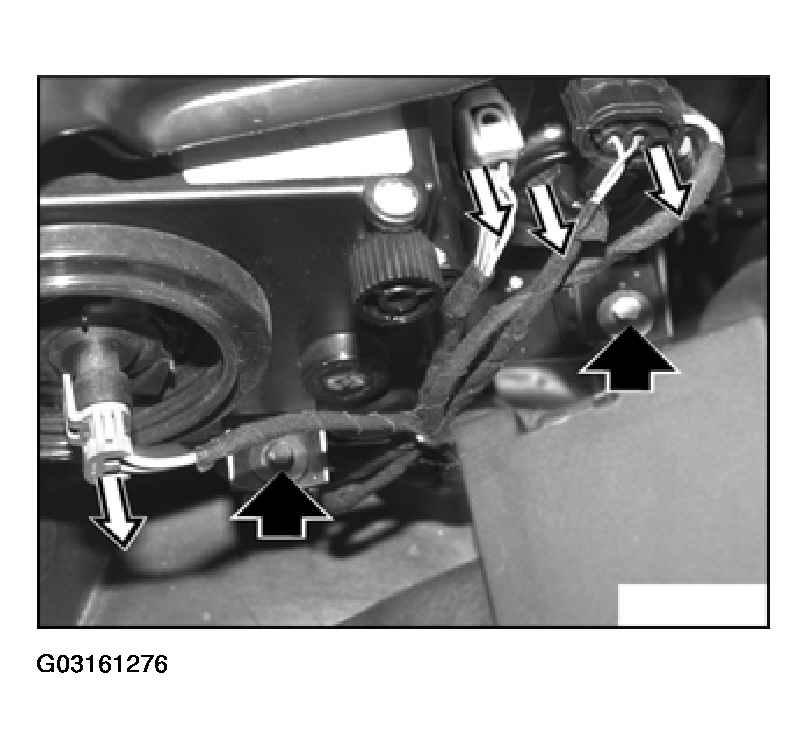

Disconnect all headlamp plug connections.

Unfasten screws.

Fig 3: Disconnecting Headlamp Plug Connections (Up To 09/2000)

G03161276

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

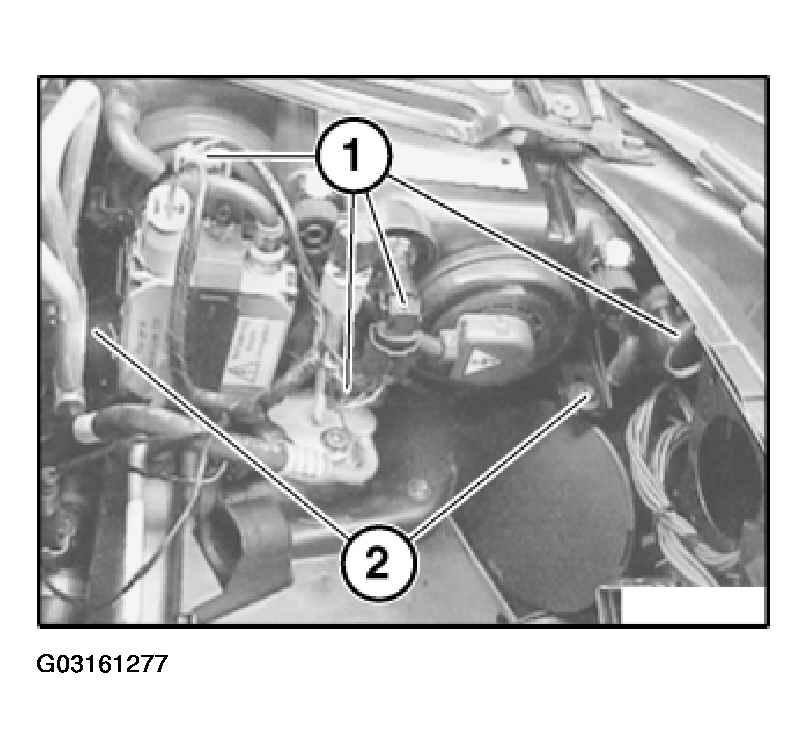

Disconnect all headlamp plug connections (1).

Release screws (2).

Fig 4: Disconnecting Headlamp Plug Connections (From 09/2000)

G03161277

Courtesy of BMW OF NORTH AMERICA, INC.

All:

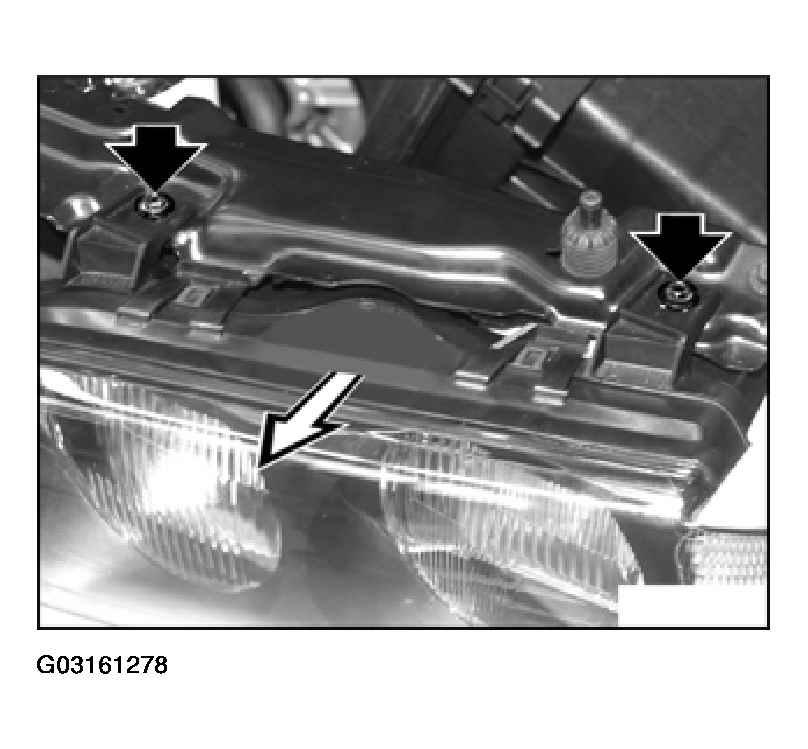

Unfasten screws and pull headlight forwards to remove.

Fig 5: Removing Headlight

G03161278

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

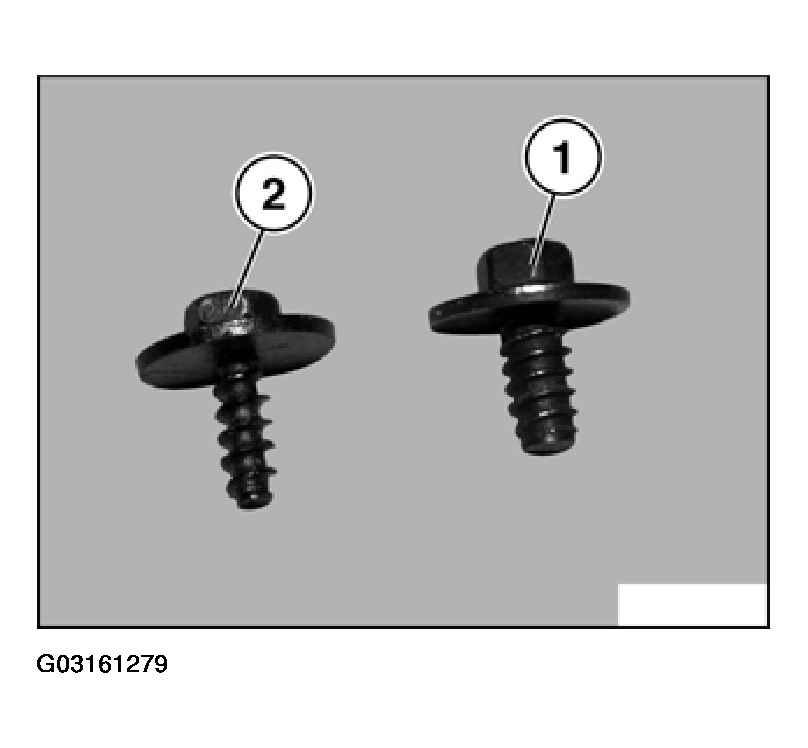

Screws (1) with large diameter: at bottom.

Screws (2) with small diameter: at top.

Fig 6: Identifying Headlight Mounting Screws

G03161279

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust protrusion of hood/bonnet over headlamp glass lens.

Adjust headlights, refer to 63 10 004 ADJUSTING HEADLIGHTS .
