63 10 004 Adjusting headlights
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Note test requirements for headlight vertical aim adjustment, refer to 63 10... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT .

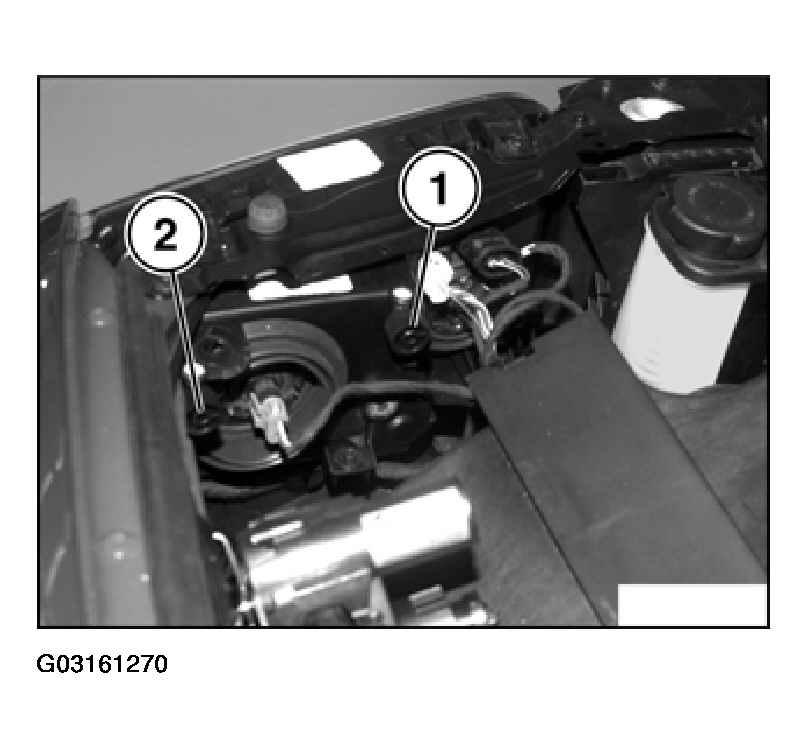

Adjust headlights by turning adjusting screws (1) and (2).
A definite allocation of adjusting screws is not possible.
- Adjusting Screw For Vertical Aiming
- Adjusting Screw For Lateral Aiming
