63 12 350 Replacing adjusting elements for left headlight (up to 09/2000)
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Remove insert from headlight housing, refer to 67 16 010 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT VERTICAL AIM ADJUSTER (UP TO 09/2000) .

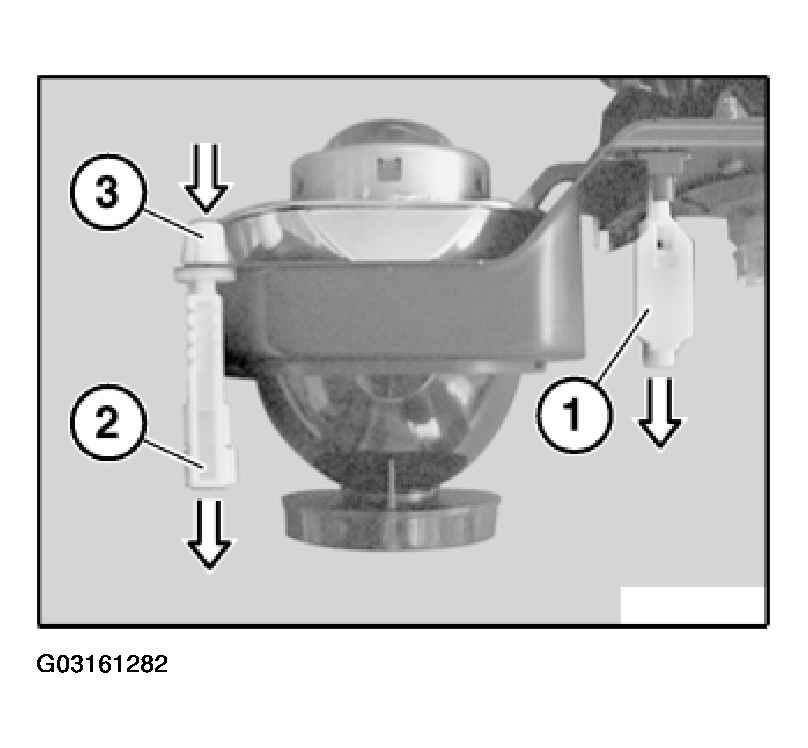

Unclip adjusting elements (1) and (2) in direction of arrow.
If necessary, unclip mounting (3) in direction of arrow.
Installation:
Adjust headlights, refer to 63 10 004 ADJUSTING HEADLIGHTS .
