63 17 010 Replace reflector for foglights

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove foglights

refer to 63 17 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FOG LAMP INSERT (COMPLETE)

Remove light bulb for foglights,

refer to 63 99 201 REPLACING HALOGEN BULB FOR LEFT OR RIGHT FRONT FOG LAMP

Unclip bracket and remove reflector.

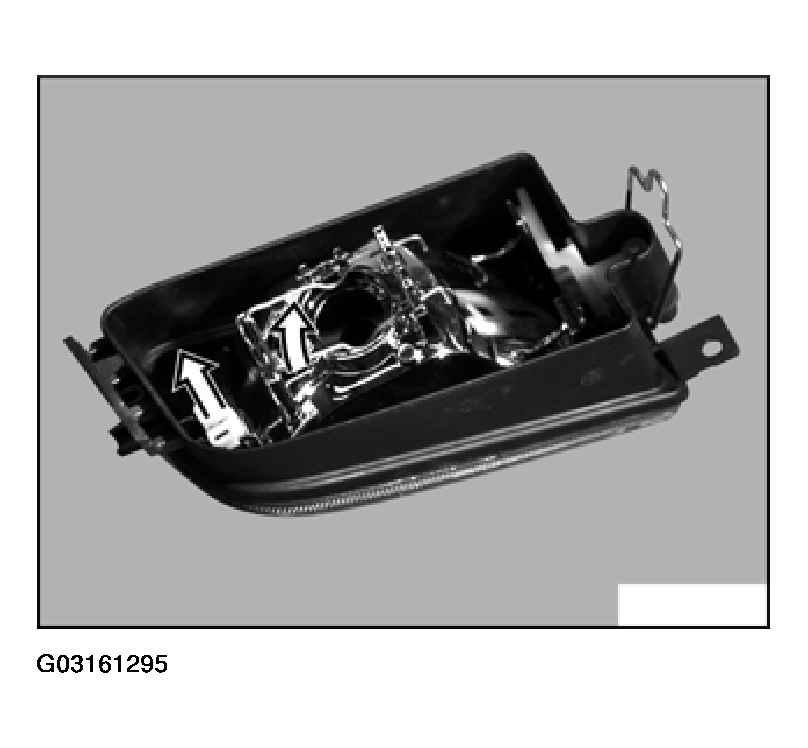

Fig 1: Replacing Reflector
G03161295Courtesy of BMW OF NORTH AMERICA, INC.
