63 99 201 Replacing halogen bulb for left or right front fog lamp

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Remove fog lamp, refer to 63 17 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FOG LAMP INSERT (COMPLETE) .

Turn bulb holder (1) in direction of arrow and remove.

Remove bulb inside from bulb holder (1).

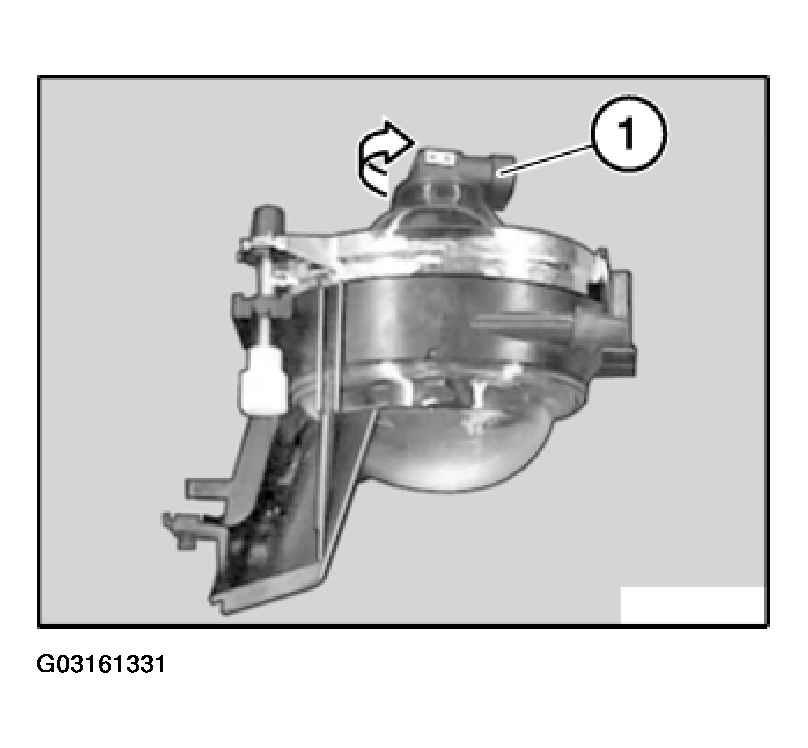

Fig 1: Removing Fog Lamp Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb, refer to LIGHTS - TECHNICAL DATA .
