63 17 000 Removing and installing/replacing left or right fog lamp insert (complete)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove grill, refer to appropriate procedure in 51 11 000 REMOVING AND INSTALLING COMPLETE FRONT BUMPER .

Release screws (1).

Remove trim (2) and fog lamp (3) towards front.

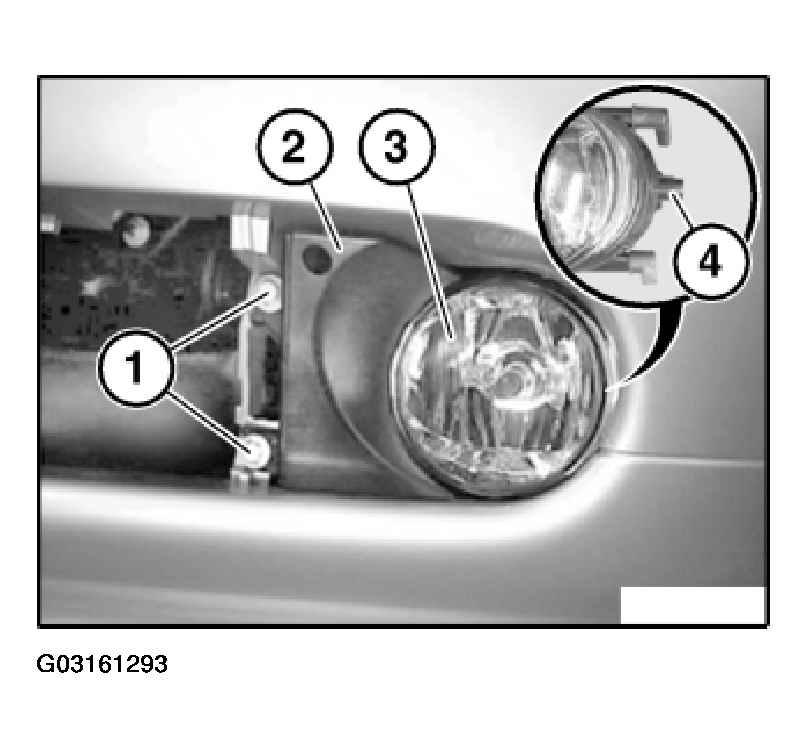

Fig 1: Removing Trim And Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath.

Installation:

Ensure guide pin (4) is correctly seated.

Installation:

Ensure both guide lugs (1) of trim (2) are correctly seated in mounts (3) of fog lamp (4).

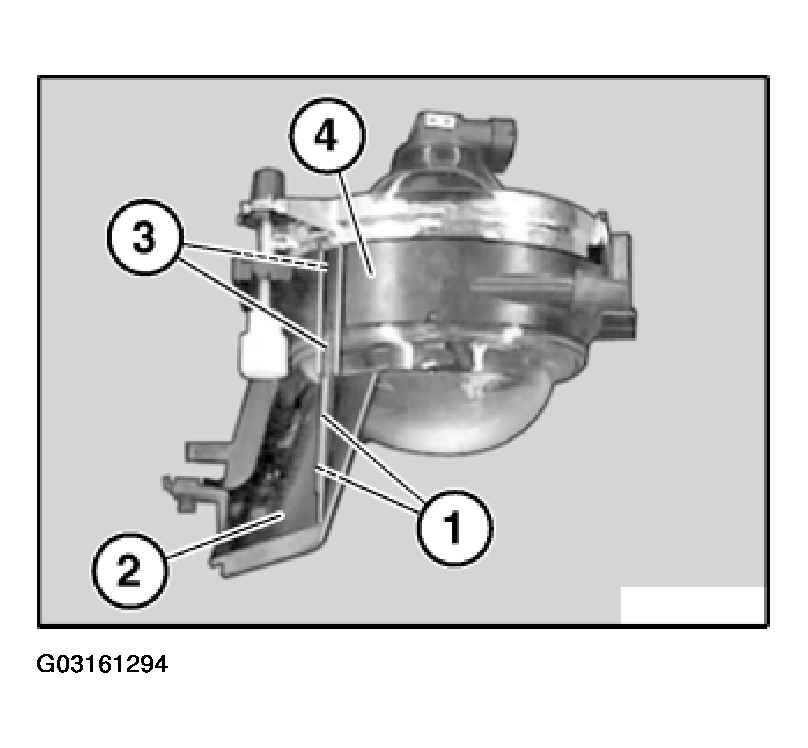

Fig 2: Installing Both Guide Lugs Of Trim In Mounts Of Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Replacement:

Adjust front fog lamps, refer to 63 10 014 ADJUSTING FOG LAMPS .
