63 10 014 Adjusting fog lamps

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Observe test preconditions for adjusting headlights.

Up to 08/2000:

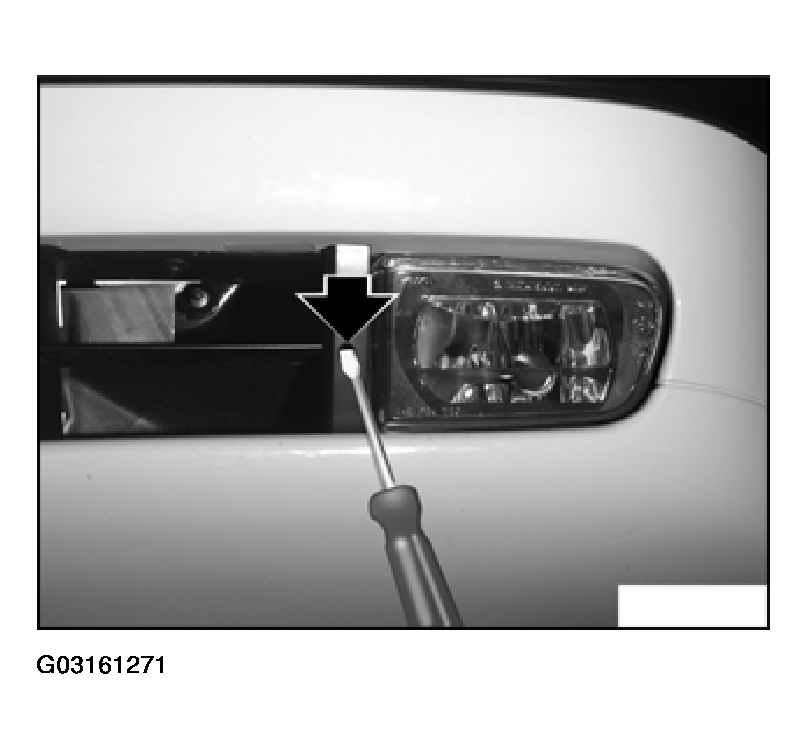

Adjust fog lamp at adjusting screw through opening in grating.

Fig 1: Adjusting Fog Lamp At Adjusting Screw Through Opening In Grating (Up To 08/2000)

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2000:

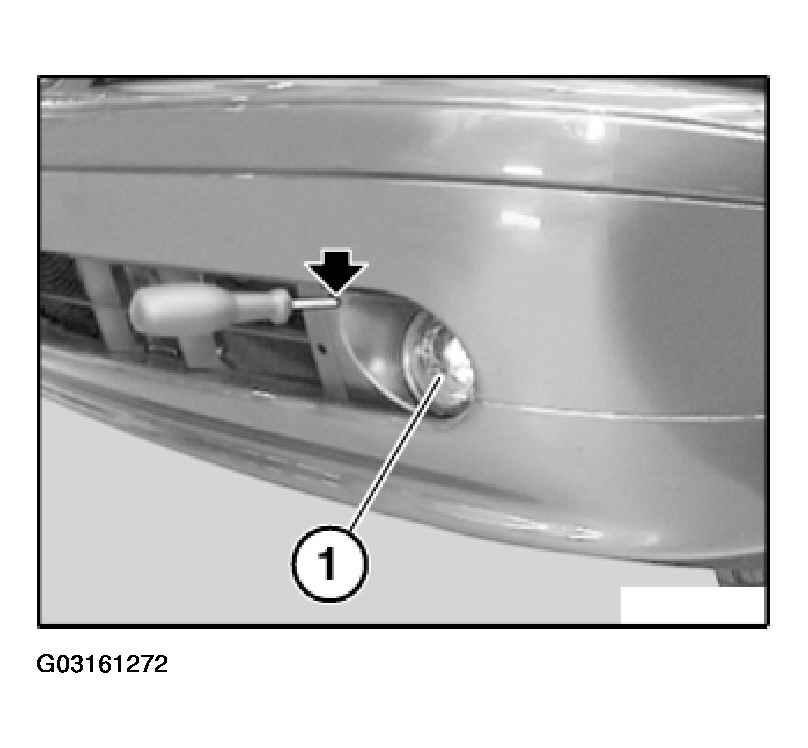

Adjust fog lamp (1) at adjusting screw behind trim.

Fig 2: Adjusting Fog Lamp At Adjusting Screw Behind Trim (From 09/2000)

Courtesy of BMW OF NORTH AMERICA, INC.

M Aerodynamics Package:

If necessary, unclip trim. Refer to 63 17 030 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FOG LAMP INSERT (M AERODYNAMICS PACKAGE) .

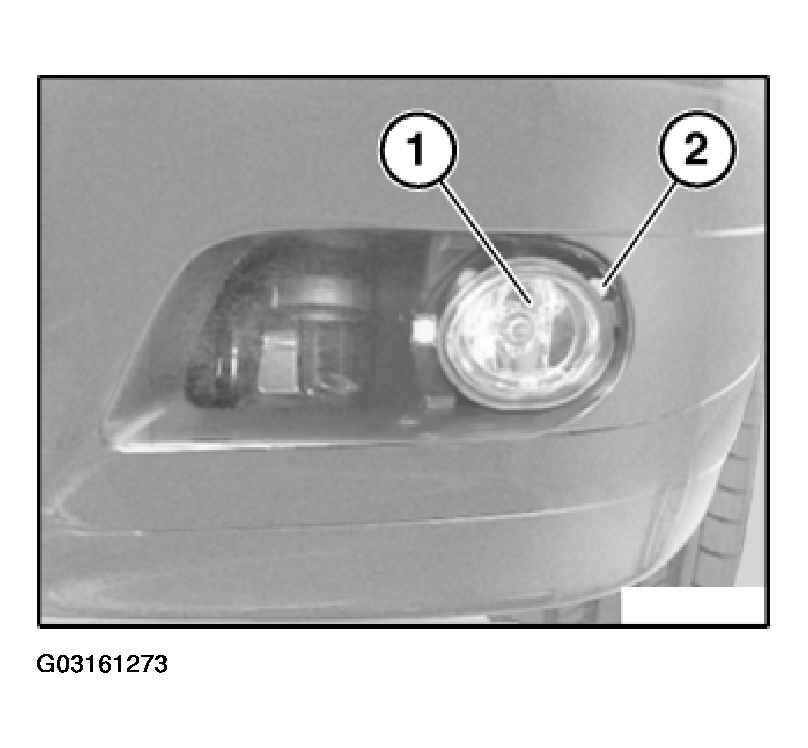

Adjust fog lamp (1) at adjusting screw (2).

Fig 3: Adjusting Fog Lamp At Adjusting Screw (M Aerodynamics Package)

Courtesy of BMW OF NORTH AMERICA, INC.
