52 13 015 Removing and installing/replacing controls on left/right front seat (normal/manual)

Remove cover,

refer to 52 13 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL)

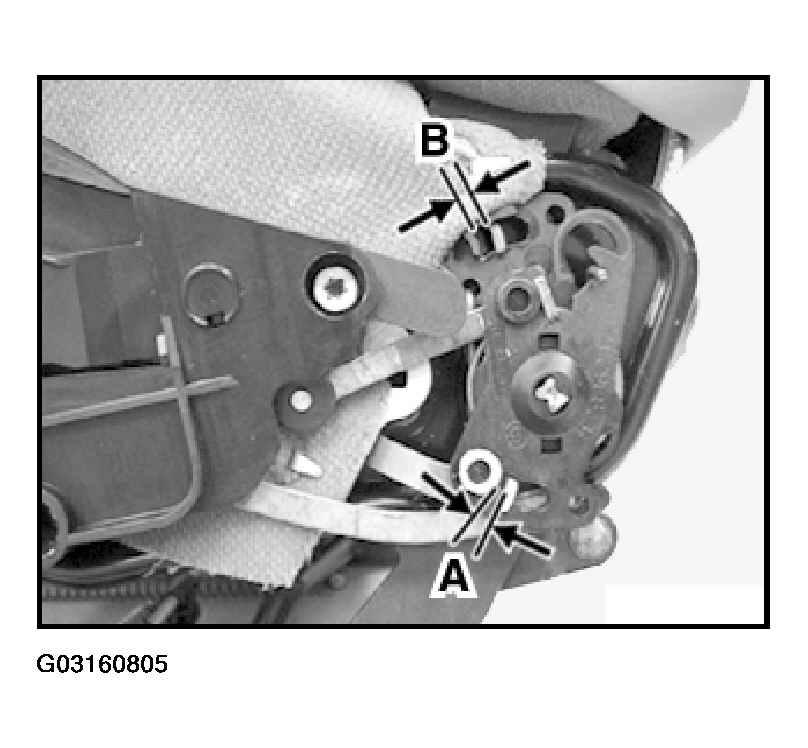

Check Backrest Clearance:

Seat height (SHV) and backrest adjustment (LNV) must be correctly locked. To do this, actuate lever and front seat once only.

1. (A) = 0.5-4.1 mm (LNV)
2. (B) = 0.5-5.6 mm (SHV)

Fig 1: Checking Backrest Clearance

Courtesy of BMW OF NORTH AMERICA, INC.

Rework is not permitted!

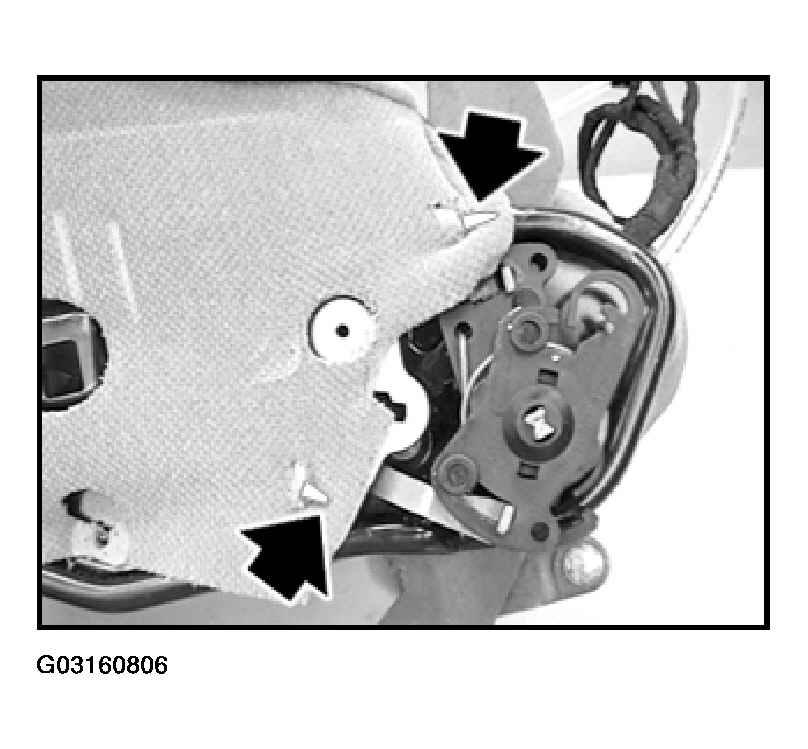

IMPORTANT: Do not fold or extend cover beyond edge (function error).

Fig 2: Identifying Full Extension Of Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Remove Actuating Unit:

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

Disconnect Bowden cable for longitudinal adjustment from controls, refer to 52 13 014 REPLACING BOWDEN CABLE FOR LONGITUDINAL ADJUSTMENT ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

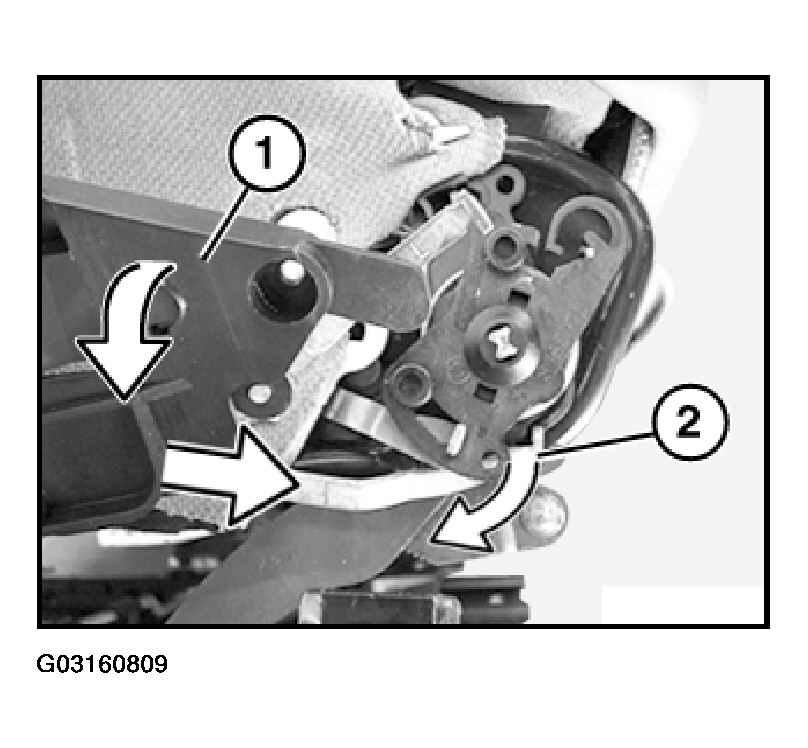

Press plate (1) forwards and slide actuating rod (2) upwards out of backrest adjustment.

Fig 3: Sliding Actuating Rod Out Of Backrest Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

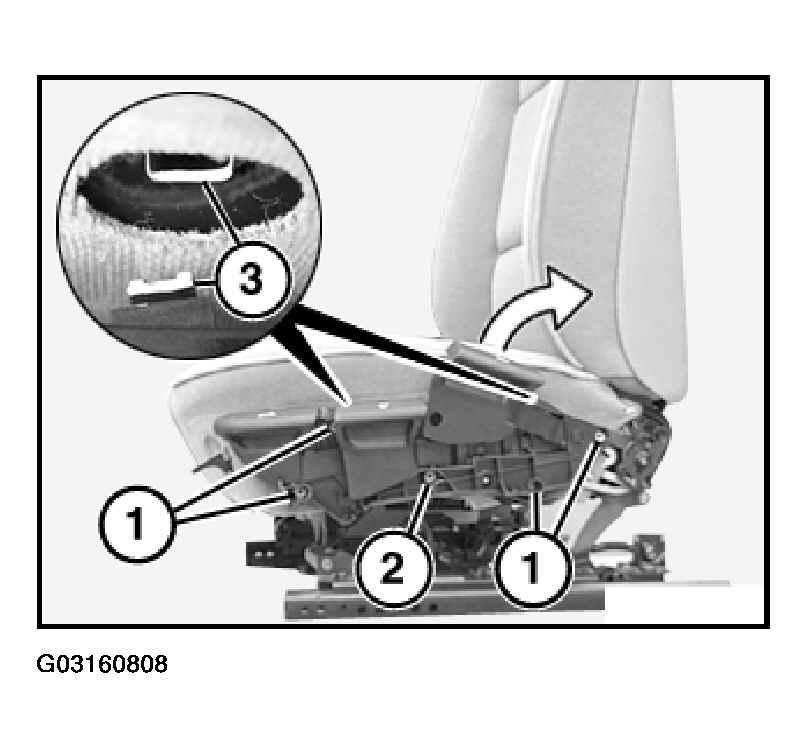

Slide backrest adjustment lever.

Remove screws (1 and 2).

Slide controls downwards out of guides (3).

Fig 4: Removing Backrest Controls

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If the tightening torque is not reached (screw rotates), use repair screws.

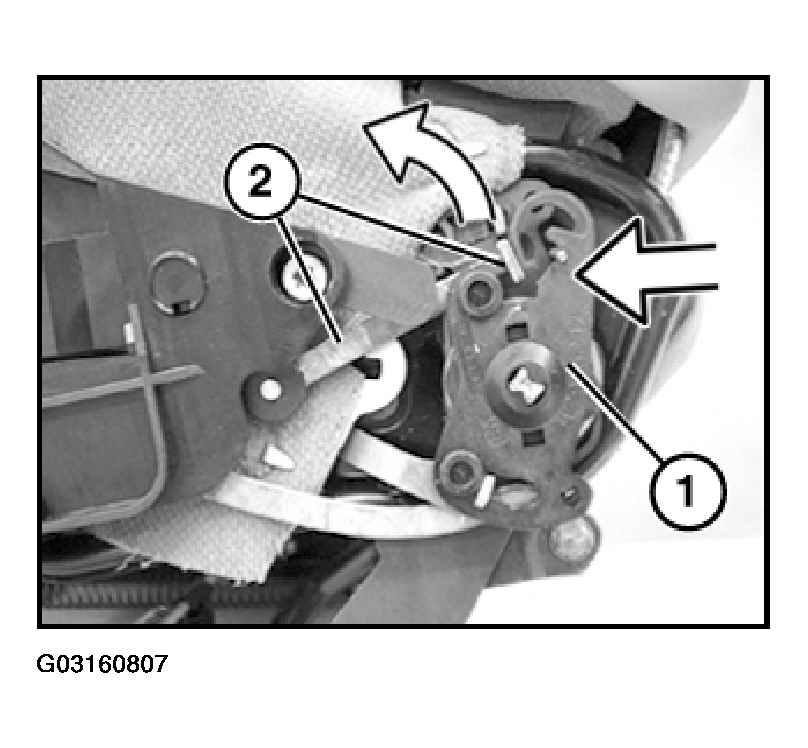

Slide actuating unit (1) backwards and disconnect actuating rod (2) for seat height adjustment.

Fig 5: Removing Actuating Rod For Seat Height Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check backrest clearance.
