52 13 040 Removing and installing/replacing outer cover on left or right front seat backrest (normal/manual)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

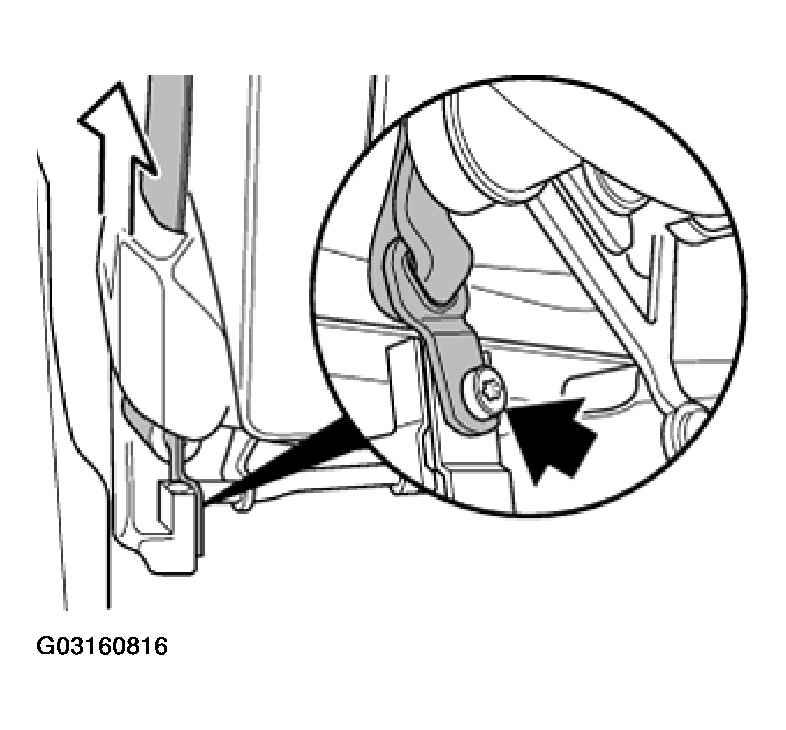

Unfasten seatbelt screw.

Tightening torque - 31 N.m.

Fig 1: Removing Seatbelt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

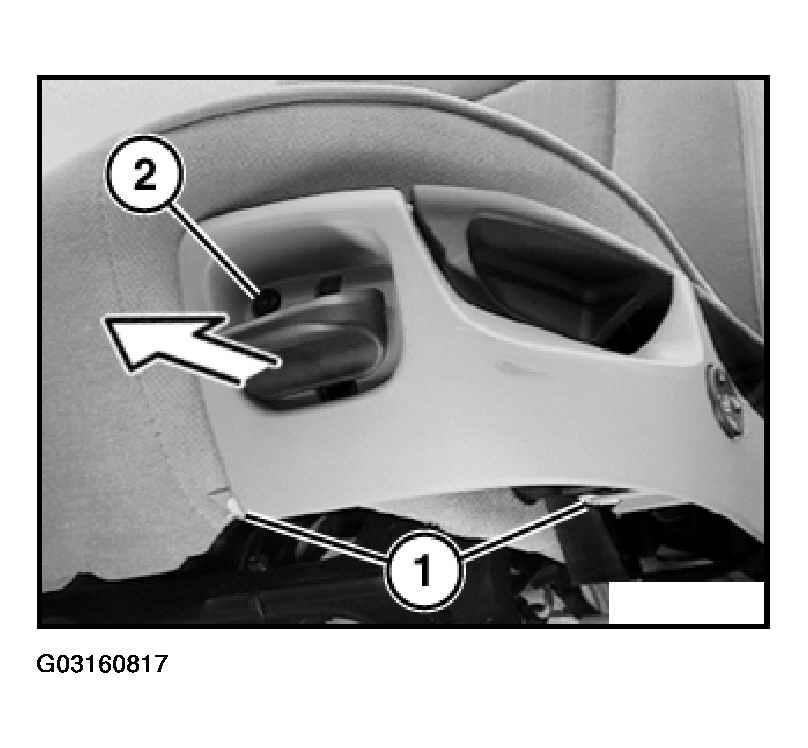

Unfasten clips (1) (cut off or knock off clip head). Unscrew bolt (2). Pull the lever forward to remove.

Fig 2: Removing Front Seat Backrest Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

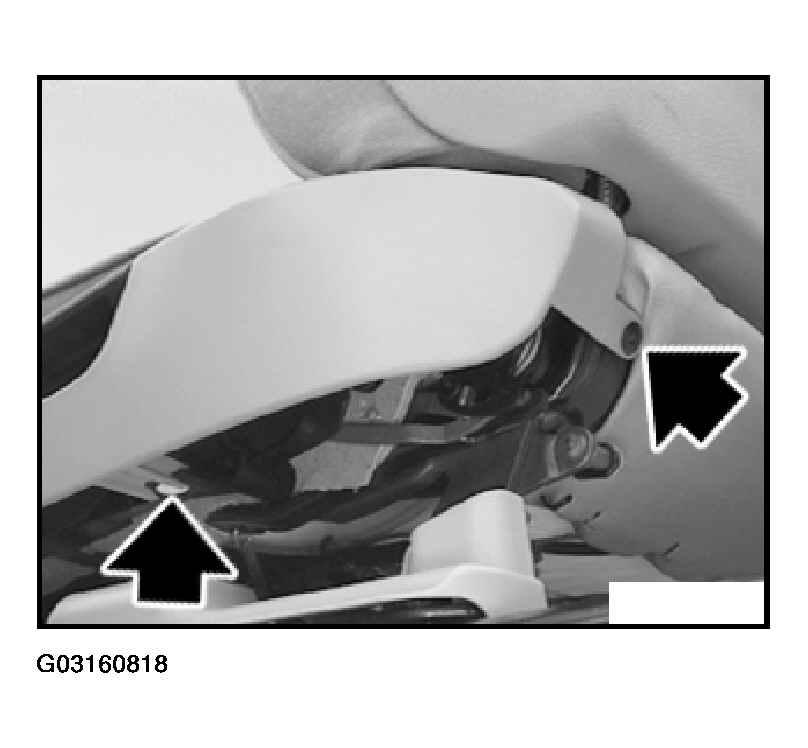

Loosen rear clips.

Fig 3: Loosening Rear Seat Backrest Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out the rear plate and remove it over the operating levers.

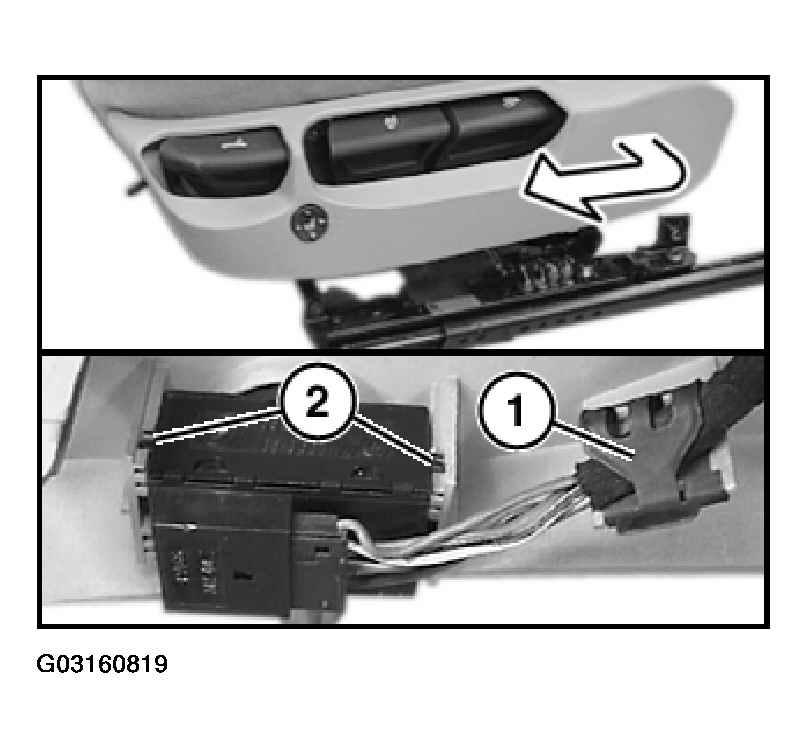

Model With Lumbar Supports:

Lift the cable out of the retainer (1) if necessary.

If necessary press detents (2) down and press upwards to remove the switch.

Fig 4: Removing Seat Backrest Cover Clips (Model With Lumbar Supports)

Courtesy of BMW OF NORTH AMERICA, INC.
