52 13 014 Replacing Bowden cable for longitudinal adjustment on left or right front seat (normal/manual)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

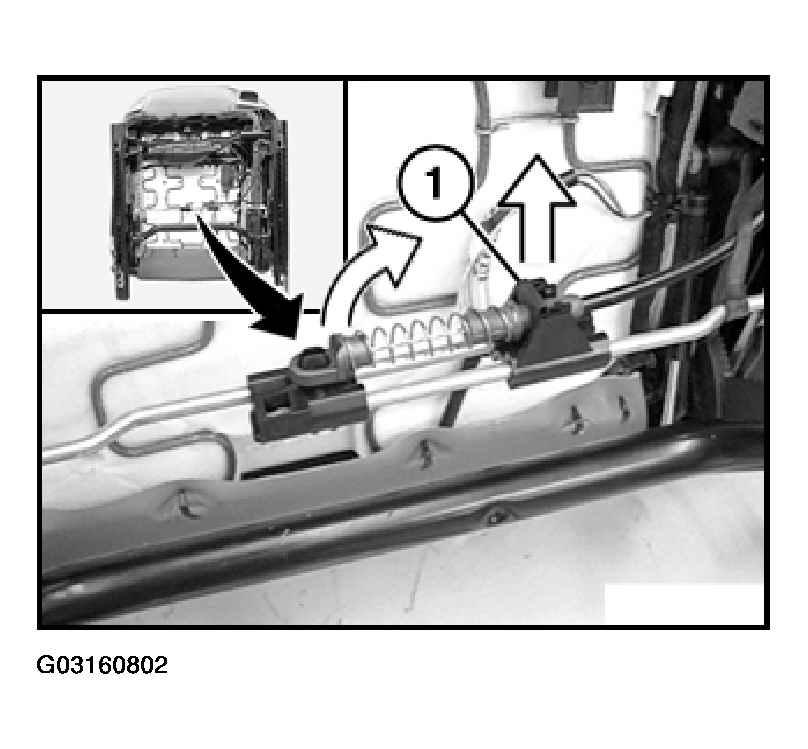

Remove clips (1) and pull Bowden cable forwards to remove.

Fig 1: Removing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

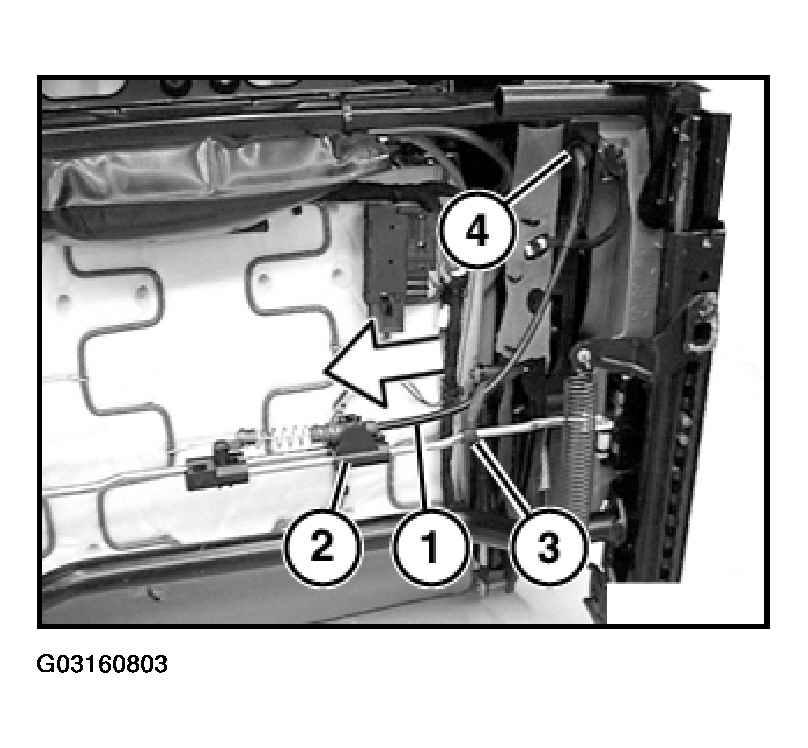

Slide Bowden cable (1) out of guide (2). Twist Bowden cable through 90° and lift out of support (4).

Fig 2: Removing Bowden Cable From Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Route Bowden cable (1) behind rubber tape (3).

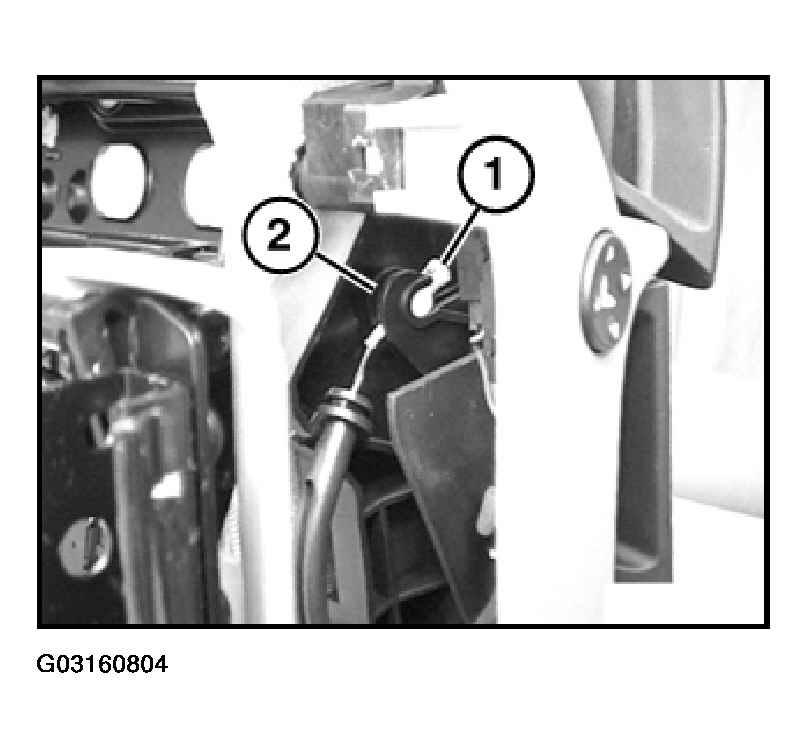

Withdraw Bowden cable nipple (1) from support (2) and remove Bowden cable for longitudinal adjustment.

Fig 3: Removing Bowden Cable For Longitudinal Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust Bowden cable for longitudinal adjustment, refer to 52 13 013 ADJUSTING BOWDEN CABLE FOR LONGITUDINAL ADJUSTMENT OF LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .
