51 34 191 Replacing left or right fixed door window in rear window frame

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For gluing the door window, glues for cold and hot processing are permitted.

Remove rear left or right door window glass, refer to 51 34 171 REPLACING REAR LEFT OR RIGHT DOOR WINDOW .

Remove decorative strip on window frame of rear door (top) on left or right, refer to 51 34 380 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP ON REAR DOOR (TOP), LEFT OR RIGHT .

Remove cover (anti-trap protection) on door window frame (rear door) on inside left or right, refer to 51 34 160 REMOVING AND INSTALLING/REPLACING COVER (TRAPPING PROTECTION) ON DOOR WINDOW FRAME (REAR DOOR), INSIDE LEFT OR RIGHT .

Cold Processing:

Comply with instructions on gluing windows, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN .

Hot Processing:

Open rear end of aluminum membrane in cartridge before installing in cartridge oven.

Heat glue cartridges to 80°C for one hour in oven.

Comply with instructions on gluing windows, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN .

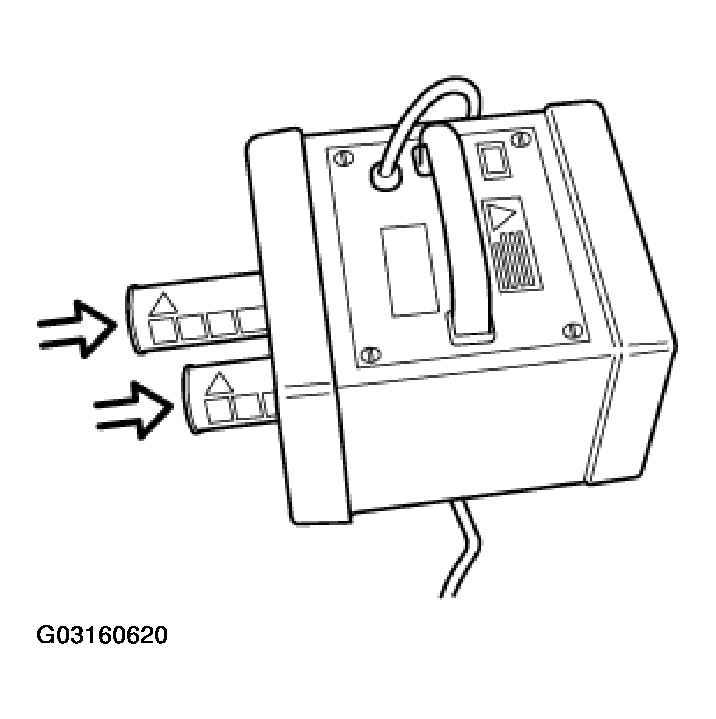

Fig 1: Heating Glue Cartridges

Courtesy of BMW OF NORTH AMERICA, INC.

Mask door window and body flange all round with fabric adhesive tape (1) (e.g. Tesa).

Fig 2: Masking Door Window And Body Flange

Courtesy of BMW OF NORTH AMERICA, INC.

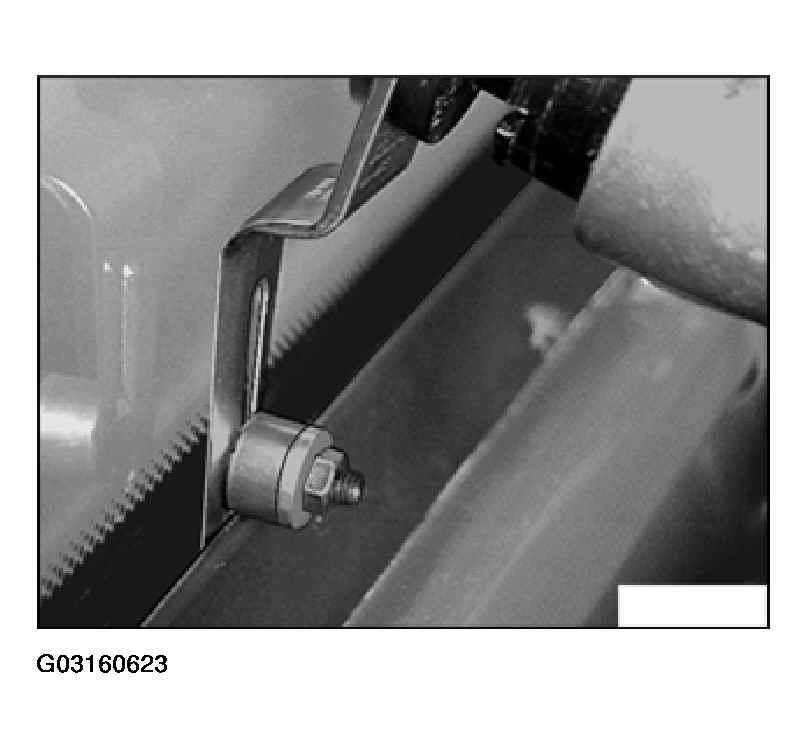

Fit straight blade with adjustable roller on tool and set dimension (X).

Dimension (X) = 16 mm

NOTE: If necessary, resharpen knife with machine running.

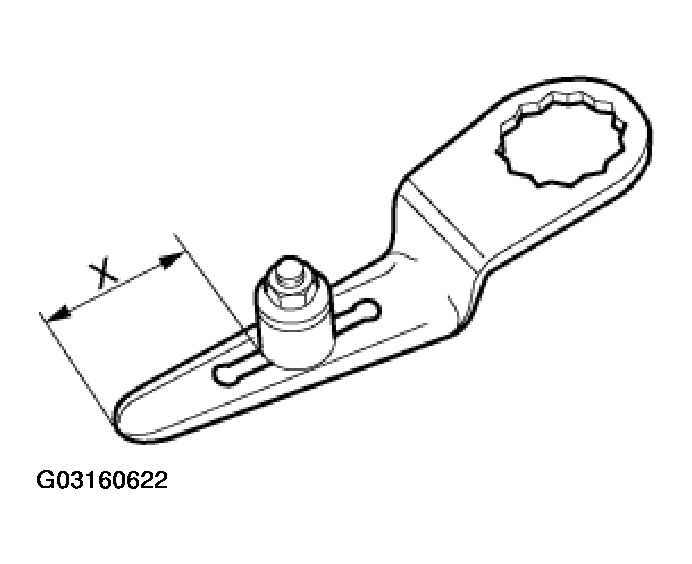

Fig 3: Fitting Straight Blade With Adjustable Roller On Tool And Set Dimension (X)

Courtesy of BMW OF NORTH AMERICA, INC.

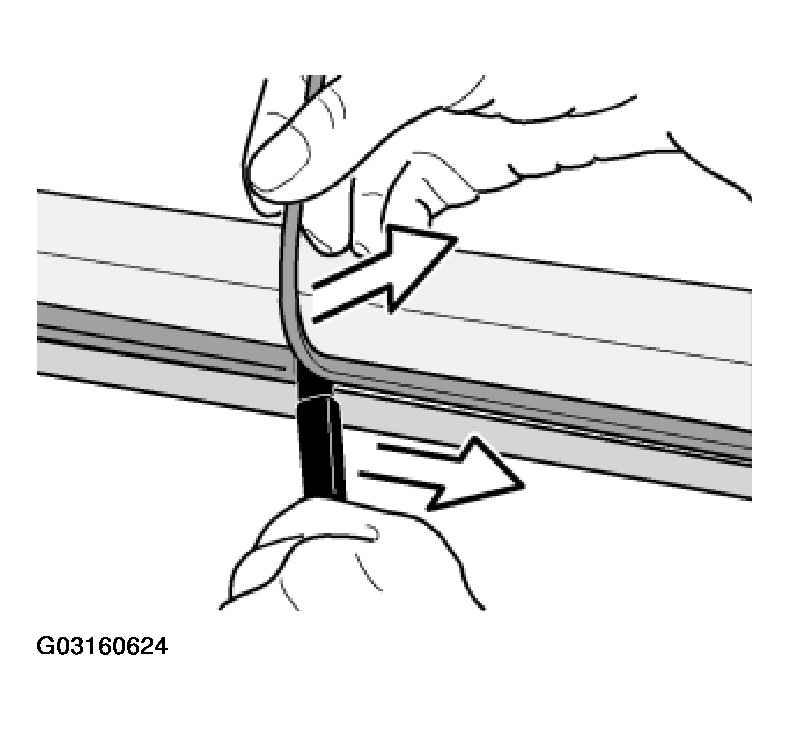

Carefully insert knife blade between body and door window.

Run handle of knife parallel to door window.

Pull door window outwards to remove.

Fig 4: Inserting Knife Blade Between Body And Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

Cut off old glue in body opening to a thickness of approx. 0.5 mm.

To avoid paintwork damage, carefully cut off glue residue with scalpel.

Remove glue tape all round. Clean body aperture with 2-propanol.

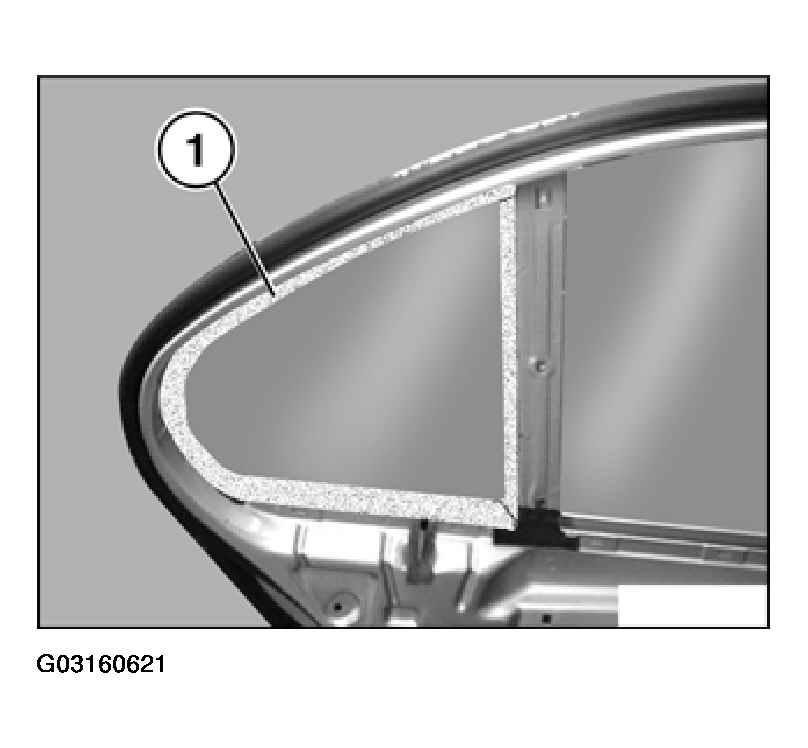

Fig 5: Cutting Off Old Glue In Body Opening

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: To provide long-term corrosion protection, always touch up damage to paintwork (scratches and large areas of damage), refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN .

CAUTION: The basic filler must have hardened!
Treat body around glued area with BMW-approved materials from repair kit, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN .

NOTE: Note ventilation time!

Only when reusing the door window: Remove frame (1).

Pull off fabric adhesive tape (2) all round and clean window with 2-Propanol.

Using a scalpel, carefully remove glue residue on door window to a thickness of approx. 0.5 mm.

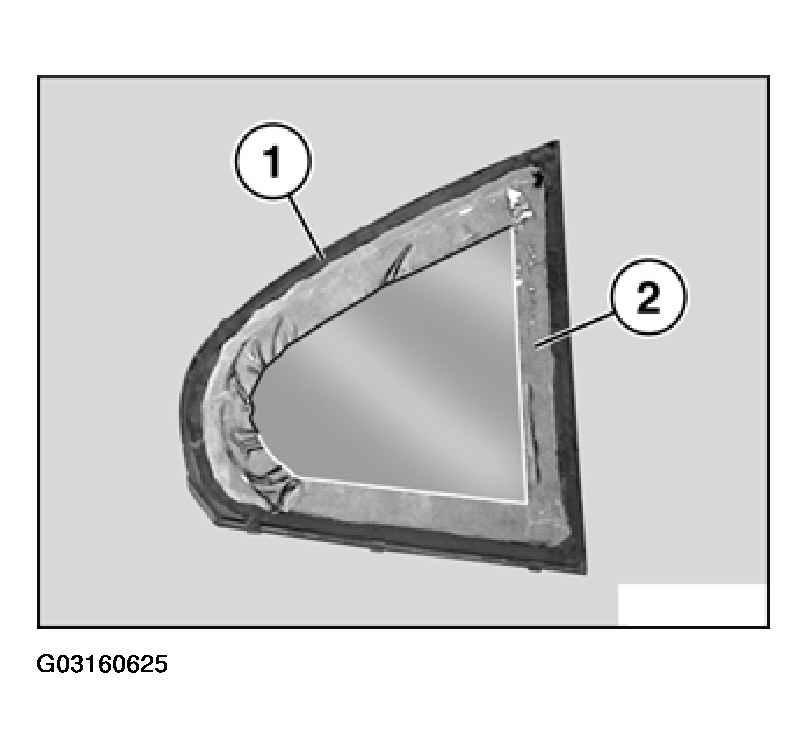

Fig 6: Pulling Off Fabric Adhesive Tape & Remove Glue Residue

Courtesy of BMW OF NORTH AMERICA, INC.

Treat door window around cemented area (2) with BMW-approved materials from repair kit, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN .

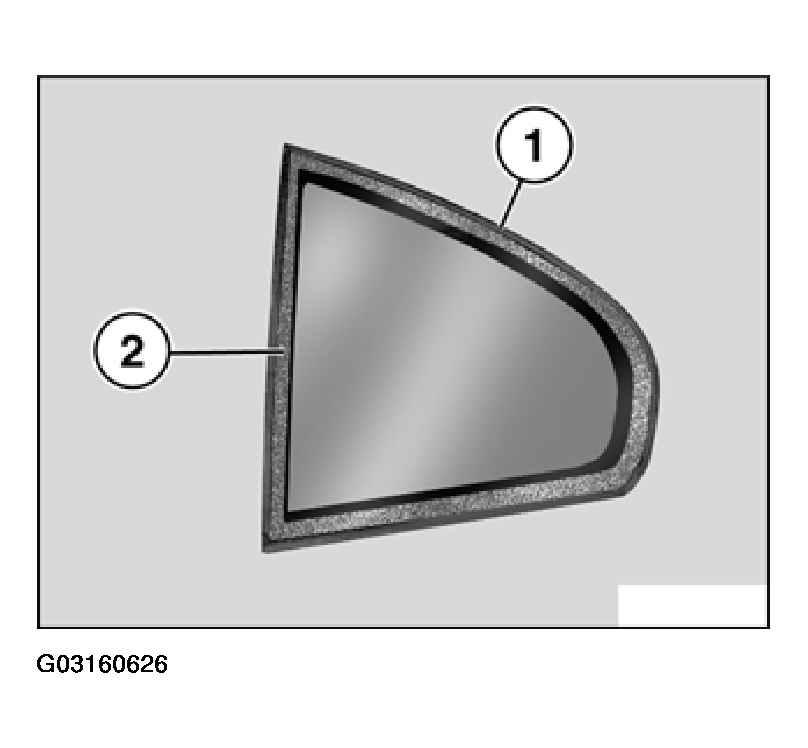

Fig 7: Treating Door Window & Fit New Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note ventilation time!

Fit new frame (1).

Cut standard nozzle to size.

Version without double glazing:

7 mm
15_-2 mm

Version with double glazing:

7 mm
9_-1 mm

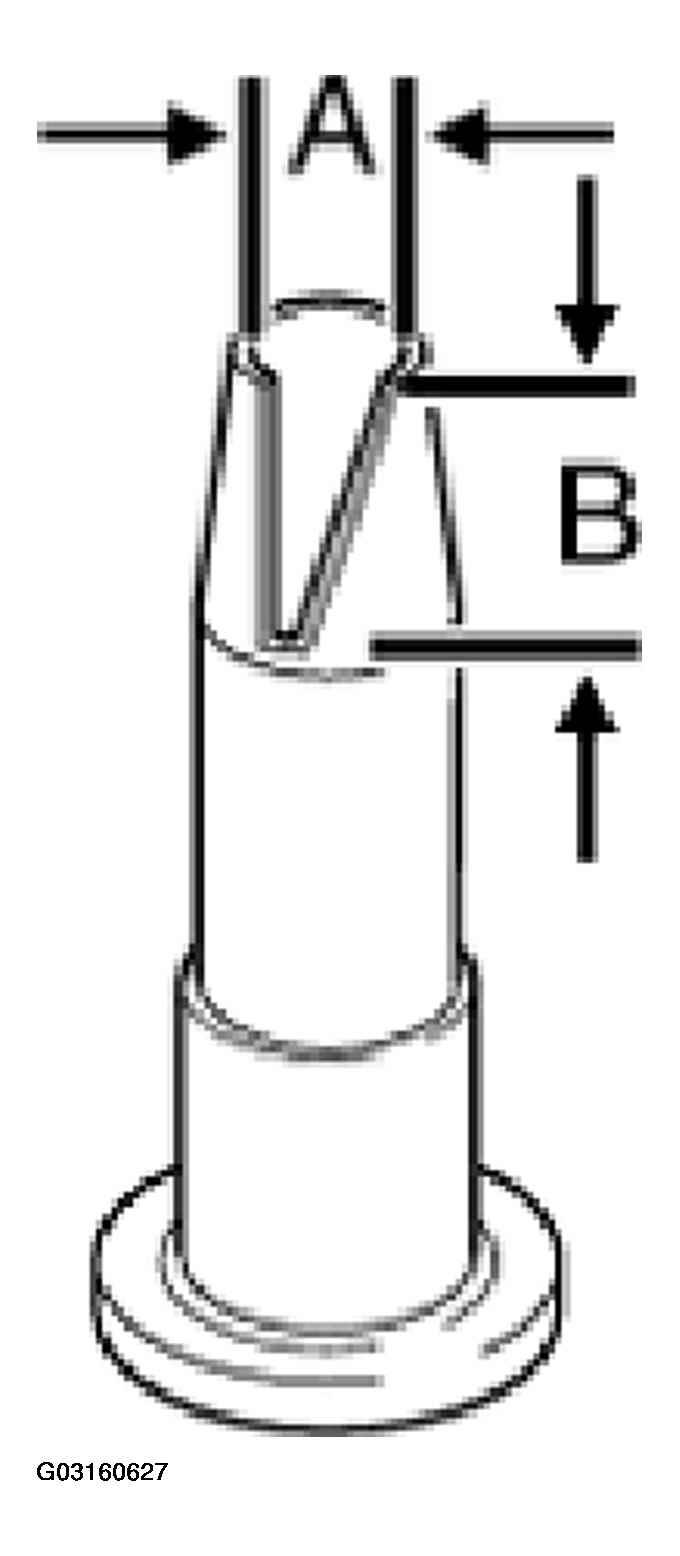

Fig 8: Cutting Nozzle To Standard Size
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To apply a uniform glue bead, use cartridge pistol, operated with compressed air or electric power.

CAUTION: Note expiry date of glue!

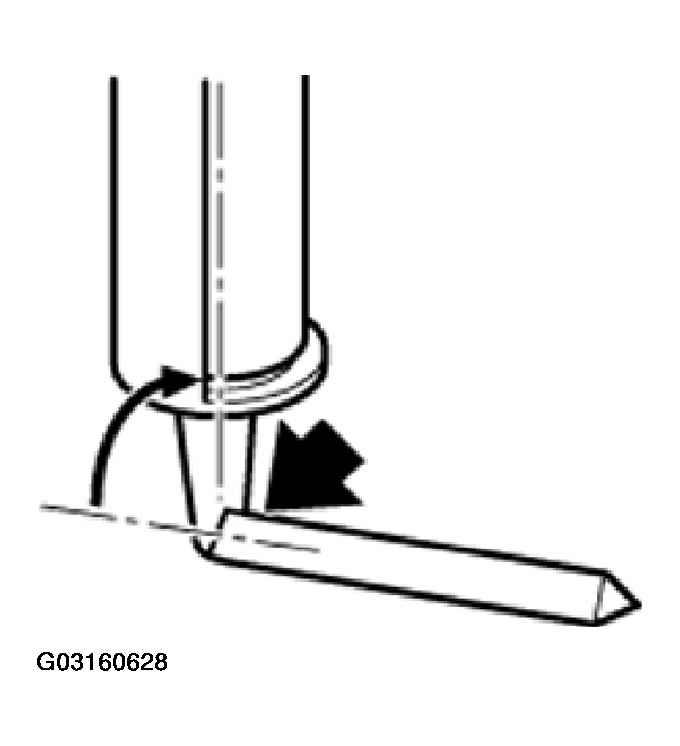

Fig 9: Applying A Uniform Glue Bead

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, produce a sample bead before gluing. Cartridge must be perpendicular to door window.

Shape of glue bead:

Version without double glazing:

7 mm
15_-2 mm

Version with double glazing:

7 mm
9_-1 mm

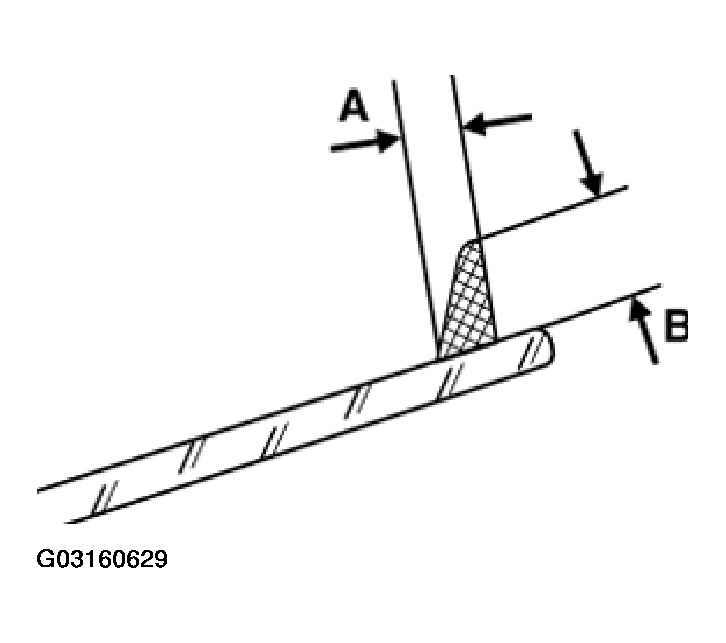

Fig 10: Identifying Shape Of Glue Bead
Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Apply glue rapidly and insert door window. Skin forms after 10 minutes.
Carefully fit door window, first at bottom, align down both sides then fit at top and press down. Secure door window in position with fabric adhesive tape (e.g. Tesa).
Remove dirt from residual glue with Sika remover 208 before glue is hard. Do not press door window out again for this purpose. Hardened glue can only be removed by machine.

Assemble car.

After hardening time, remove support.

NOTE: Leaks are detected by spraying water under the sealing lips or by using an ultrasonic leak tester and can then be sealed with an appropriate nozzle.
