51 34 380 Removing and installing/replacing decorative strip on rear door (top), left or right

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

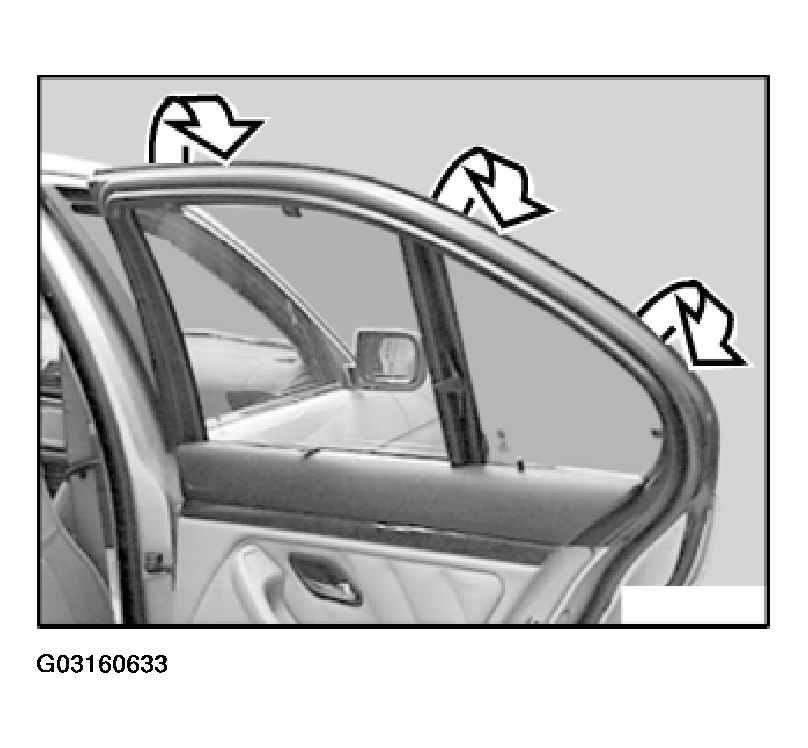

Partly remove rubber seal (1) at top.

Fig 1: Removing Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

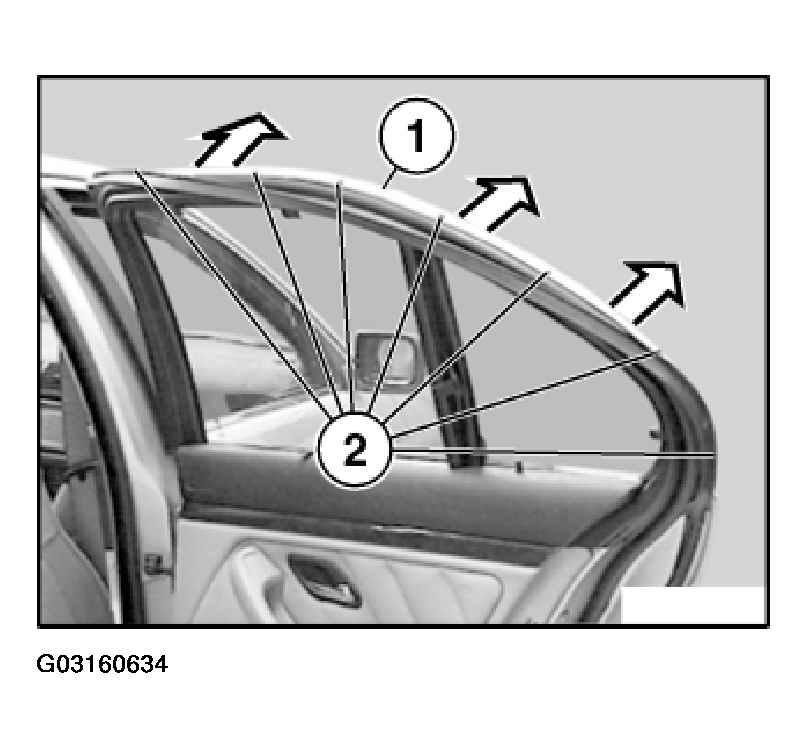

Pull out decorative strip (1) with clips (2).

Fig 2: Removing Decorative Strip

Courtesy of BMW OF NORTH AMERICA, INC.

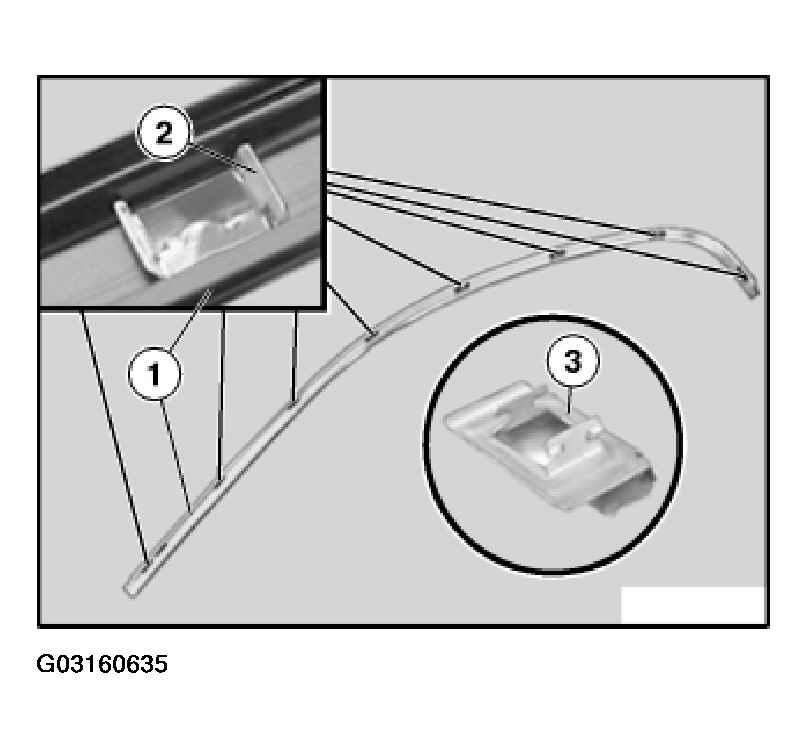

Remove faulty clips (2) from decorative strip (1) and replace with new clips (3).

Fig 3: Replace Any Faulty Decorative Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
