51 34 171 Replacing rear left or right door window

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open rear door window completely. Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove and install window cavity trim on outside of rear door, refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

Remove sound insulation on rear door, refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN REAR DOOR, LEFT OR RIGHT .

Remove and install cover on fixed door window of inside rear door, refer to 51 34... REMOVING AND INSTALLING/REPLACING COVER ON FIXED DOOR WINDOW OF REAR DOOR, INSIDE LEFT OR RIGHT .

Release screws (1).

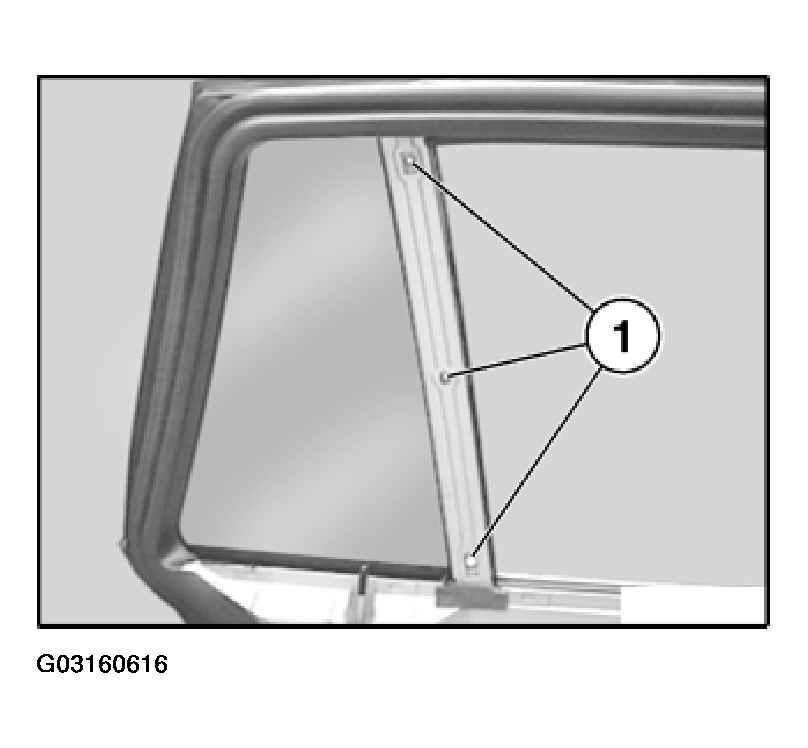

Fig 1: Releasing Screws (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber guide (1) and remove trim (2) upwards.

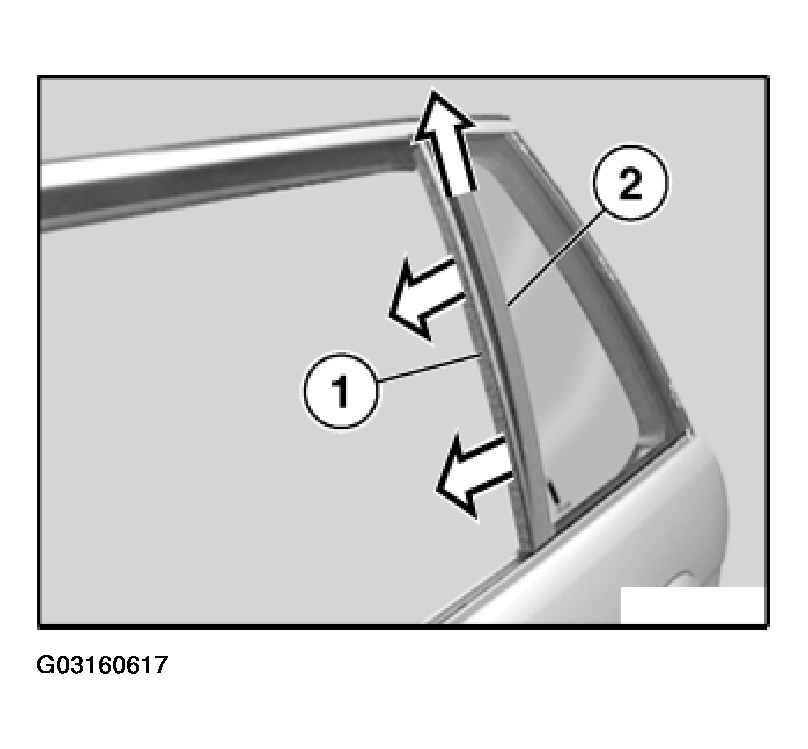

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and lift door window (2) upwards.

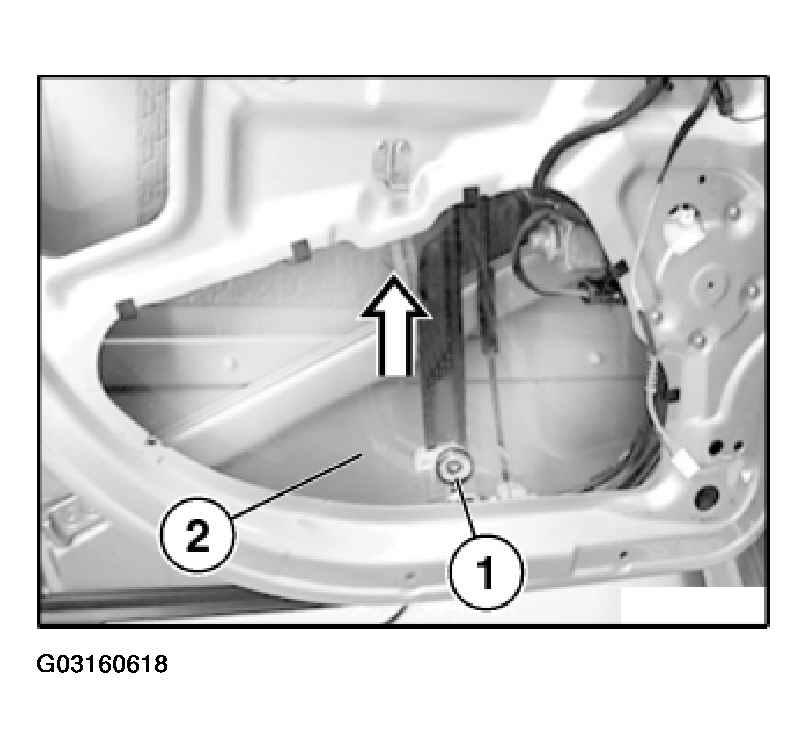

Fig 3: Removing Rear Window Mounting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit screw (1) with washer.

Remove window glass by pulling upward at an angle.

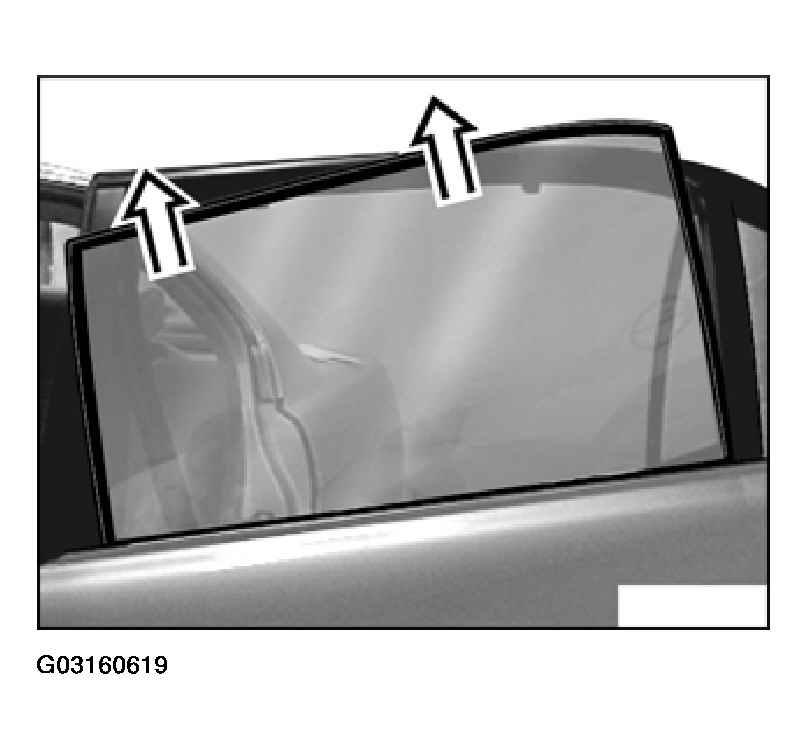

Fig 4: Removing Rear Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
