51 22 200 Removing and installing/replacing outside handle and lock control on left or right rear door

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim panel, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .

Remove outside handle on rear door, refer to 51 22 170 REMOVING AND INSTALLING/REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR .

NOTE: To release or partially detach sound insulation, follow procedure in "Removing and installing/replacing sound insulation on left or right rear door", refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN REAR DOOR, LEFT OR RIGHT

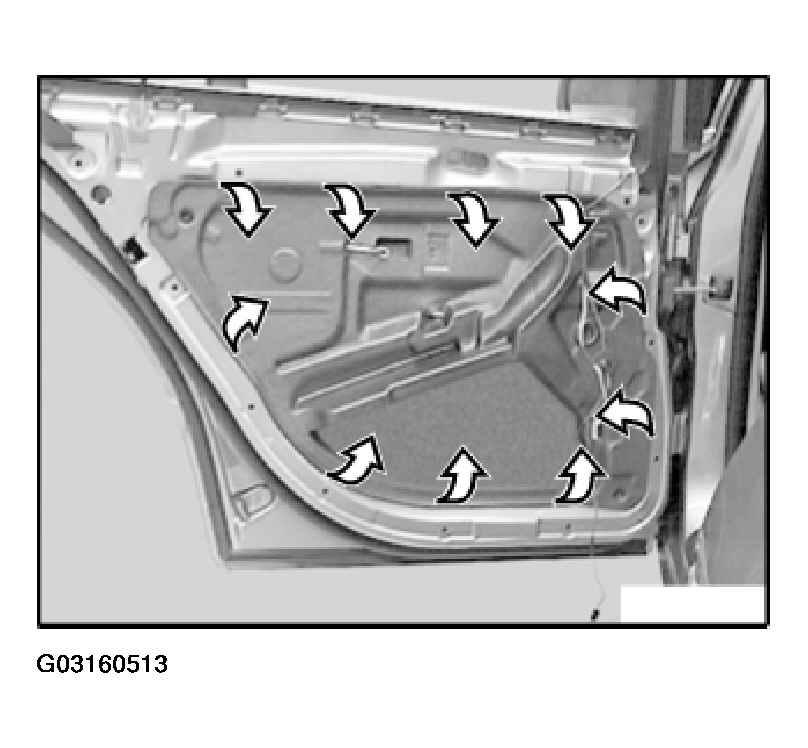

Partially pull off rear acoustic insulation and secure with adhesive tape.

Fig 1: Partially Remove Rear Acoustic Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Bowden cable nipple (1) and Bowden cable core (2) from door lock

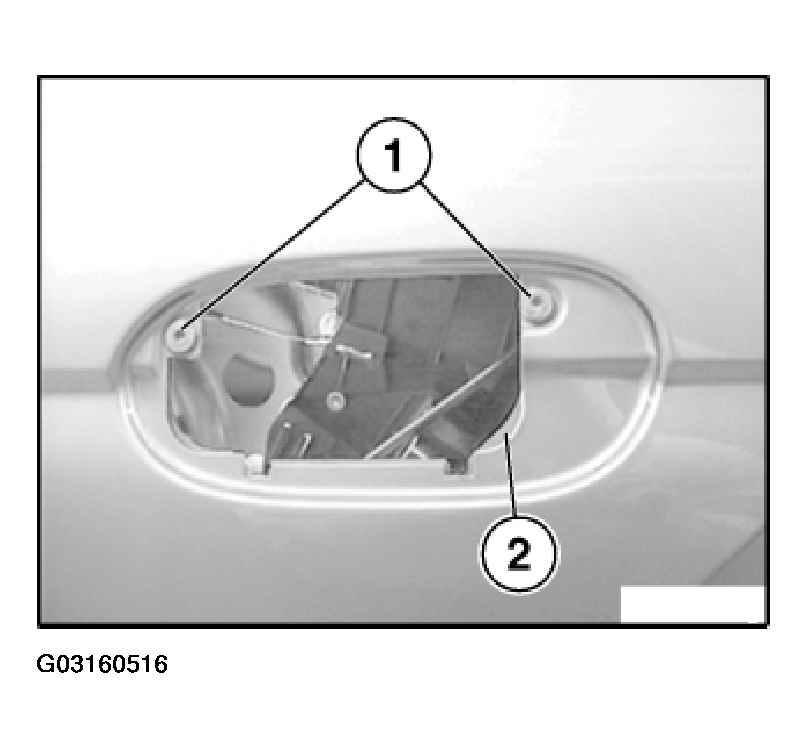

Unfasten screws (1) and remove lock control (2) (carrier for outside door handle).

Fig 2: Removing Lock Control

Courtesy of BMW OF NORTH AMERICA, INC.

Only replace:

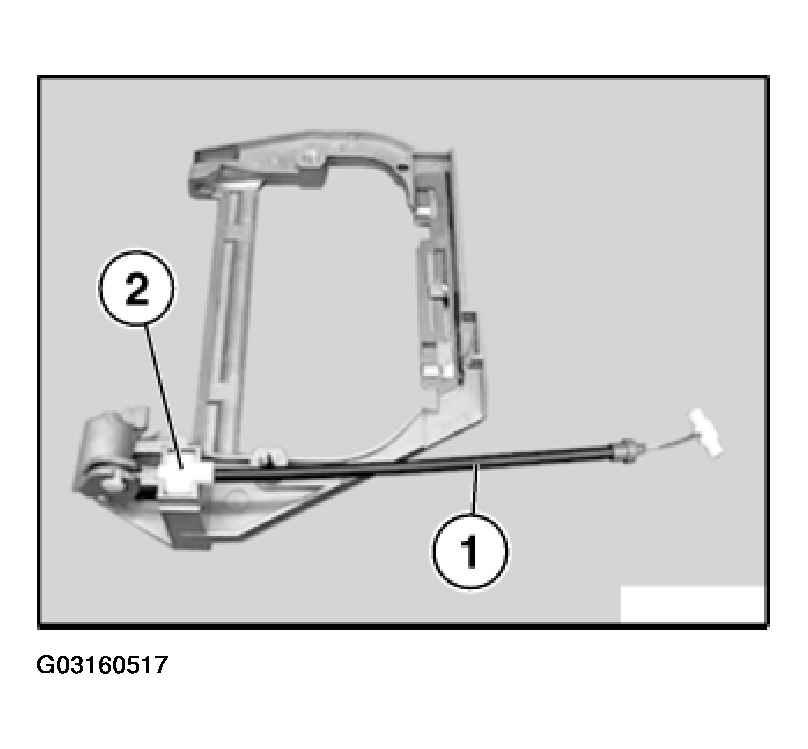

Unfasten clip (2) and disconnect Bowden cable (1) from lock control.

Fig 3: Disconnecting Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
