51 42 000 Removing and installing rear left or right door trim panel

Lift out cover cap.

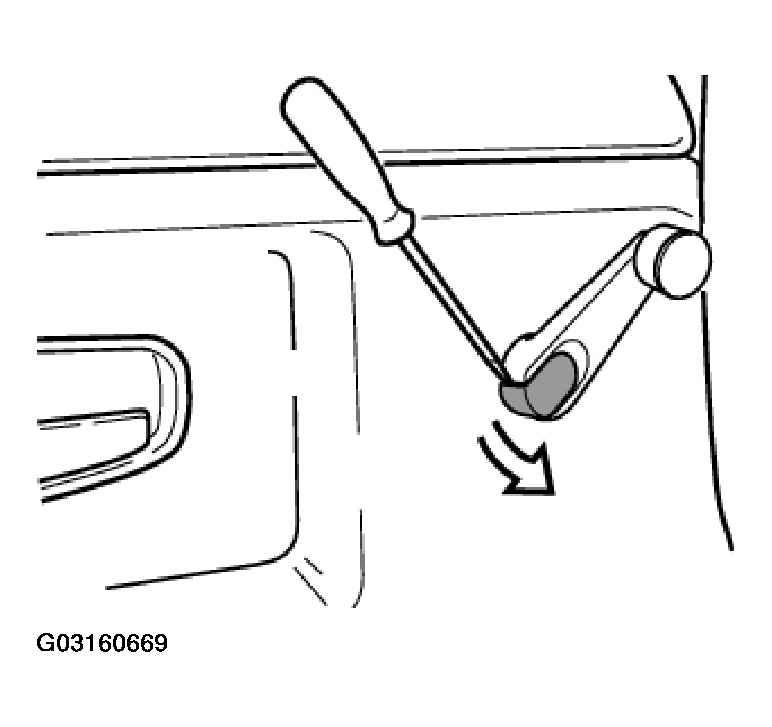

Fig 1: Removing Window Crank Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.

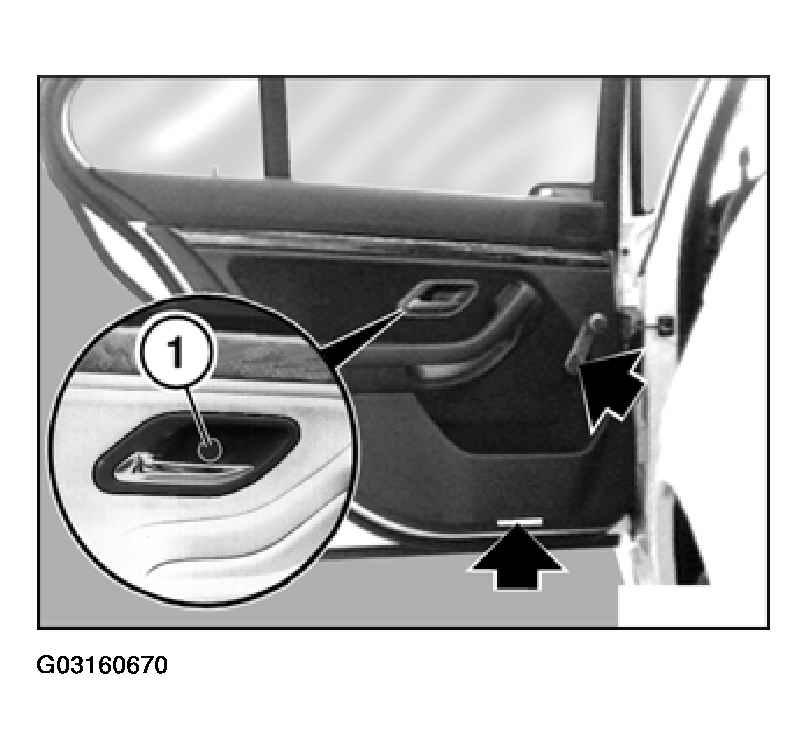

Lift out cover cap (1) and unfasten screw.

Unfasten screw on window crank then remove window crank and washer.

If necessary, lift out footwell light and/or toggle switch (window regulator) and disconnect connector.

Fig 2: Removing, Window Crank, Footwell Light & Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Version with sun roller blind on side window:

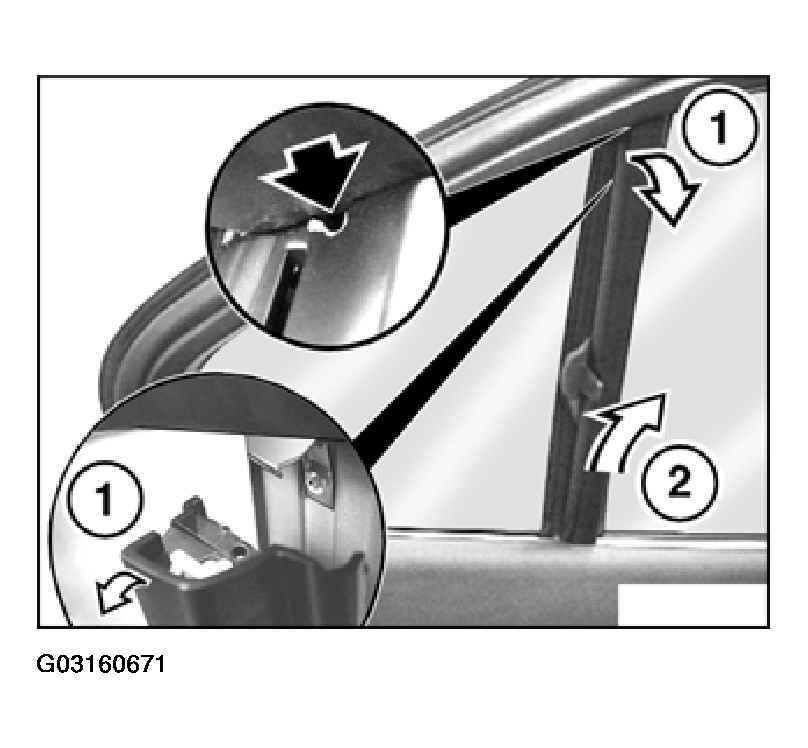

Unhook roller sun blind at top (1) and pull out towards inside/top (2).

Fig 3: Removing Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

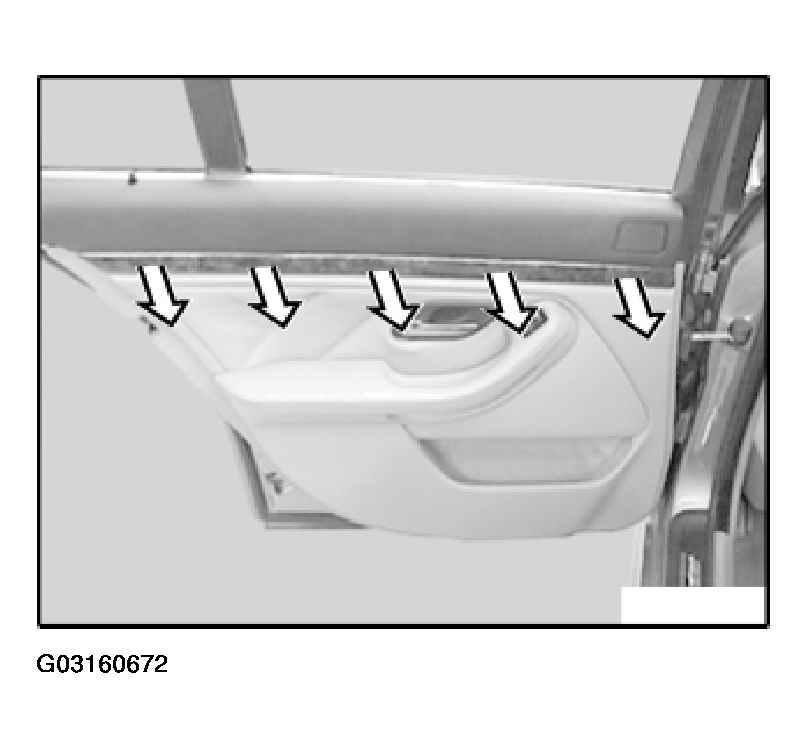

Version with sun roller blind on side window: Pull wooden strip backwards to remove.

Fig 4: Removing Wooden Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Version with sun roller blind on side window:

Installation:

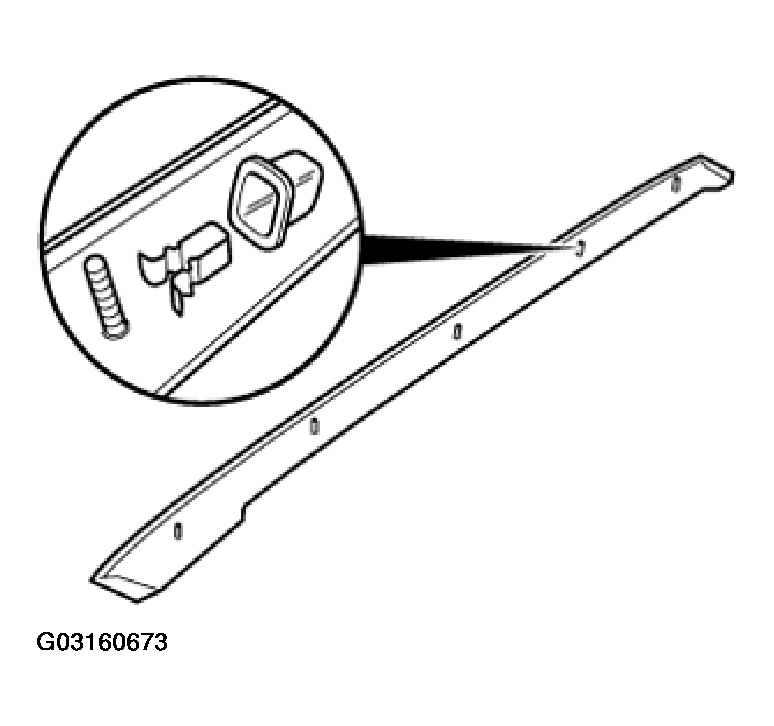

If necessary, replace faulty clips and/or grommets.

Fig 5: Replace Any Faulty Clips And/Or Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Version with sun roller blind on side window:

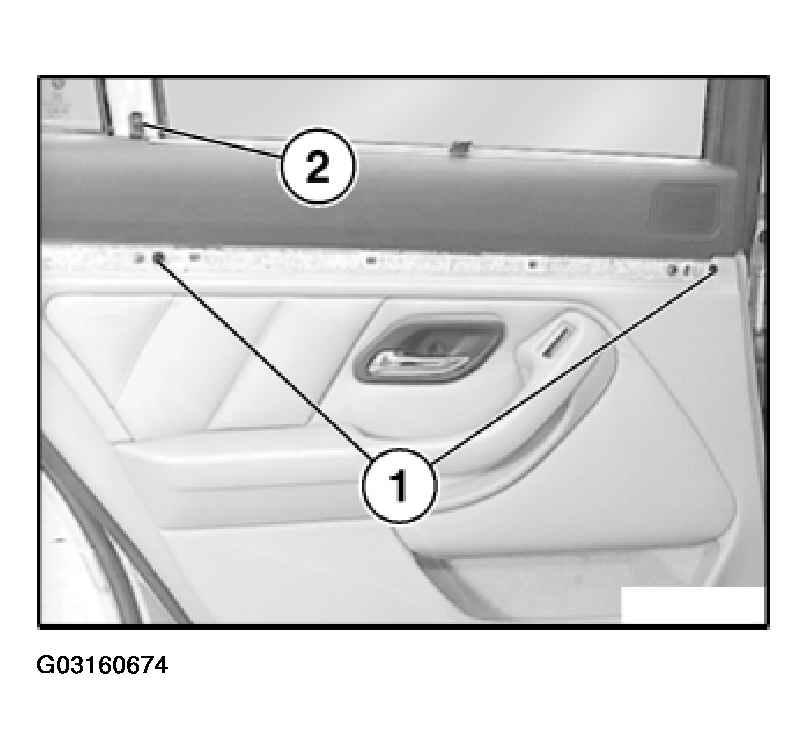

Release screws through bores (1). Unscrew bolt (2).

Fig 6: Removing Sun Roller Blind Screws & Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

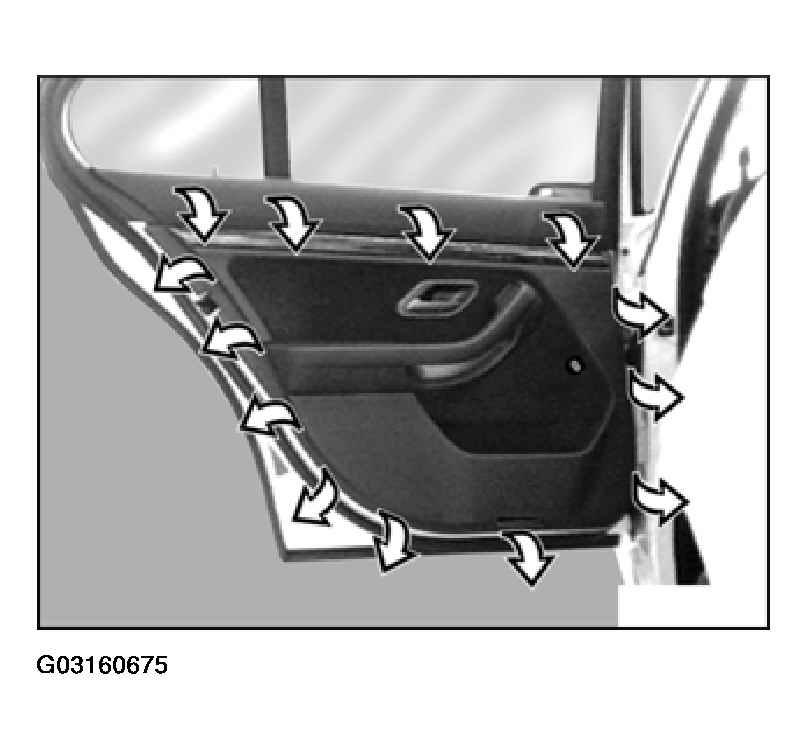

Unclip door trim panel all around.

Fig 7: Uncliping Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

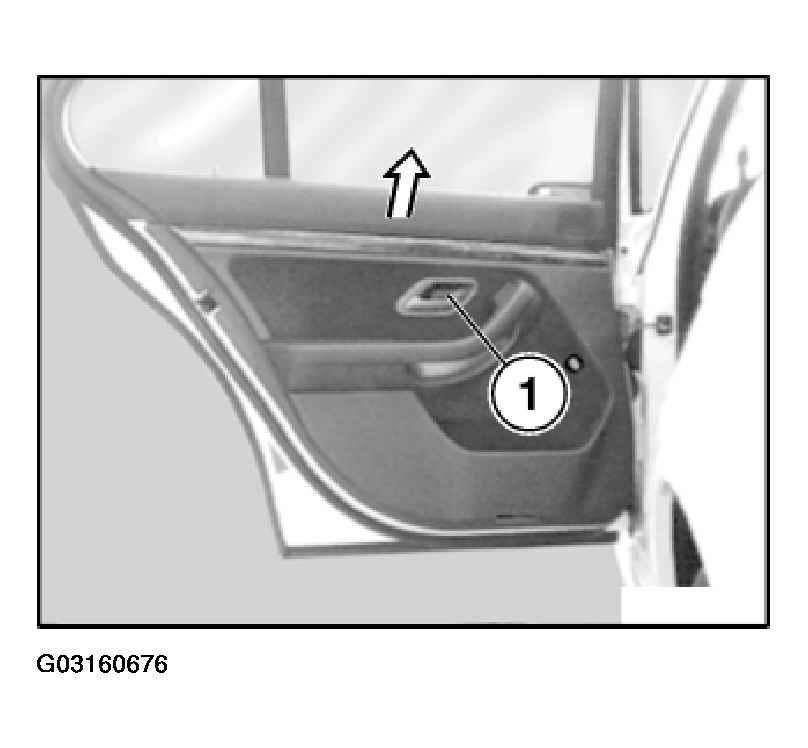

Pull door trim upwards out of door clip and slide door handle (1) through the door trim.

Fig 8: Removing Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

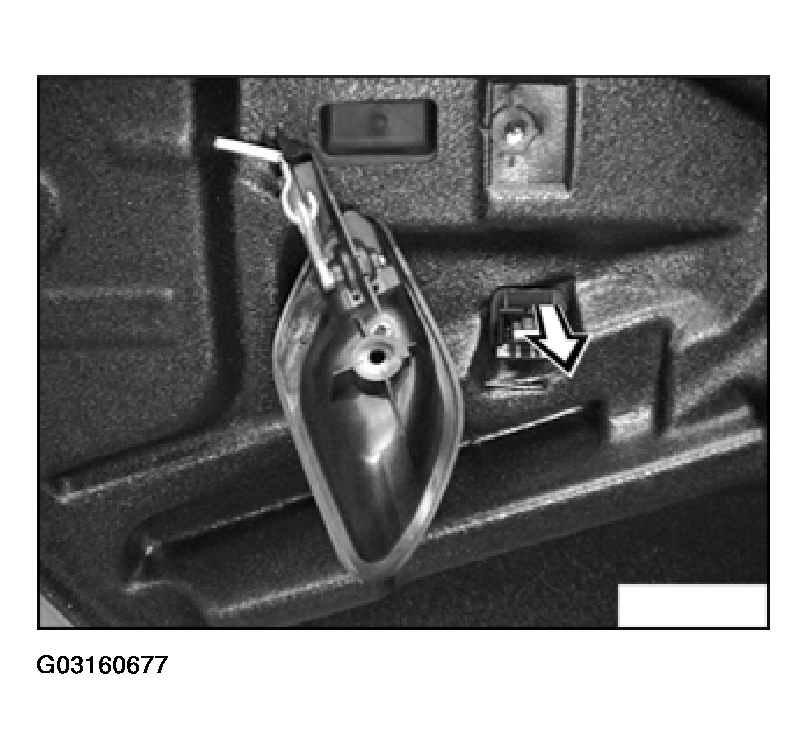

Remove door clip.

Fig 9: Removing Door Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

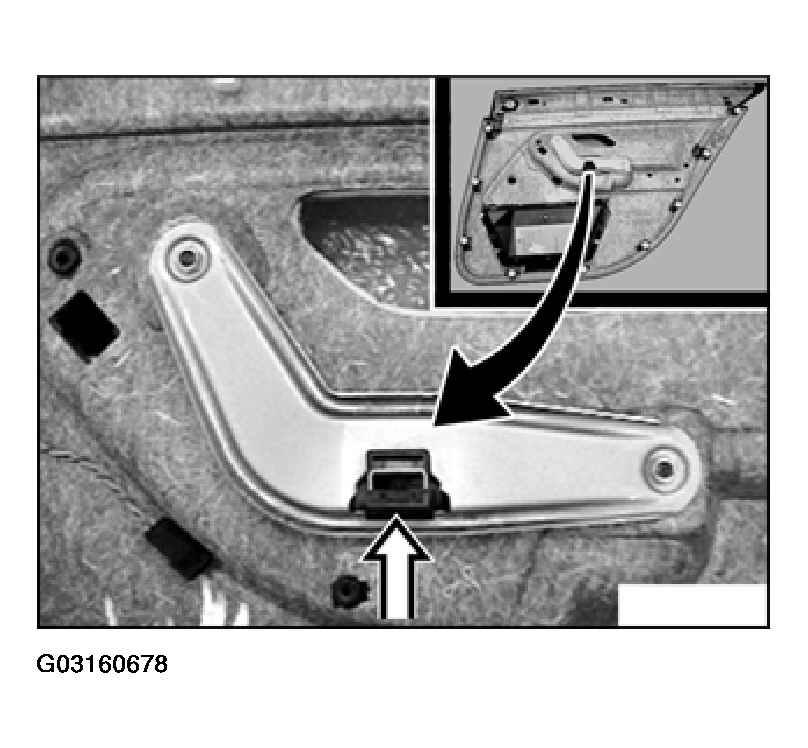

Install door clip in bracket of door trim.

Fig 10: Installing Door Clip In Bracket Of Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

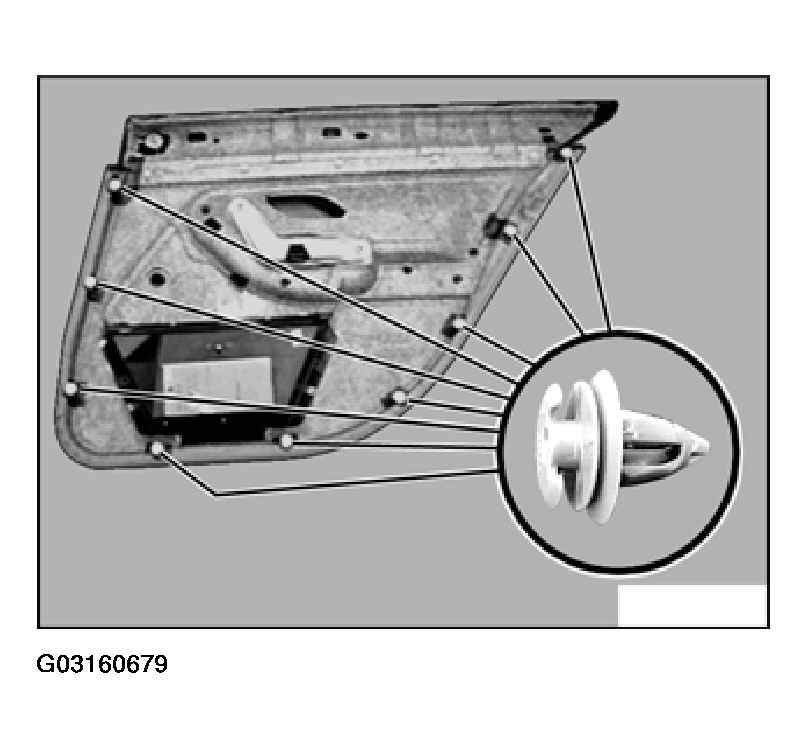

If necessary, replace damaged clips.

Fig 11: Replace Any Faulty Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

1. Open door window
2. Close door
3. Lock with vehicle key
4. Check whether the linkage on the retaining knob can move freely.
5. If necessary, dismantle door trim panels and align the linkage
6. If necessary, mount door trim
7. If necessary, repeat steps 1 to 4
