51 22 170 Removing and installing/replacing outside handle on left or right back door

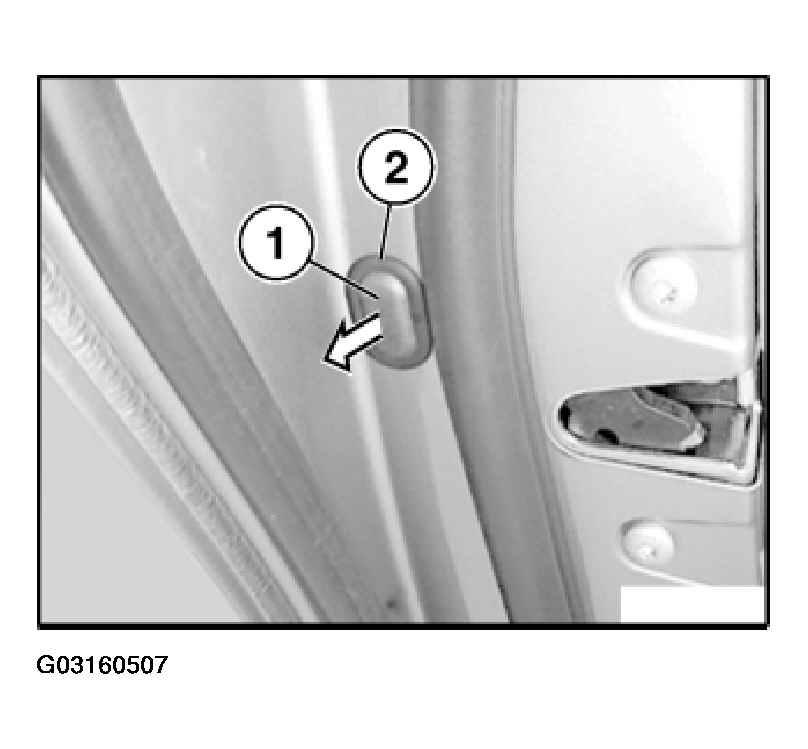

Lift out seal plugs (1) and (2).

Mask the area around the bore with fabric adhesive tape (risk of damage).

Installation:

Fit new seal plugs.

Fig 1: Removing Seal Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

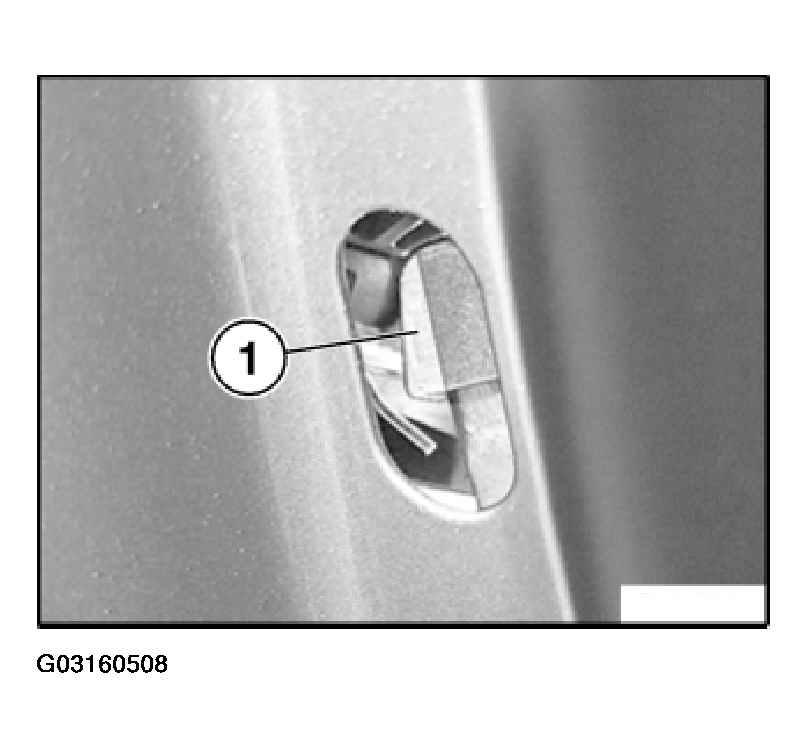

Cut off foam tape around area (1) with Stanley knife (razor-sharp).

Fig 2: Cutting Off Foam Tape

Courtesy of BMW OF NORTH AMERICA, INC.

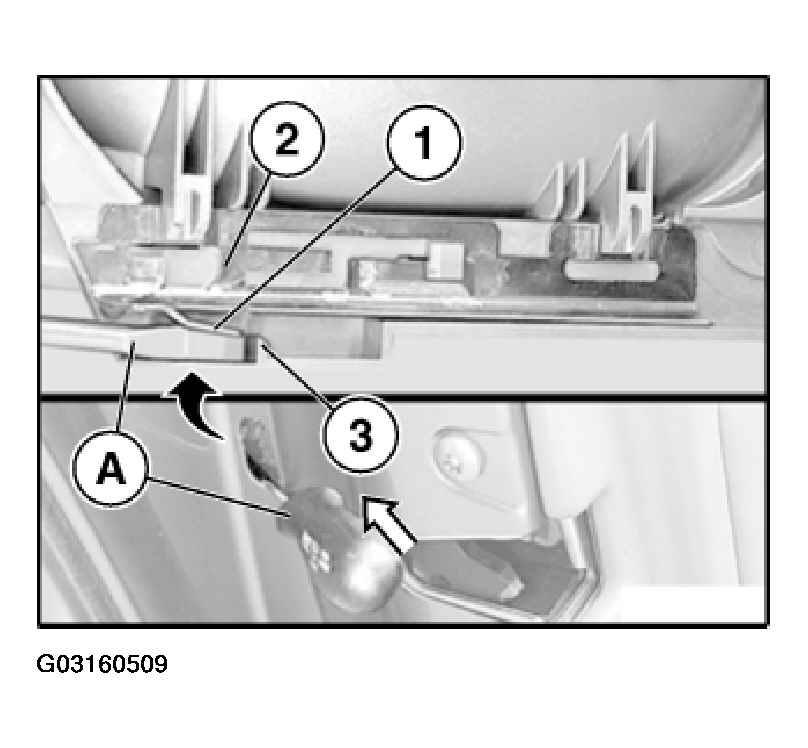

Insert screwdriver (A) and lift retaining tab (1) on locking plate (2) over the retaining lug (3).

Fig 3: Lifting Retaining Tab On Locking Plate

Courtesy of BMW OF NORTH AMERICA, INC.

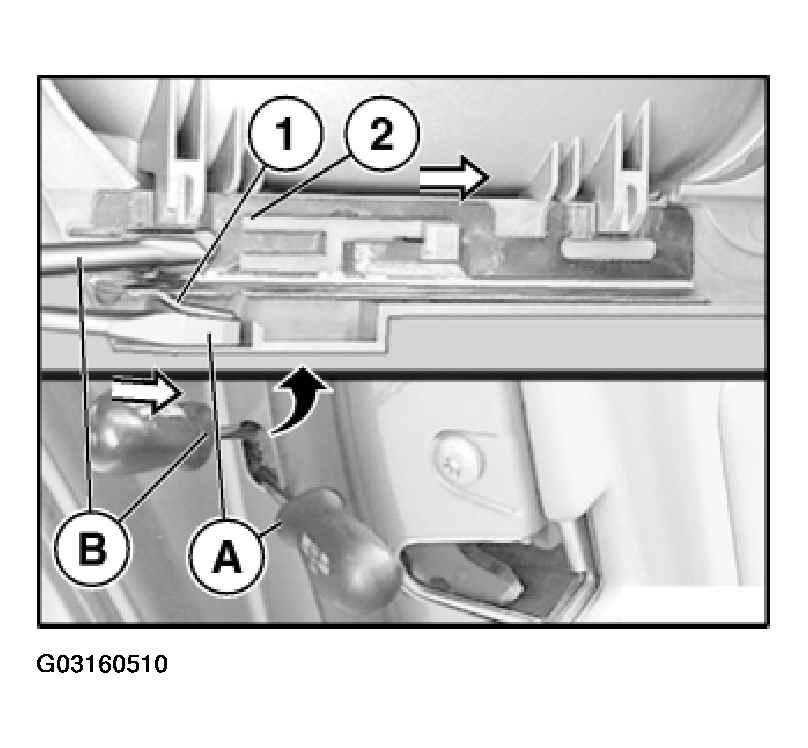

Using small screwdriver (B) (0.4 x 2 mm), press locking plate (2) with raised retaining tab (1) forwards.

Remove both screwdrivers.

Fig 4: Using Screwdrivers Press Locking Plate Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

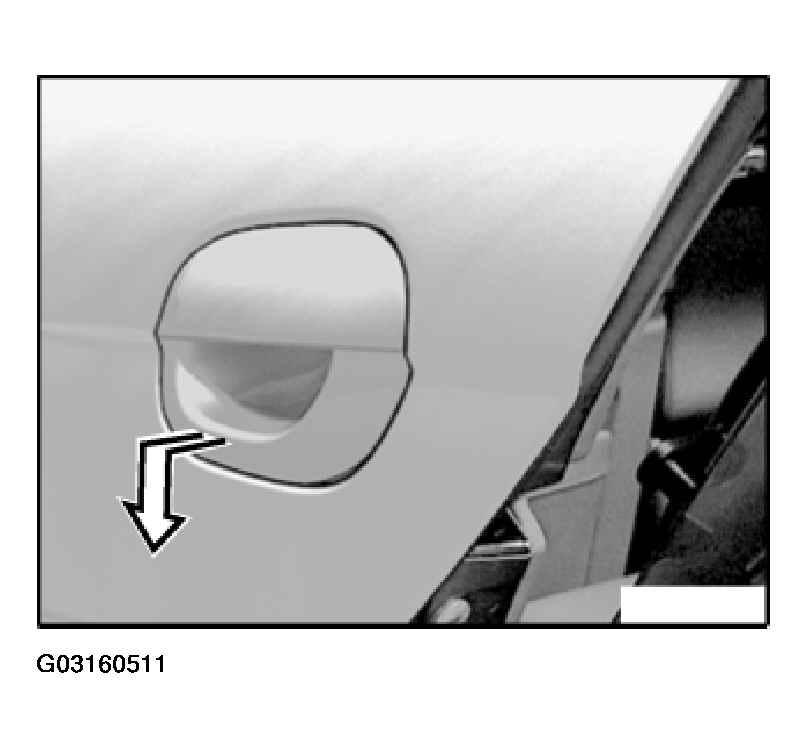

Lift out lower edge of outside handle and pull obliquely downwards to remove.

Fig 5: Removing Outside Rear Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

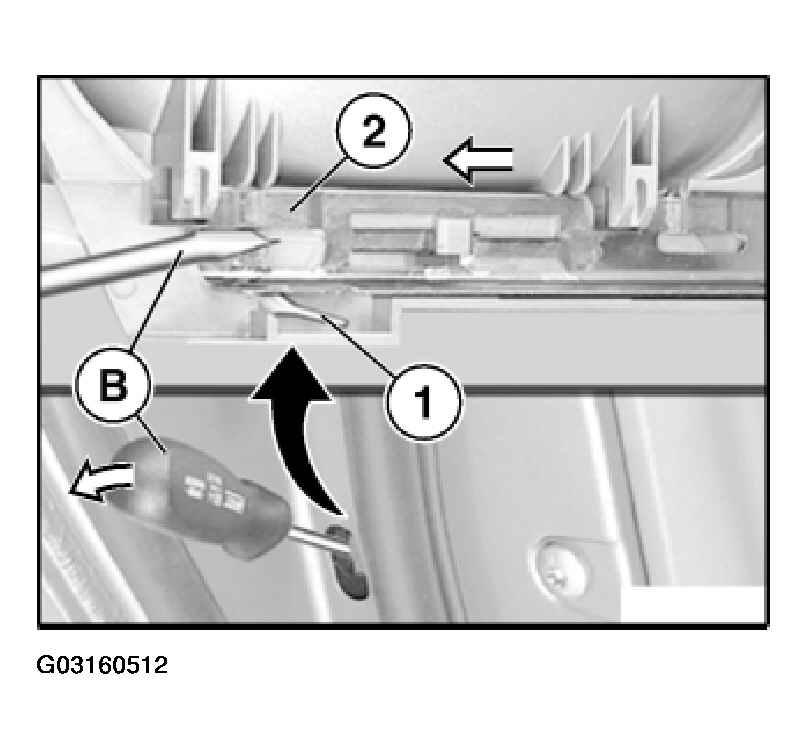

Insert screwdriver (B) (0.4 x 2 mm) in locking plate (2) and pull it backwards until the retaining tab (1) engages audibly.

Perform function check with opened rear door.

Fig 6: Installing Outside Rear Door Handle

Courtesy of BMW OF NORTH AMERICA, INC.
