51 45 050 Removing and installing trim for upper section of instrument panel

Necessary preliminary tasks:

• Remove both panels for front roof pillar. See 51 43 201 Removing and installing or replacing trim for front left or right roof
• Remove trim for instrument panel (lower section). See 51 45 030 Removing and installing trim for instrument panel (lower section)
• Remove complete instrument carrier. See 51 45 105 Removing and installing/replacing function carrier on instrument panel trim
• Remove passenger airbag. See PASSENGER-SIDE AIR BAG MODULE

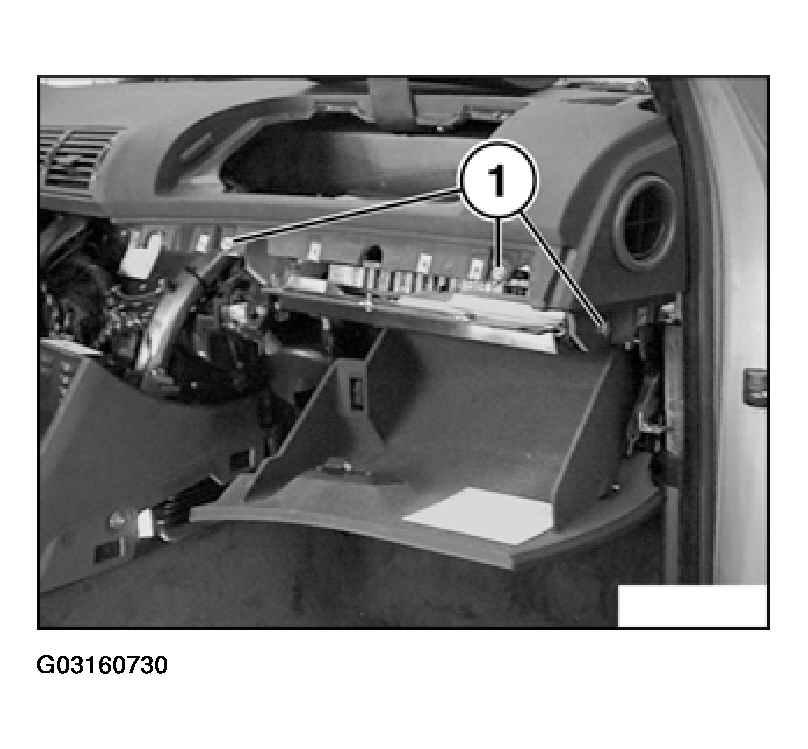

Release screws (1).

Fig 1: Removing Trim Panel Screw (1)

Courtesy of BMW OF NORTH AMERICA, INC.

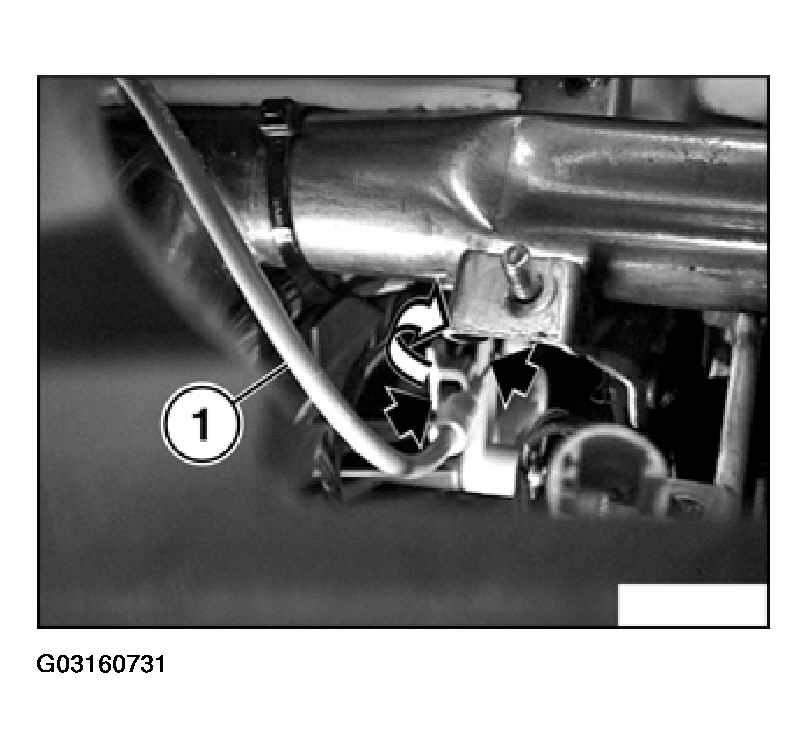

Disconnect Bowden cable (1) for temperature-controlled ventilation.

Fig 2: Disconnecting Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

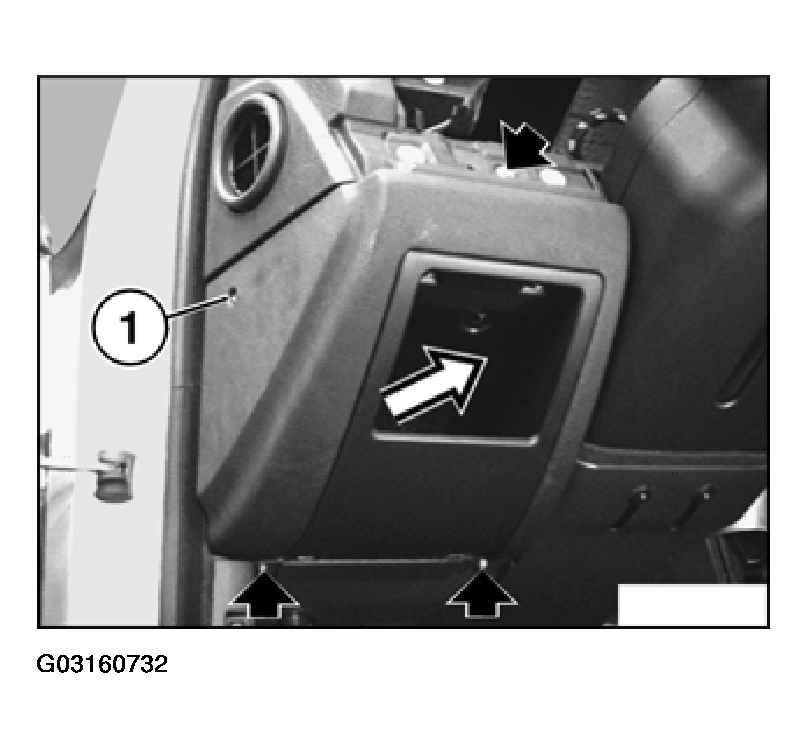

Lift off cap (1) and unfasten screw. Unfasten screws and remove left oddments tray.

Fig 3: Removing Left Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip rubber gaiter for steering column.

Fig 4: Uncliping Rubber Gaiter For Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

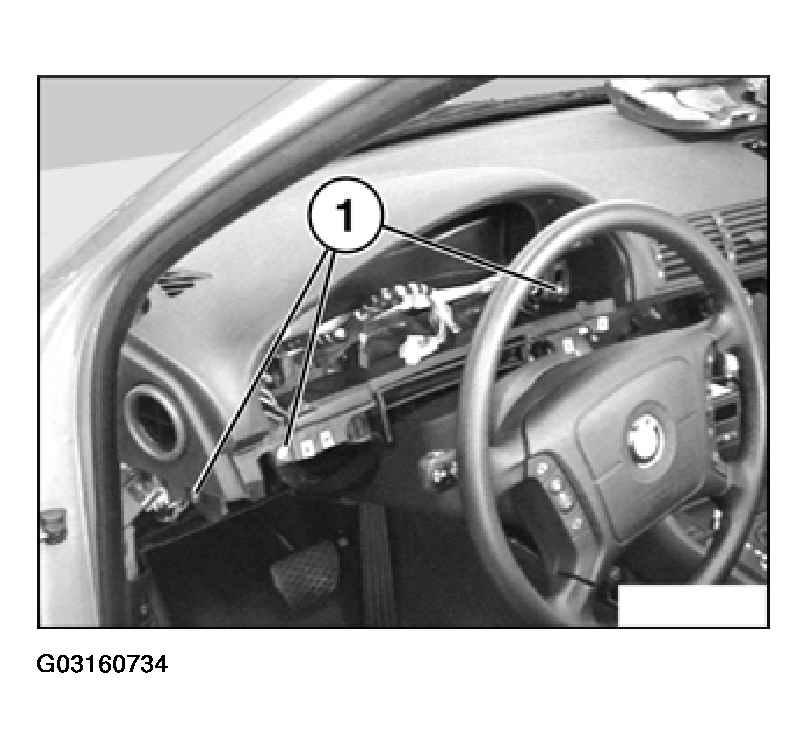

Release screws (1).

Fig 5: Remove Trim Screws As Illustrated

Courtesy of BMW OF NORTH AMERICA, INC.

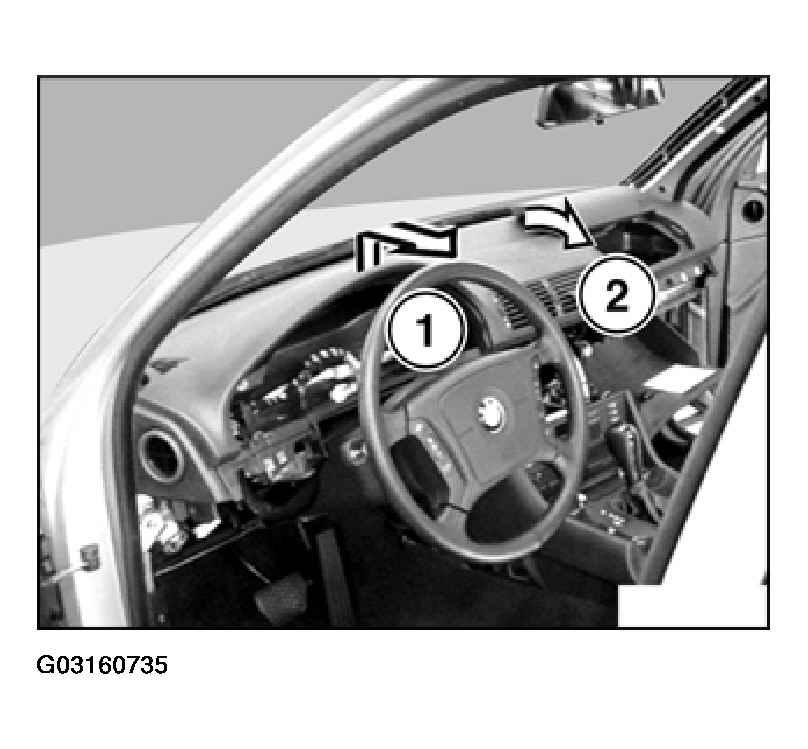

Lift trim for upper section of instrument panel upwards and remove through passenger door.

Fig 6: Removing Instrument Panel Upper Section

Courtesy of BMW OF NORTH AMERICA, INC.

Version up to 09/97:

Installation:

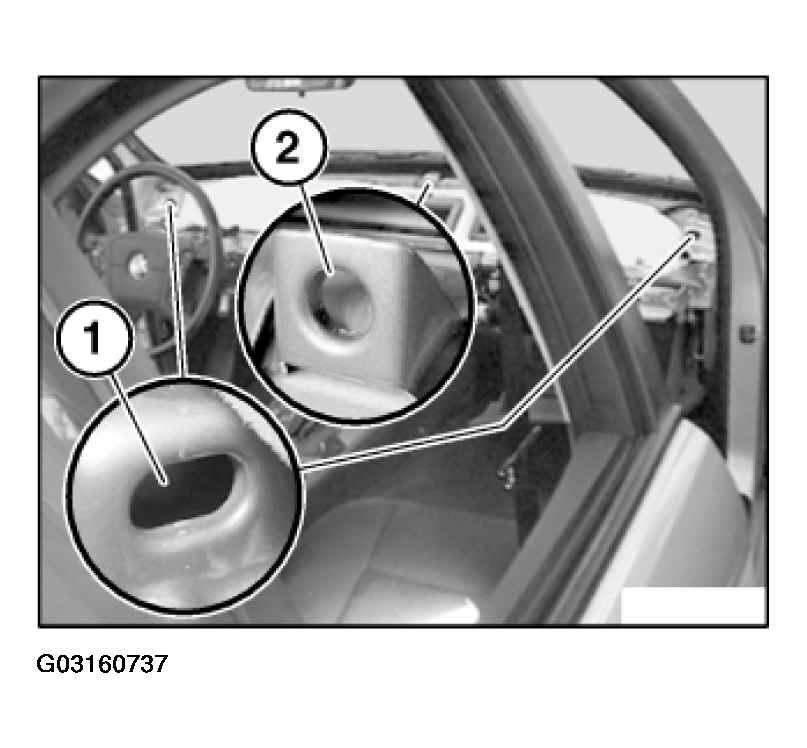

Left/right plastic guides (1) and center (2) must be installed.

Fig 7: Identifying Plastic Guides (Version Up To 09/97)

Courtesy of BMW OF NORTH AMERICA, INC.

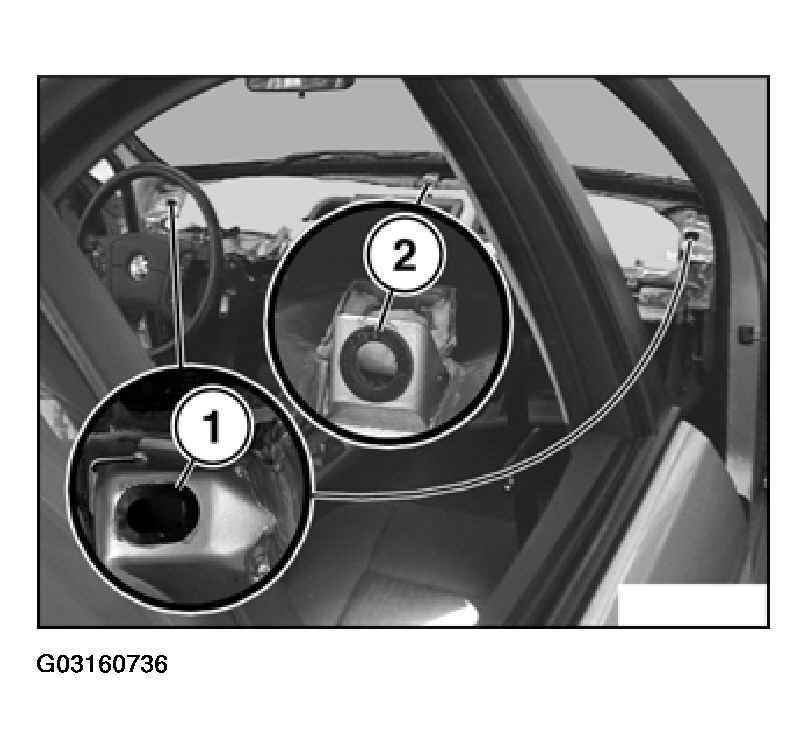

Version from 09/97:

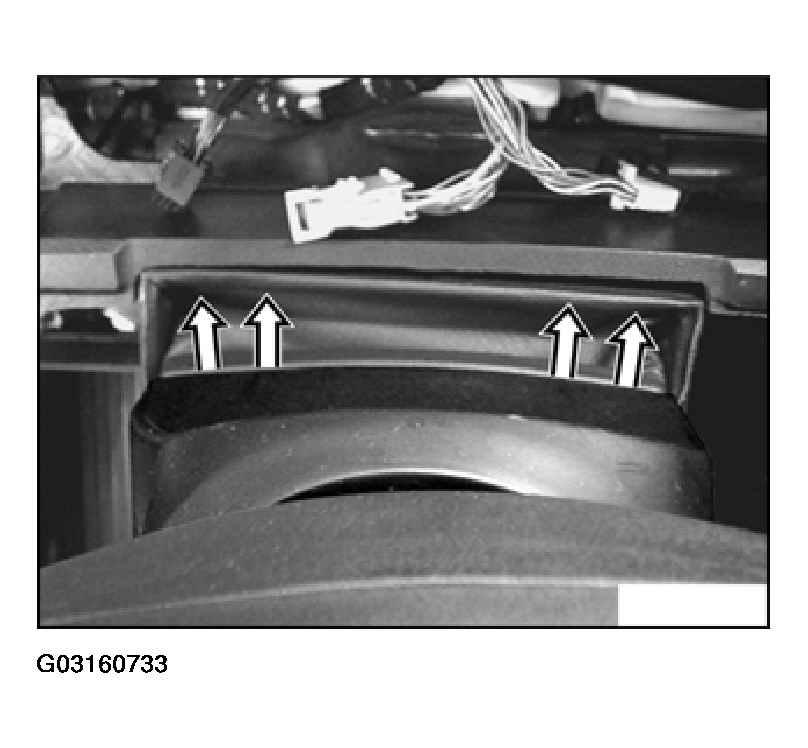

Fig 8: Identifying Newer Mountings (Version From 09/97)

Courtesy of BMW OF NORTH AMERICA, INC.
