51 45 030 Removing and installing trim for instrument panel (lower section)

Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove and install panel on instrument carrier, refer to 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER .

Remove and install radio receiver, refer to 65 11 030 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER .

If necessary, remove and install complete on-board monitor, refer to 65 52 510 REMOVING AND INSTALLING ON-BOARD MONITOR

Unclip shock absorber and catch band.

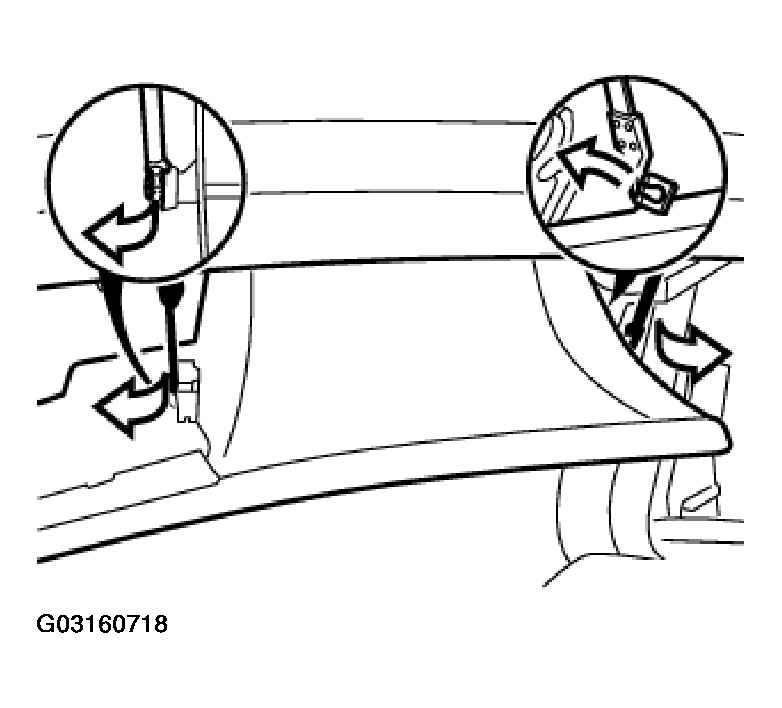

Fig 1: Uncliping Shock Absorber And Catch Band

Courtesy of BMW OF NORTH AMERICA, INC.

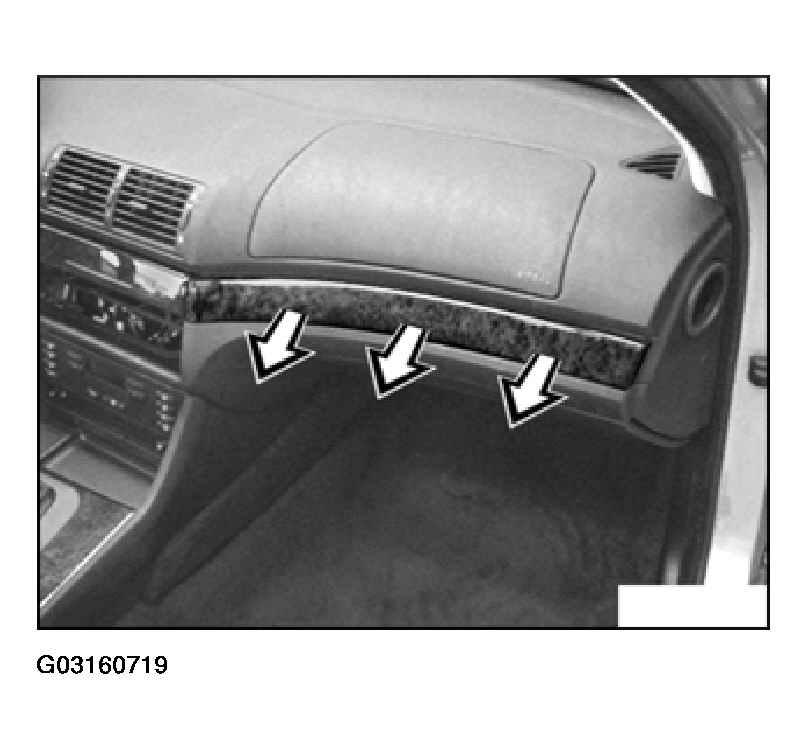

Unclip wooden finisher strip.

Fig 2: Uncliping Wooden Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

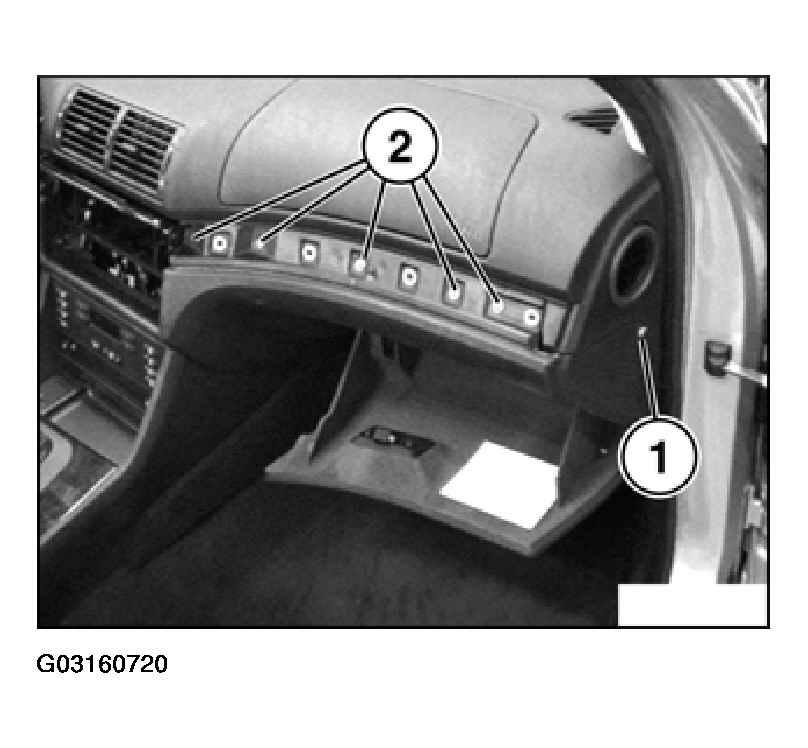

Lift off outer cap (1) and unfasten screw. Unfasten screws (2).

Fig 3: Remove Screws (1) & (2)

Courtesy of BMW OF NORTH AMERICA, INC.

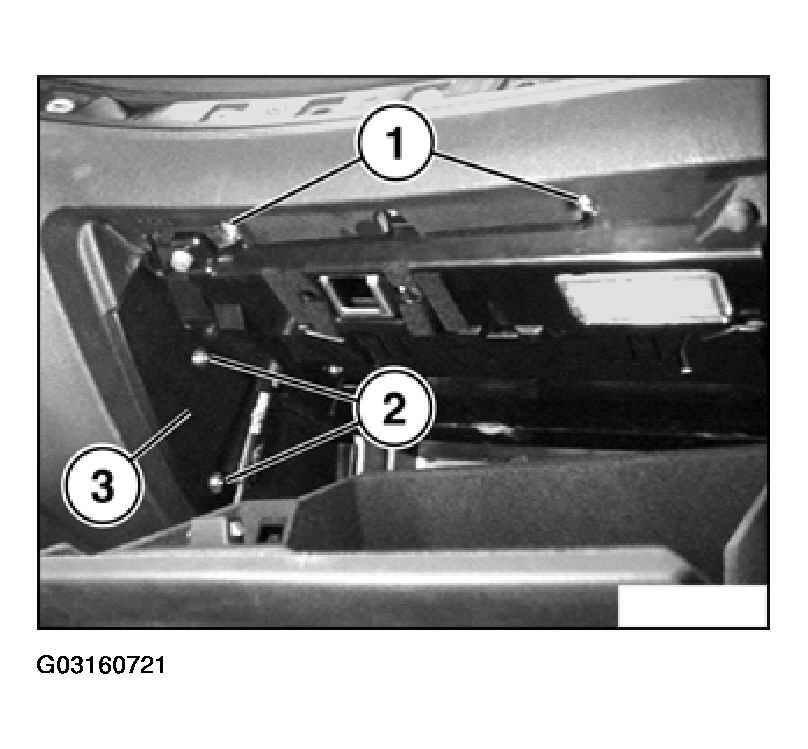

Remove screws (1 and 2).

Remove finisher strip (3).

Fig 4: Removing Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

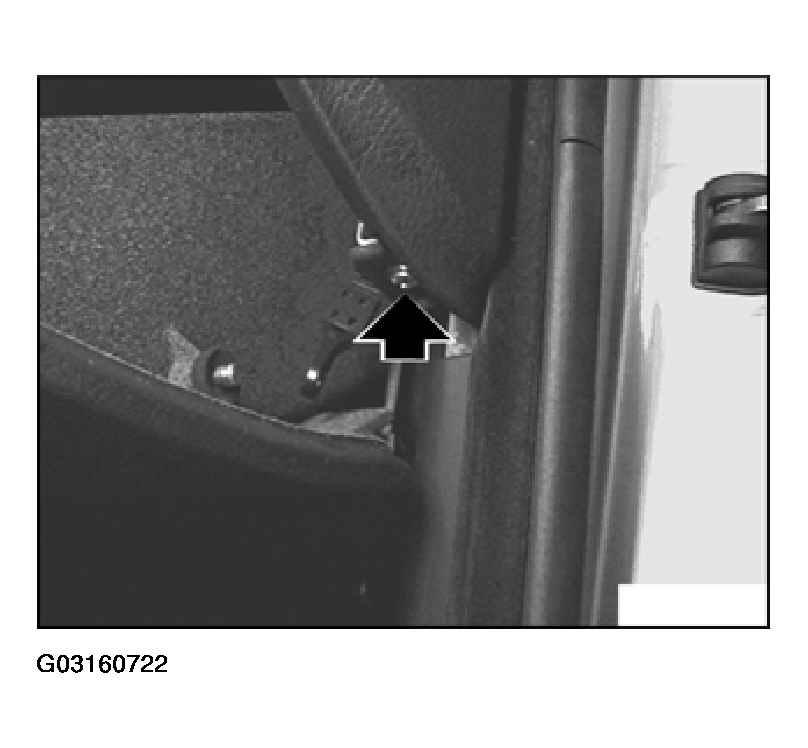

Unscrew screw.

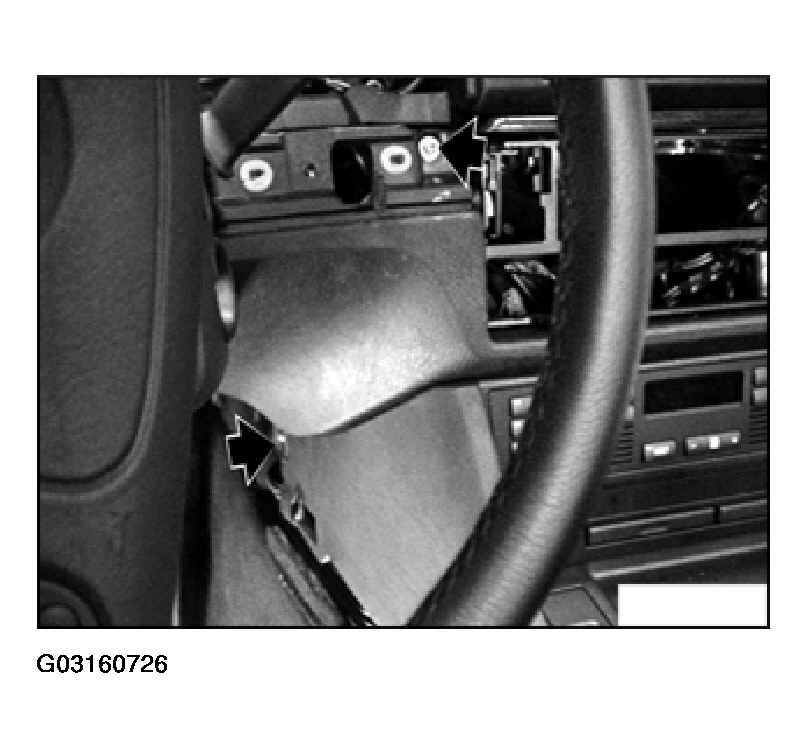

Fig 5: Remove Trim Panel Screw At Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

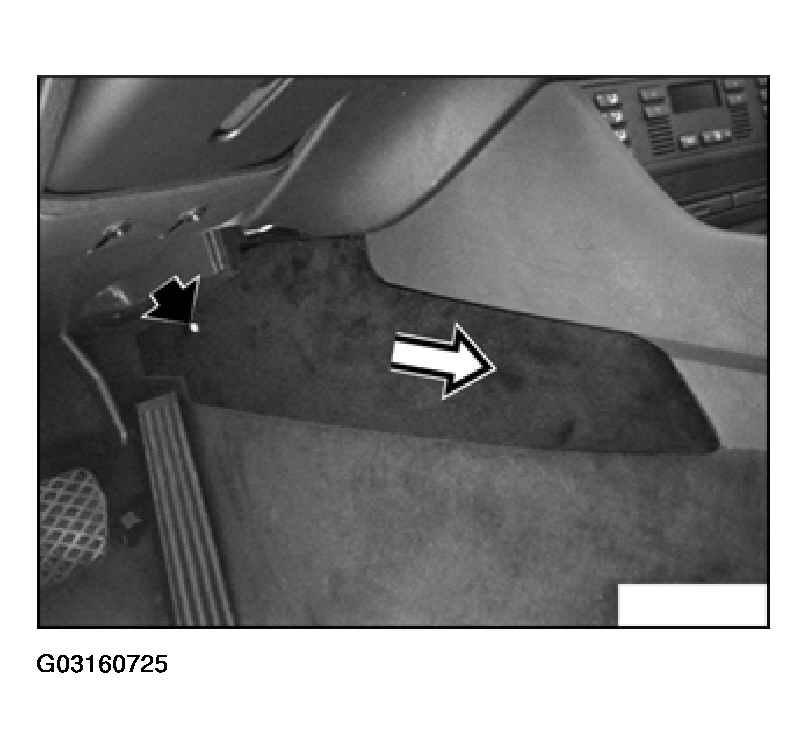

Unfasten screw and lift trim panel backwards to remove.

Fig 6: Removing Right Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

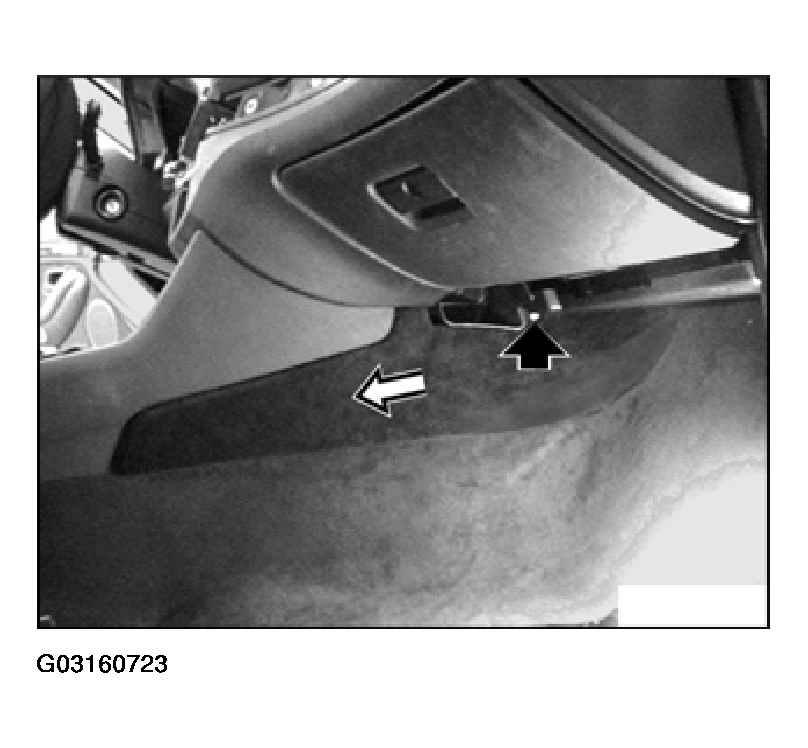

Unscrew screw.

Fig 7: Removing Trim Panel Screw At Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

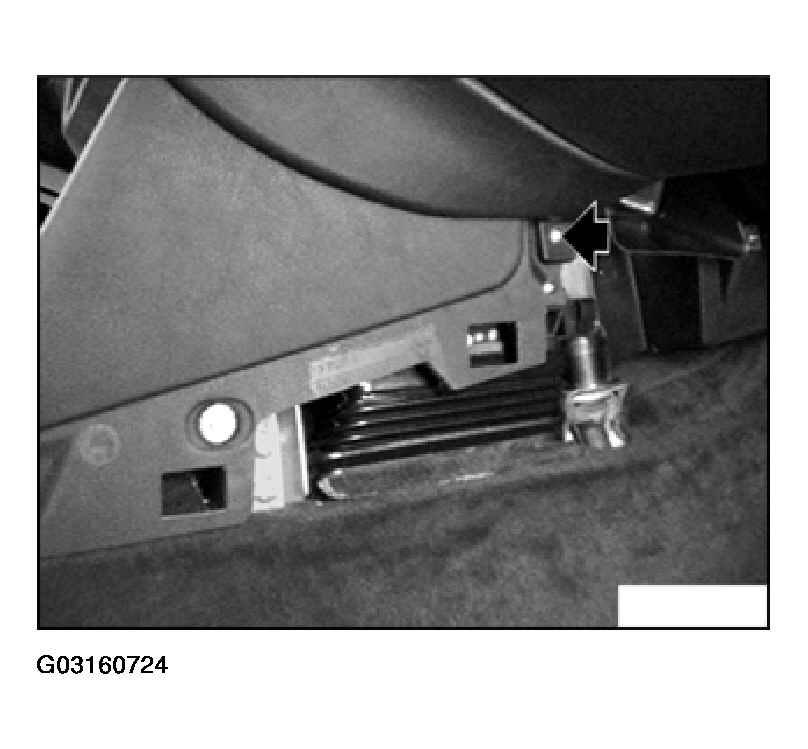

Unfasten screw and lift trim panel backwards to remove.

Fig 8: Removing Left Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Fig 9: Remove Upper Trim Panel Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out instrument panel lower section at bottom, pull out towards rear and lift out to right front door.

Fig 10: Removing Instrument Panel Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.
