51 43 201 Removing and installing or replacing trim for front left or right roof

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Version with head airbag:
Follow safety instructions for working on cars with airbag systems, refer to 51 00... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .
CAUTION: Do not use sharp-edged tools to remove trim (risk of damage to head airbag).

Remove mucket from front roof pillar (A-pillar finisher).

Version with head airbag (ITS): If necessary, lever out cap (1).

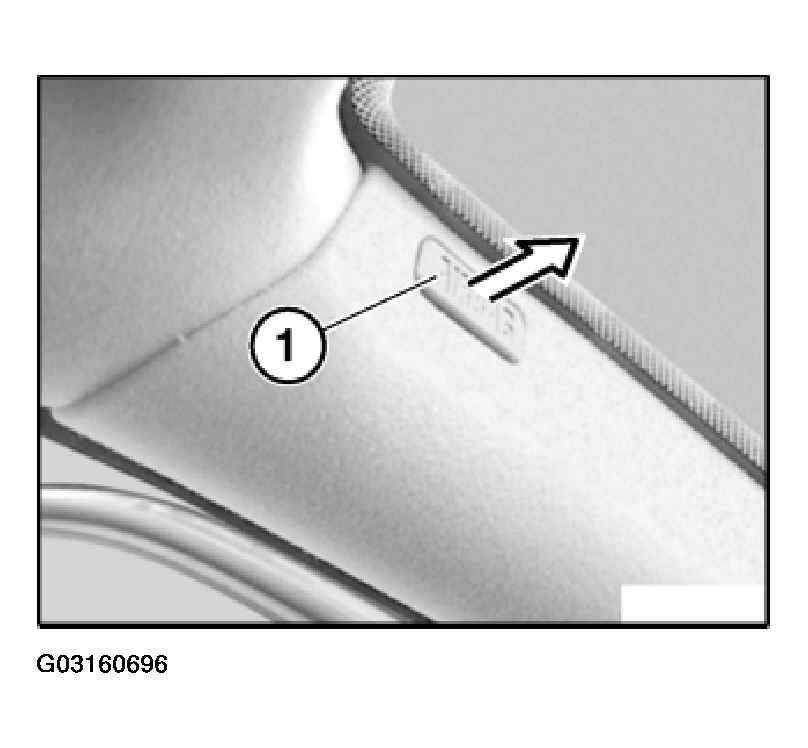

Fig 1: Removing Mucket From Front Roof Pillar (A-Pillar Finisher)
G03160696Courtesy of BMW OF NORTH AMERICA, INC.

Version with head airbag (ITS):

If necessary, release screw (1) and remove with clip (2).

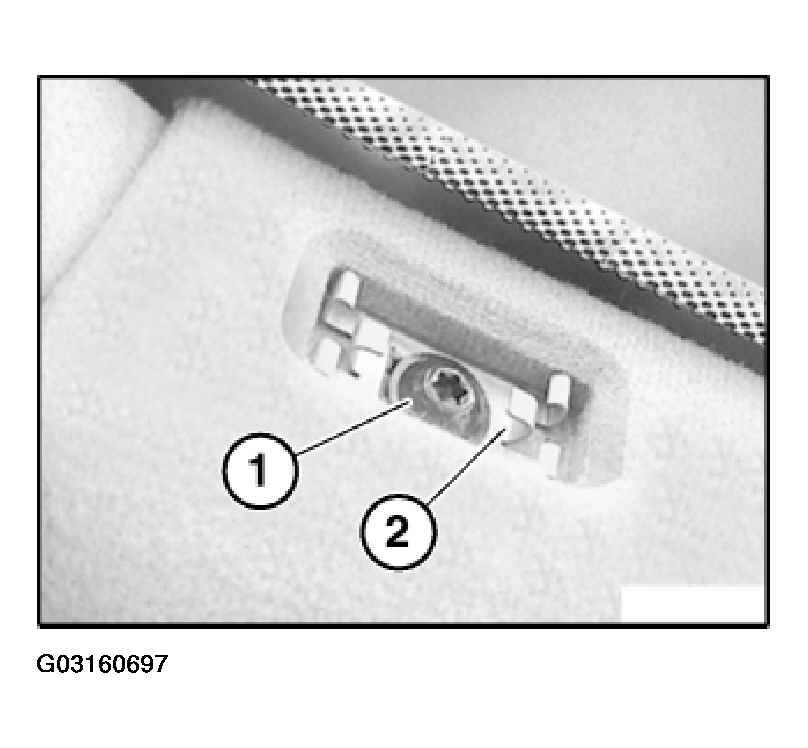

Fig 2: Removing Clip And Clip
G03160697Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim by pulling inwards and pull up to remove.

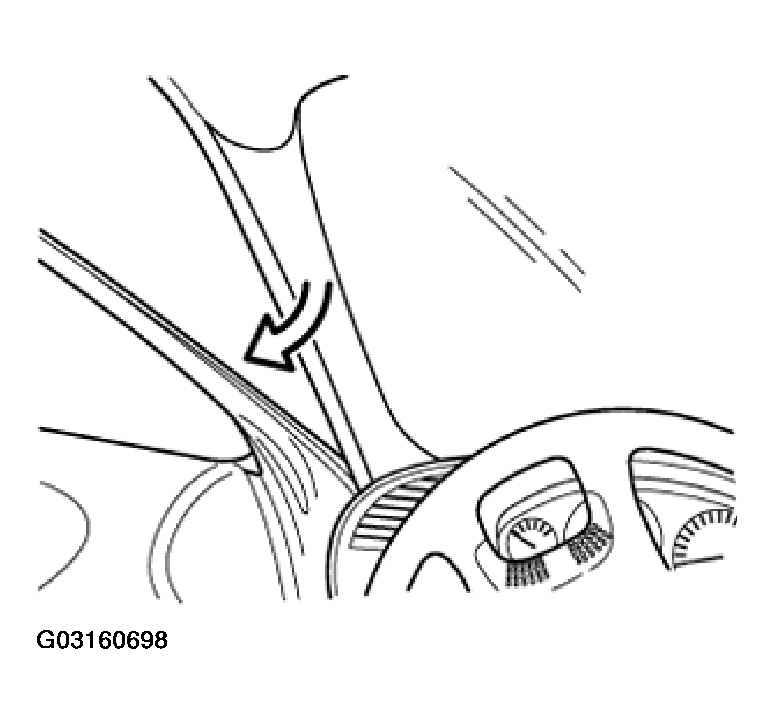

Fig 3: Removing Trim
G03160698Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips.

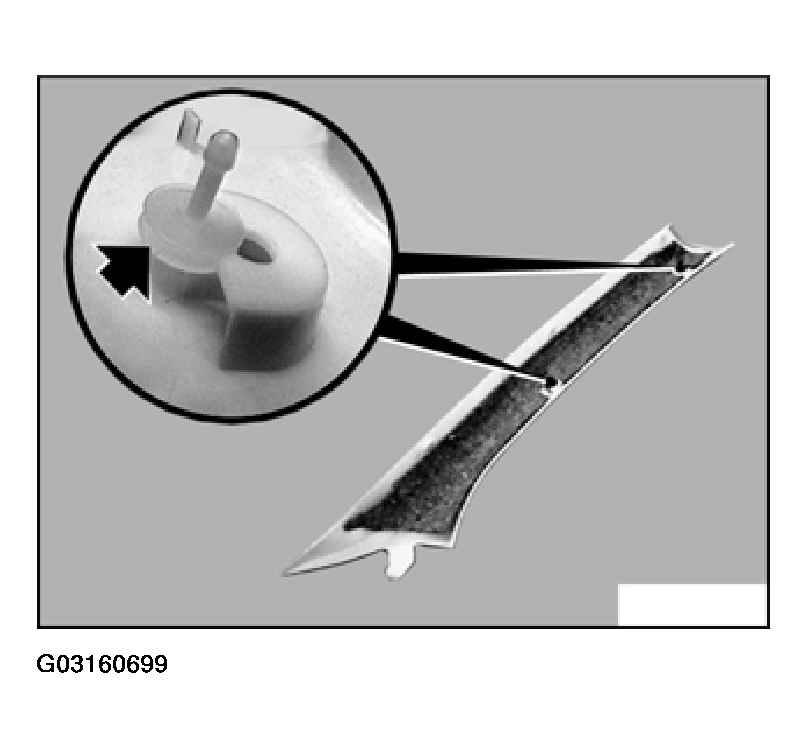

Fig 4: Replace Any Defective Or Damaged Clips
G03160699Courtesy of BMW OF NORTH AMERICA, INC.

Version with head airbag (ITS):

Installation:

Mounts (1) and (2) of trim panel (3) must not be damaged.

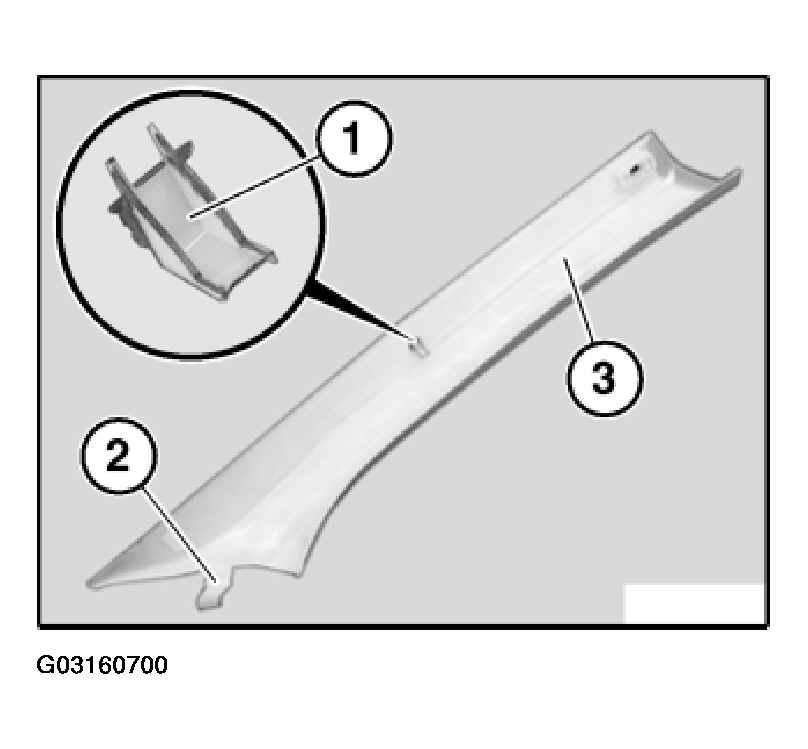

Fig 5: Use Care Not To Damage Clips Or Bracket On Trim Piece
G03160700Courtesy of BMW OF NORTH AMERICA, INC.
