62 21 000 Removing and installing complete instrument carrier

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Move steering column completely down and extend fully.

Unclip left and right wooden finisher strips.

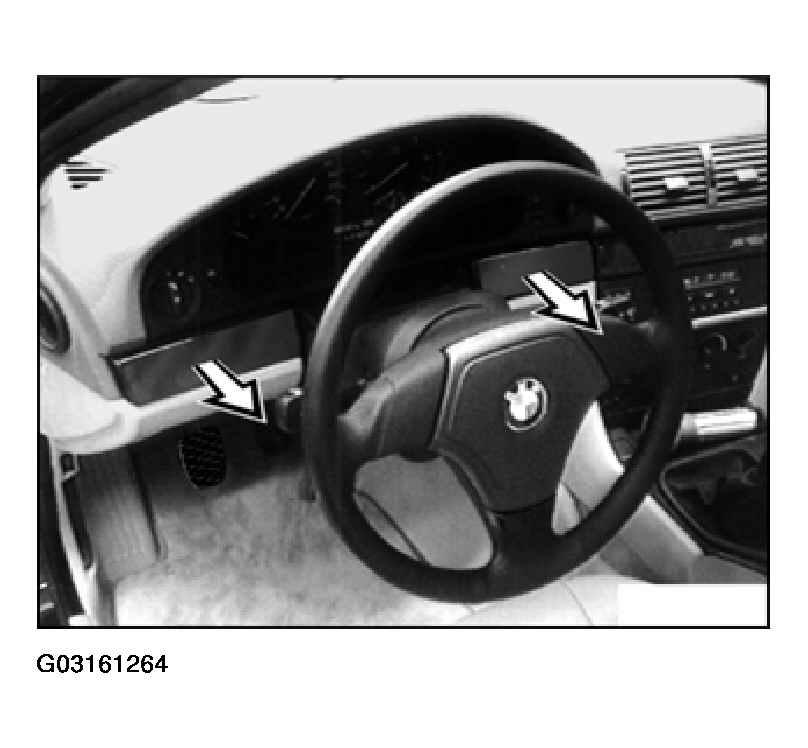

Fig 1: Removing Wooden Finisher Strips

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and unclip frame.

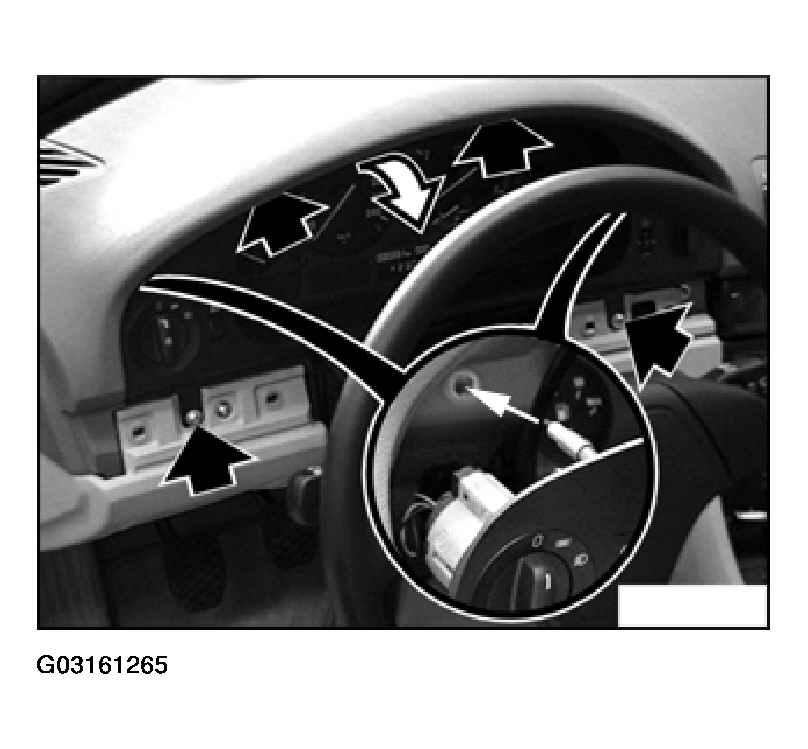

Fig 2: Removing Instrument Carrier Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws and fold instrument carrier forwards.

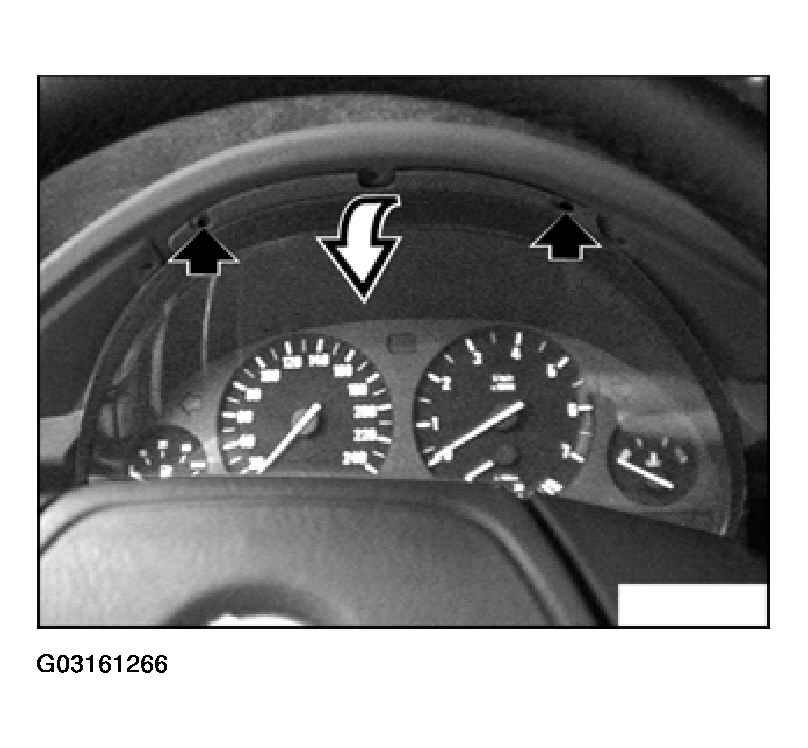

Fig 3: Move Instrument Carrier Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

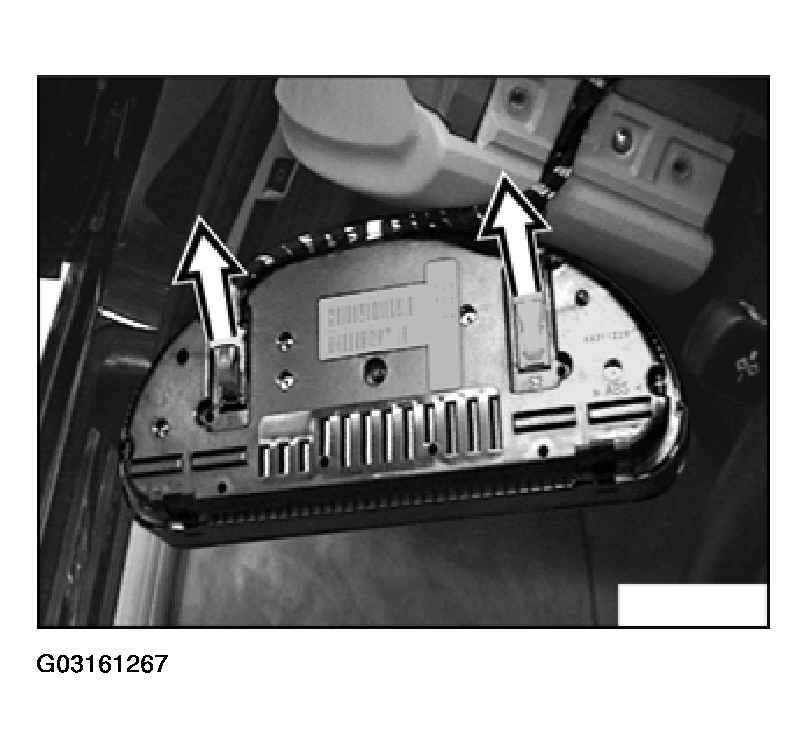

Fig 4: Disconnecting Harness Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
