65 52 510 Removing and installing on-board monitor

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

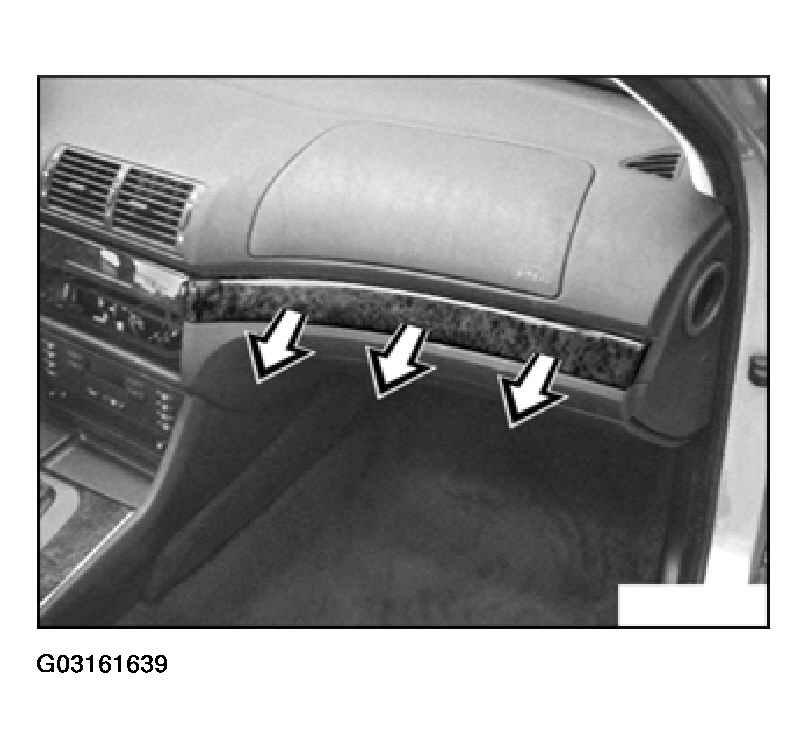

Pull off right wooden finisher.

Fig 1: Removing Right Wooden Finisher

G03161639

Courtesy of BMW OF NORTH AMERICA, INC.

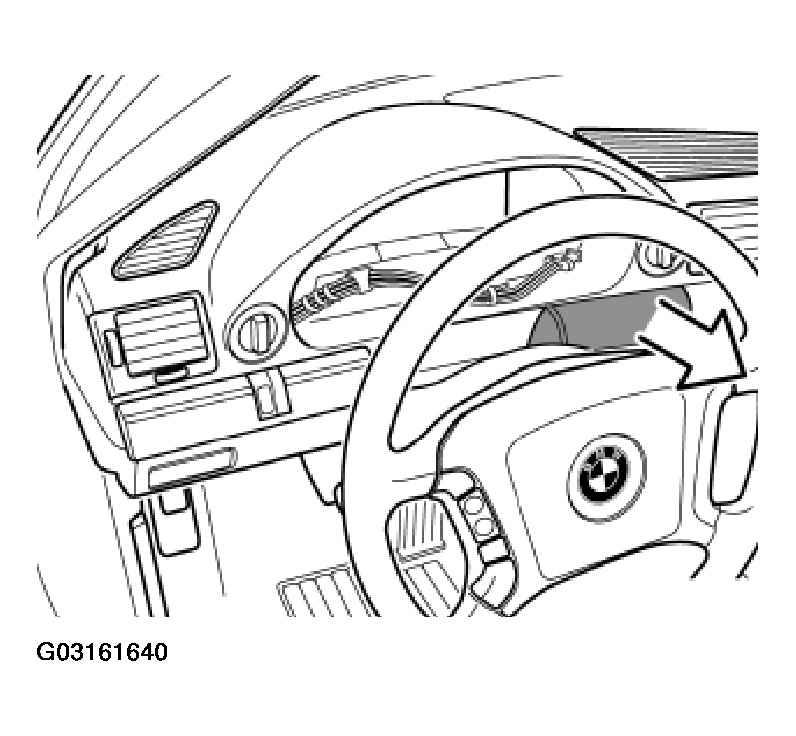

Remove top left wooden finisher by pulling upwards.

Fig 2: Removing Top Left Wooden Finisher

G03161640

Courtesy of BMW OF NORTH AMERICA, INC.

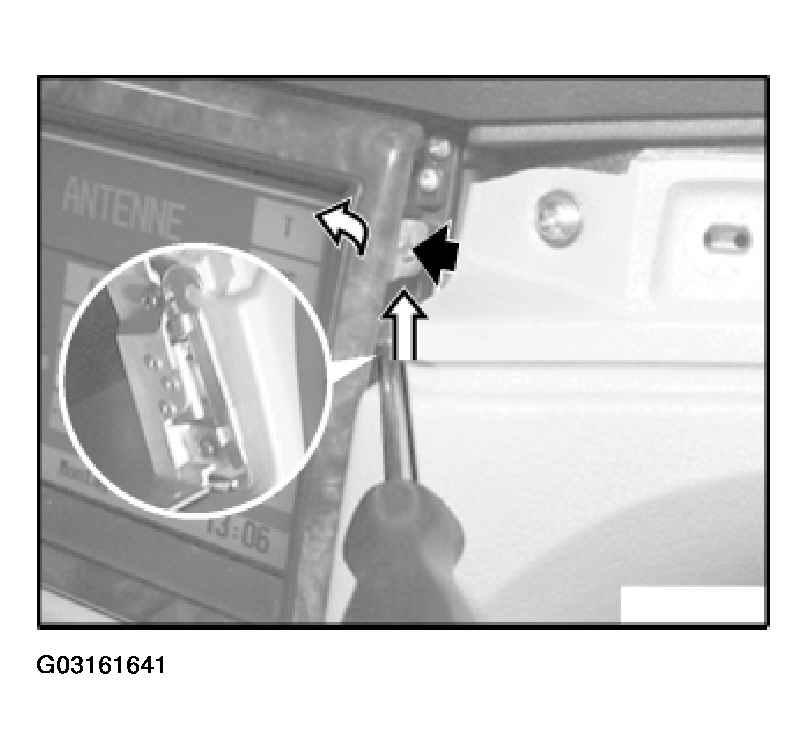

Unfasten left and right screw. Raise left and right levers with screwdriver and pull down finisher, then remove completely.

Fig 3: Removing On-Board Monitor Finisher

G03161641

Courtesy of BMW OF NORTH AMERICA, INC.

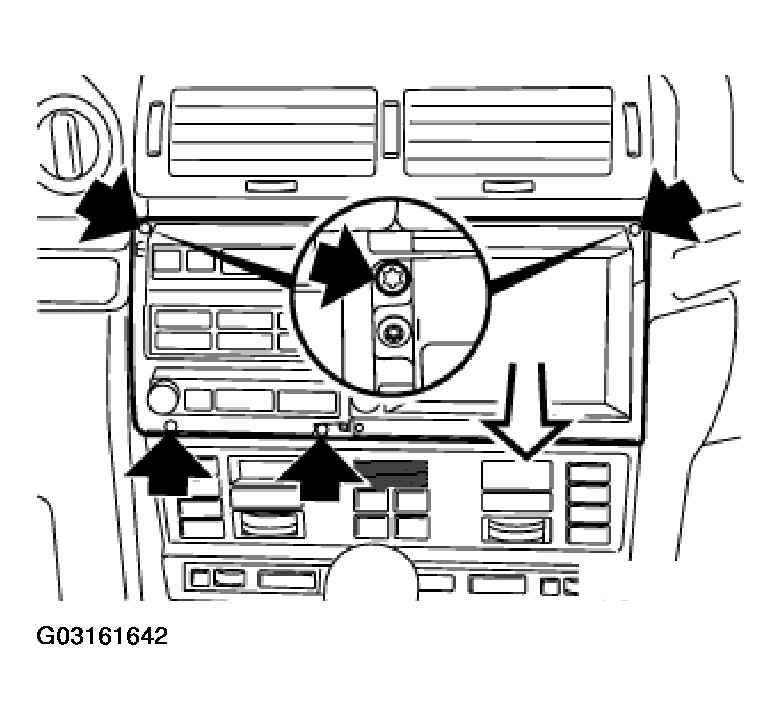

Unfasten screws.

Pull out on-board monitor towards front.

Fig 4: Removing On-Board Monitor

G03161642

Courtesy of BMW OF NORTH AMERICA, INC.

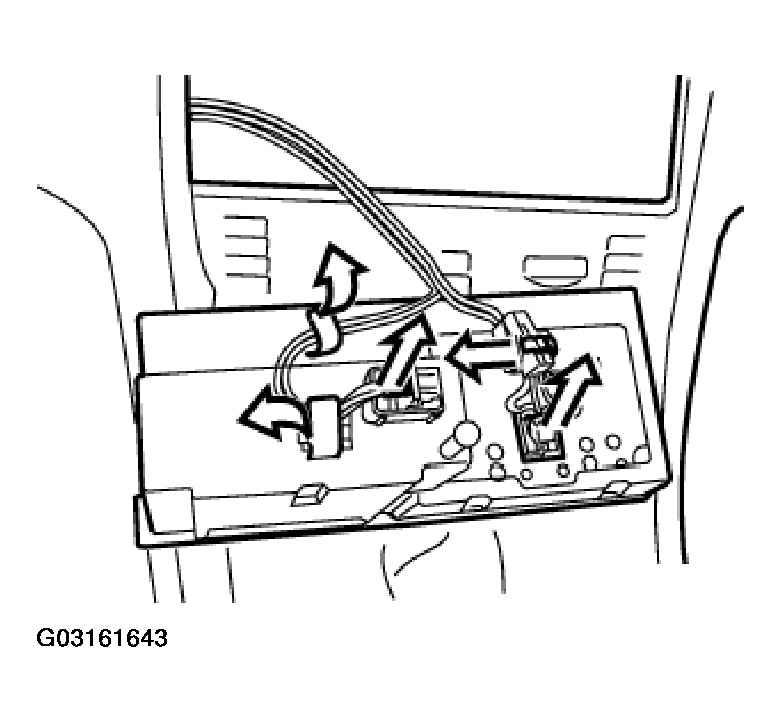

Remove plug and unfasten wiring harness from clips.

Fig 5: Disconnecting On-Board Monitor Wiring Harness

G03161643

Courtesy of BMW OF NORTH AMERICA, INC.
