17 11 031 Replacing fan cowl (M54)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove fan impeller with fan clutch from water pump, refer to 11 52 020 REMOVING AND INSTALLING/REPLACING FAN CLUTCH (S52/S54/M52/M52TU/M54/M56) .

Remove coolant expansion tank from fan cowl, refer to 17 11 100 REMOVING AND INSTALLING/REPLACING COOLANT EXPANSION TANK .

NOTE: Coolant lines remain connected.

Remove auxiliary water pump from fan cowl, refer to 64 11 262 REMOVING AND INSTALLING/REPLACING AUXILIARY WATER PUMP (ON FAN COWL) .

NOTE: Coolant lines remain connected.

Unclip AUC sensor.

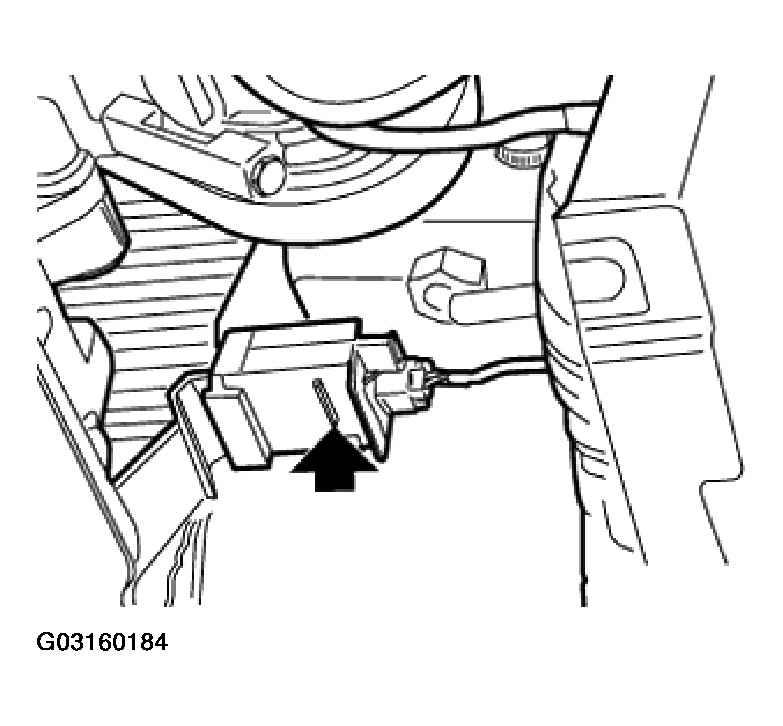

Fig 1: Uncliping AUC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expansion rivets on left and right.

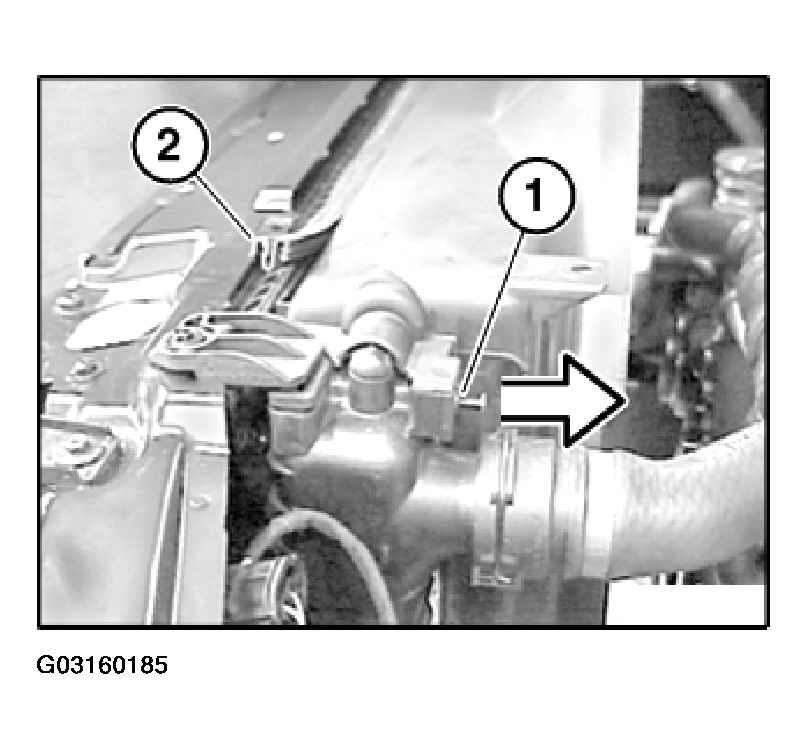

Fig 2: Removing Fan Cowl And Fan Impeller

Courtesy of BMW OF NORTH AMERICA, INC.

Detach sealing strip

Installation:

Pay attention to installation position of sealing strip.

Lift out fan cowl and fan impeller together.

Installation:

Attach fan cowl in retaining lugs at bottom and sides.

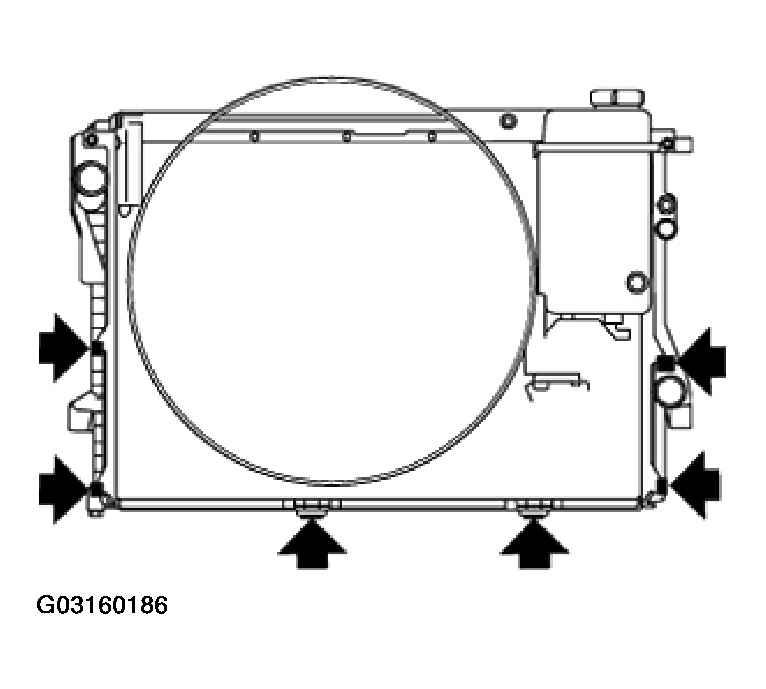

Fig 3: Installing Fan Cowl To Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
