64 11 262 Removing and installing/replacing auxiliary water pump (on fan cowl)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Follow instructions for working on cooling system, refer to 17 00... INSTRUCTIONS FOR WORKING ON COOLING SYSTEM .

Remove front splash guard.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Disconnect plug connection (1).

Disconnect water hoses (2).

Detach holder and remove auxiliary water pump.

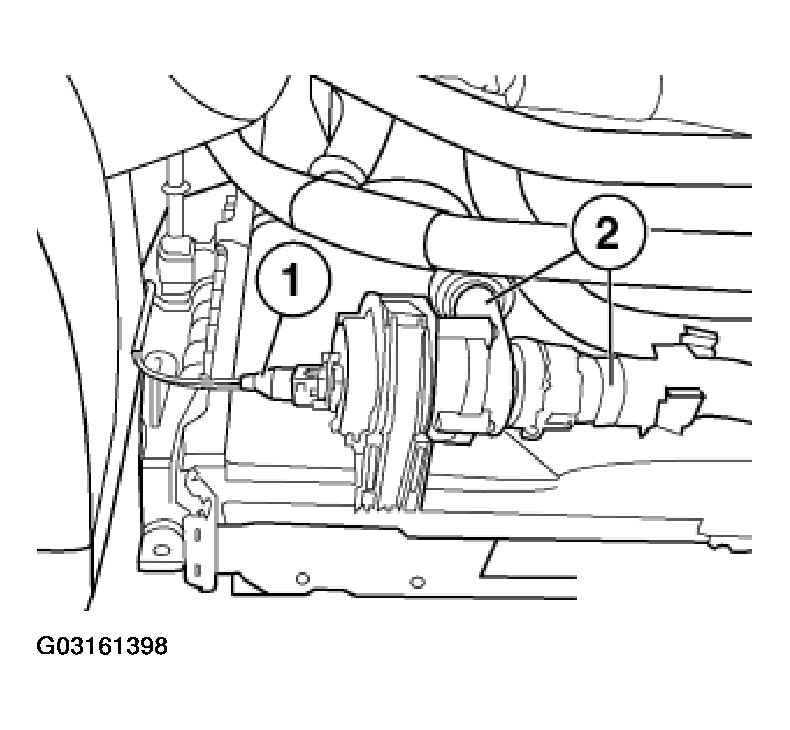

Fig 1: Replacing Auxiliary Water Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Filling and bleeding the cooling system, refer to 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATER LEAKS .
