17 11 100 Removing and installing/replacing coolant expansion tank

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Open cap on coolant expansion tank only after engine has cooled down.

Drain coolant to below level of coolant expansion tank only.

Follow instructions for working on cooling system.

CAUTION: Do not allow coolant to come into contact with eyes.

NOTE: For a better overview, this work step is shown from below. Lower car and carry out work from above.

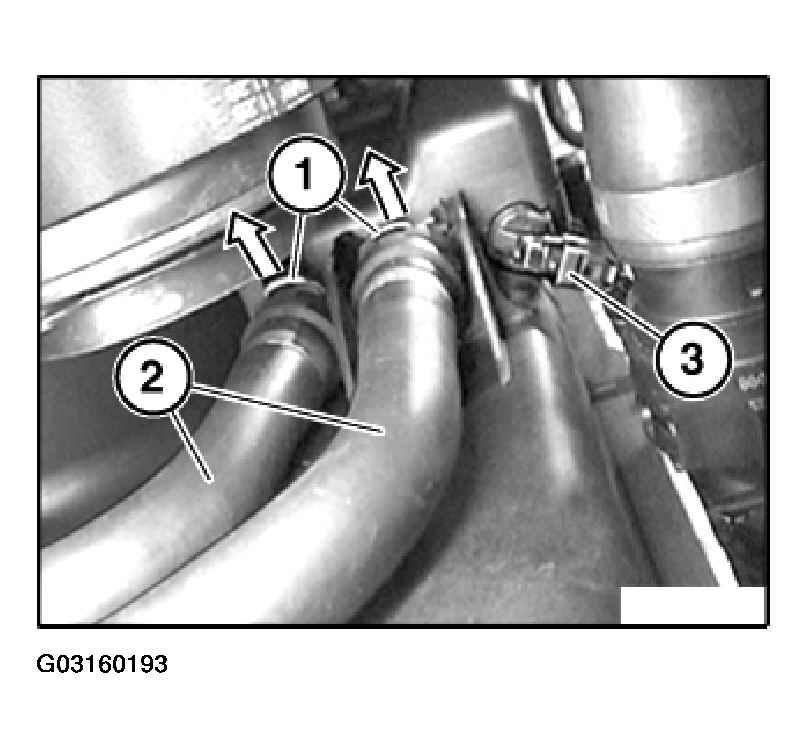

Pull out locks (1) of water hoses (2). Detach water hoses (2) from coolant expansion tank.

Recycling:

Catch and dispose of coolant.

Disconnect plug(3) from level sensor.

Fig 1: Disconnecting Plug From Level Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

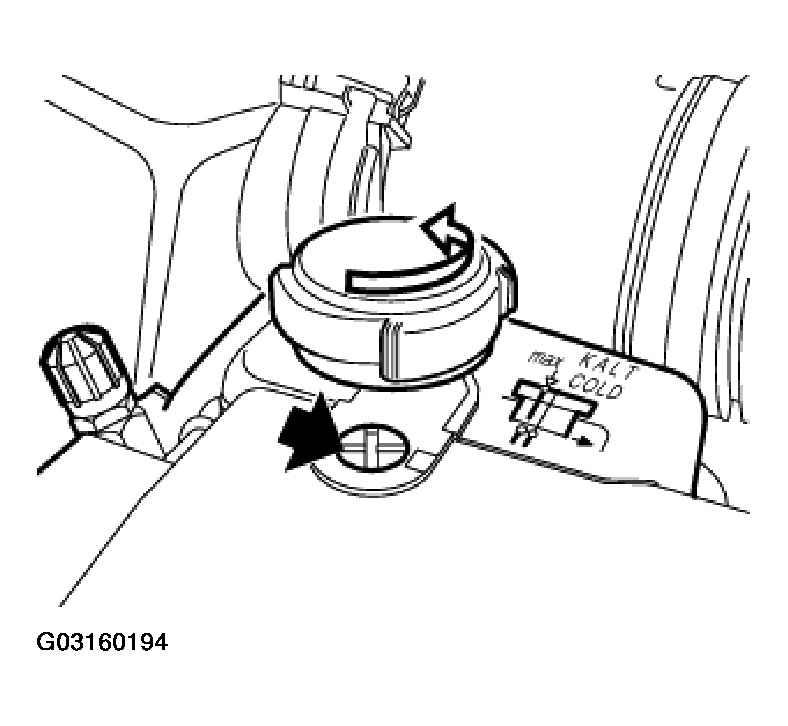

Remove vent plug completely.

Fig 2: Removing Vent Plug

Courtesy of BMW OF NORTH AMERICA, INC.

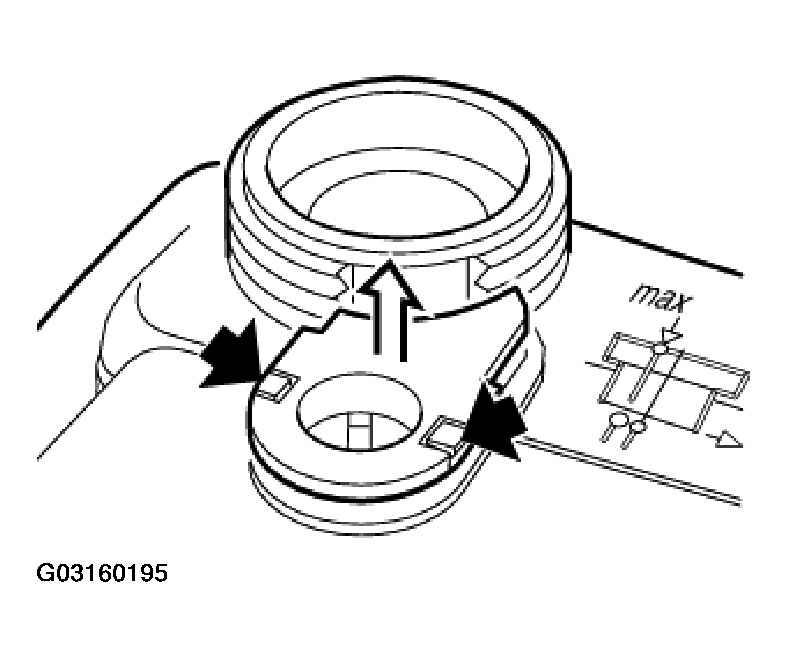

Unclip retaining cap.

Fig 3: Uncliping Retaining Cap

Courtesy of BMW OF NORTH AMERICA, INC.

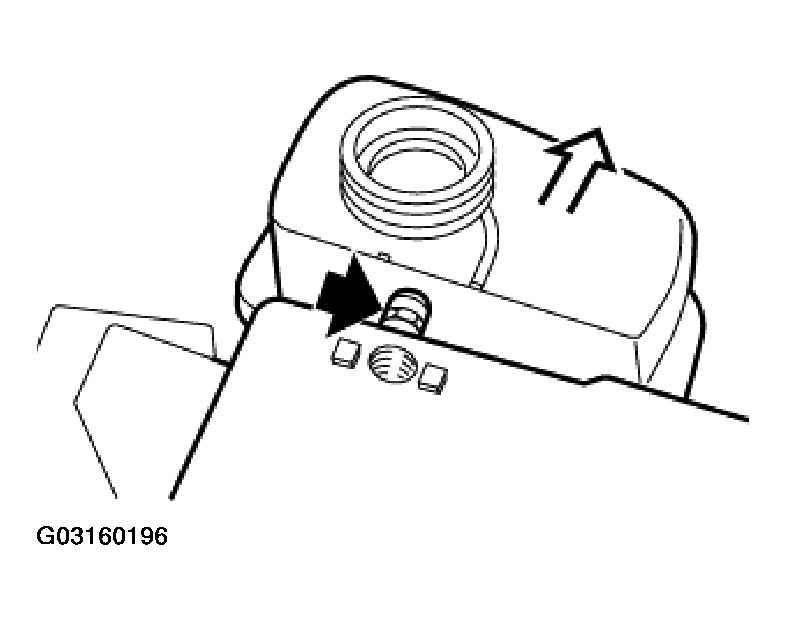

Pull expansion tank towards rear and detach vent hose.

Fig 4: Detaching Vent Hose

Courtesy of BMW OF NORTH AMERICA, INC.

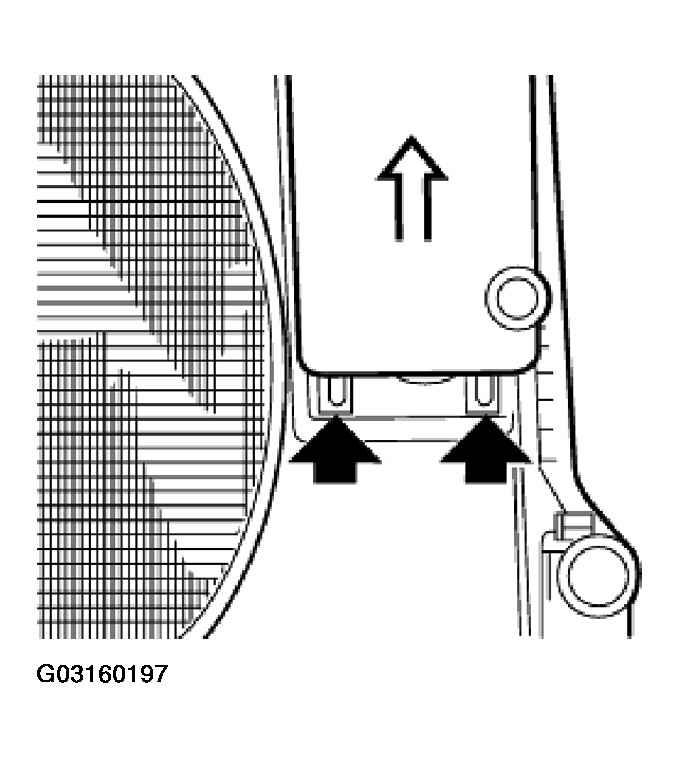

Lift coolant expansion tank out of lower retaining lugs.

Installation:

The retaining lugs on the expansion tank must locate in the fan cowl.

Top up with recommended coolant only.

Vent cooling system and check for leaks, refer to 17 00 039 BLEEDING COOLING SYSTEM AND CHECKING FOR WATER LEAKS .

Fig 5: Removing Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.
