51 41 000 Removing and installing left or right front door trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required:

00 9 317

WARNING: Model with side airbag:
Follow safety instructions for working on cars with airbag systems.

IMPORTANT: Do not use any sharp-edged tools to remove the panel - risk of damage to airbag.

Necessary preliminary tasks:

Release screw on inside door opener . See 51 21 225 Removing And Installing Or Replacing Inside Door Opener In Left Or Right Front Door .
Release screws on inside door handle . See 51 41 019 Removing And Installing/Replacing Door Handle On Door Trim Panel, Front Left Or Right .

Lever out airbag emblem (1) with special tool 00 9 317 and release screw underneath.

Unclip clips (2) of door trim panel with special tool 00 9 317.

Tightening torque, see 51 41 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

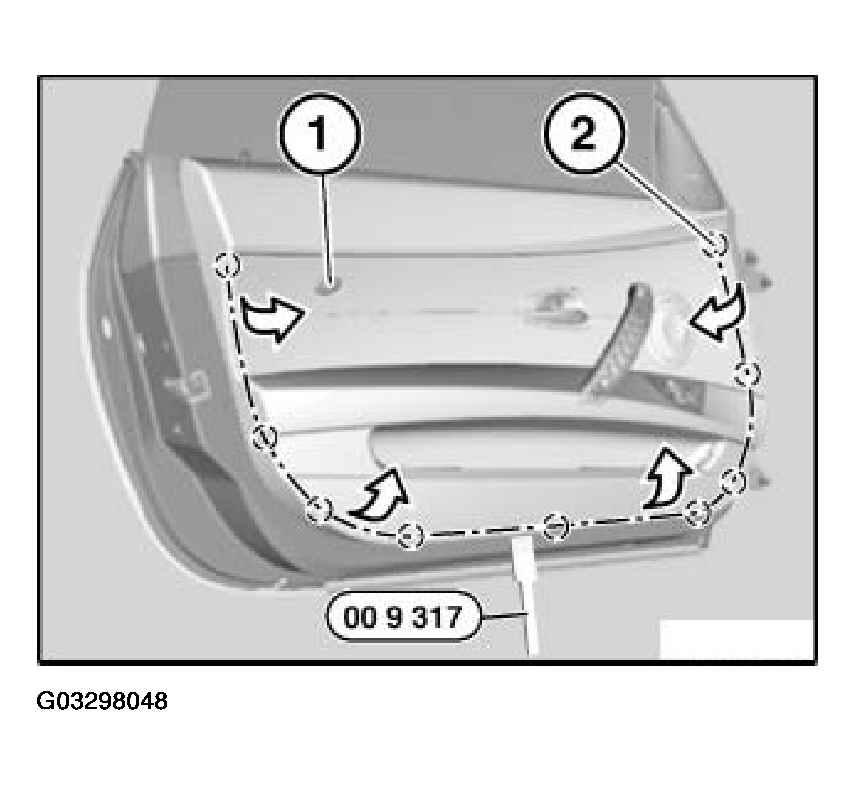

Fig 1: Unclipping Door Trim Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip door trim (1) at top.

Feed out door trim (1) from unlocking knob (2).

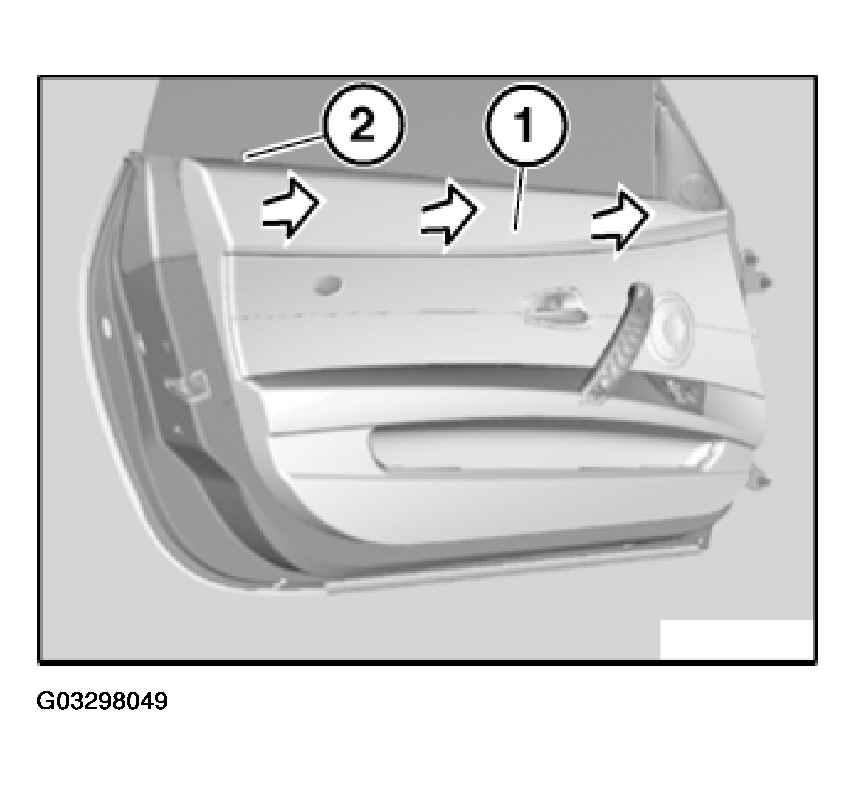

Fig 2: Feeding Out Door Trim From Unlocking Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plugs (2 and 3).

Version with loudspeaker:

If necessary, disconnect plug connection (1).

Version with handle lighting:

If necessary, disconnect plug connection (4).

Installation:

Lay cable (4) correctly around screwing point (5) (risk of damage).

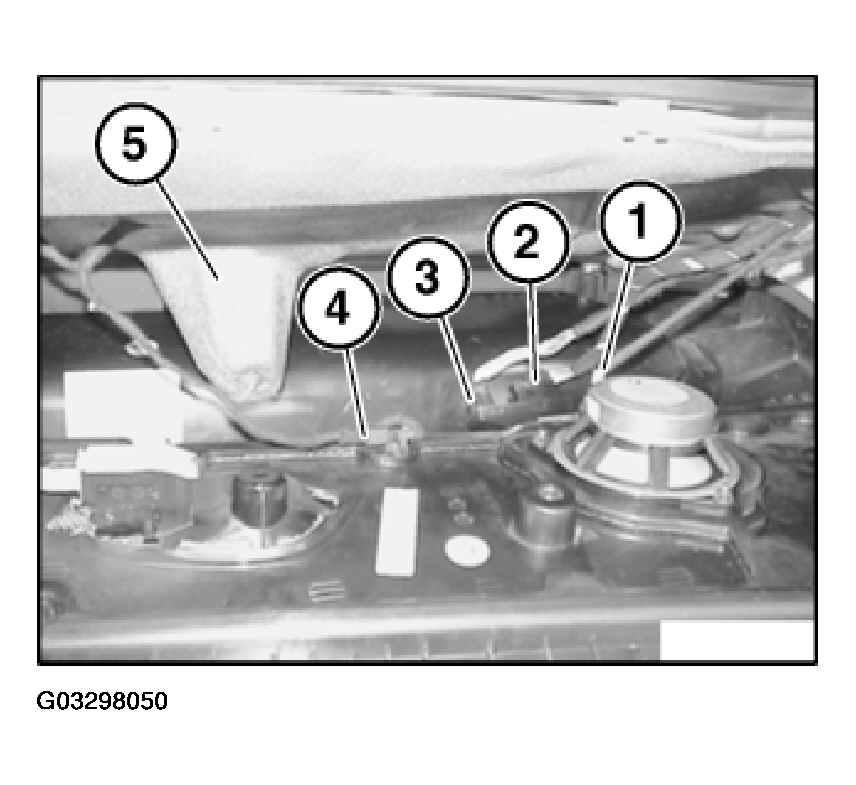

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

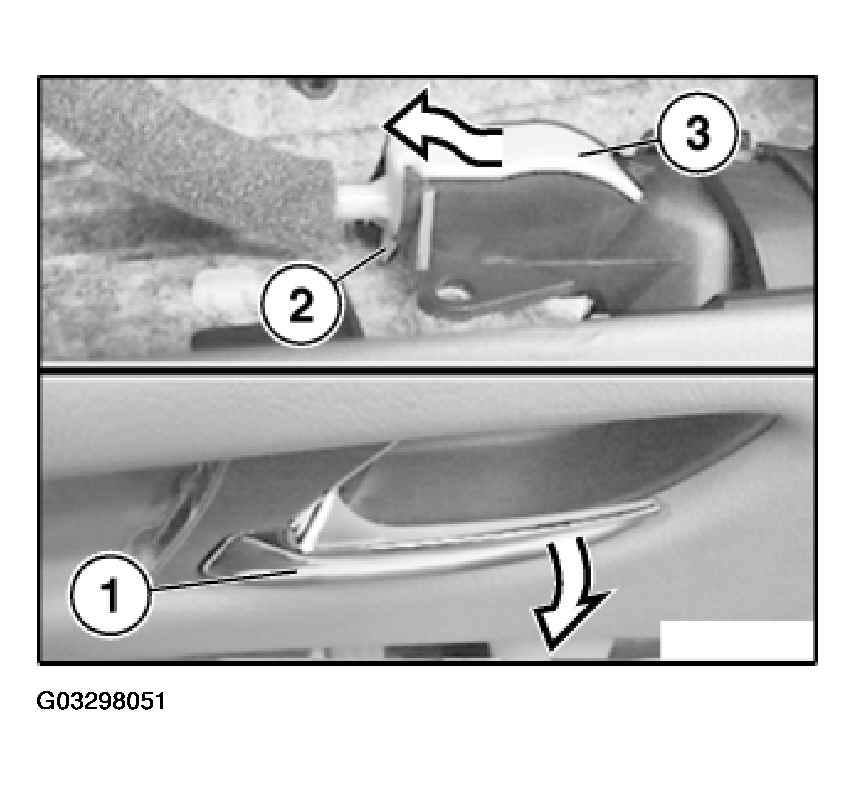

Unhook Bowden cable for release lever:

Tighten release lever (1).
Lever out lock (2).
Detach holder (3) towards rear/top

Fig 4: Tightening Release Lever (1), Levering Out Lock (2) & Detaching Holder (3)
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure Bowden cable is correctly positioned in holder (3).

Grease Bowden cable at holder (3).

For fitting, press release lever (1) fully against door trim.

Installation:

Clips (1) are longer than the other clips.

If necessary, replace faulty clips.

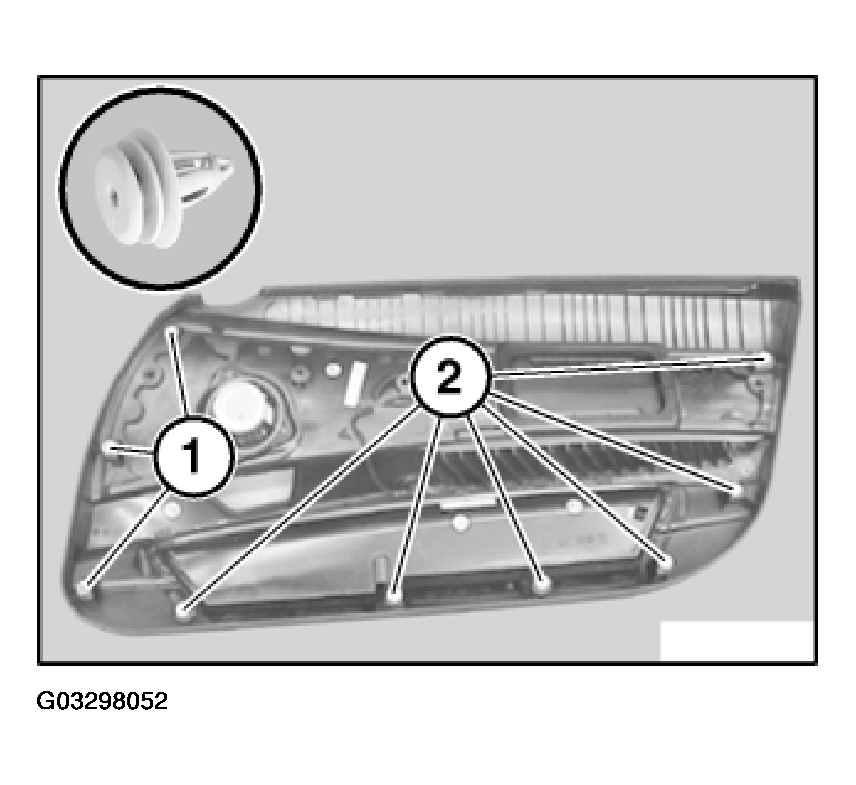

Fig 5: Identifying Clip Locations

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open door window.
Lock with vehicle key.
Check for ease-of-movement on retaining button linkage
If necessary, align linkages
