51 21 225 Removing and installing or replacing inside door opener in left or right front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

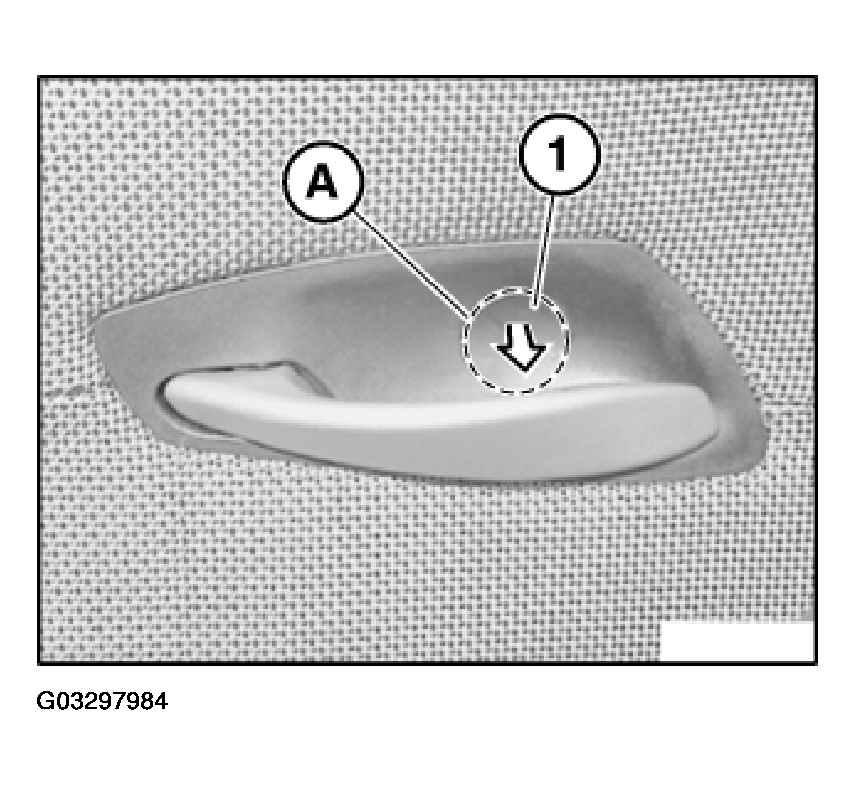

IMPORTANT: Do not detach trim (1) with tool at edge (A). Risk of damage!

Shape butyl into a ball and stick centrally on trim (1).

Pull out butyl ball together with trim in direction of arrow.

Release screw underneath.

Tightening torque, see 51 21 6AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Pulling Out Butyl Ball & Trim In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

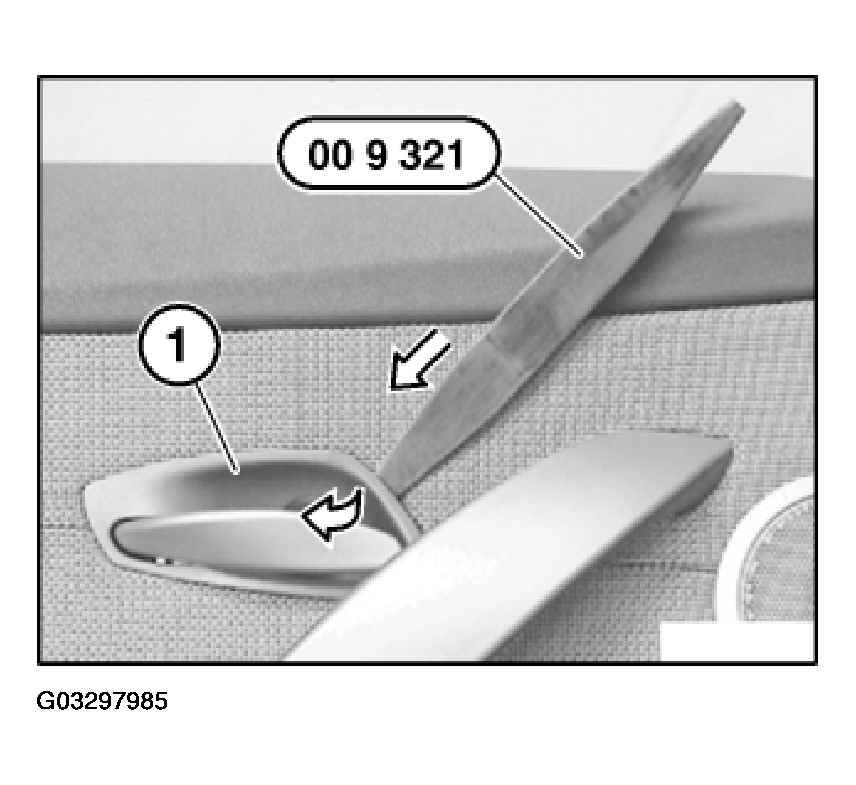

Press with special tool 00 9 321 against door opener (1) and lever out.

Carefully feed door opener forwards and downwards out of door trim.

IMPORTANT: If the door opener is pulled out too vigorously, there is a risk of damage to the door opener and the Bowden cable.

Fig 2: Levering Out Door Opener With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

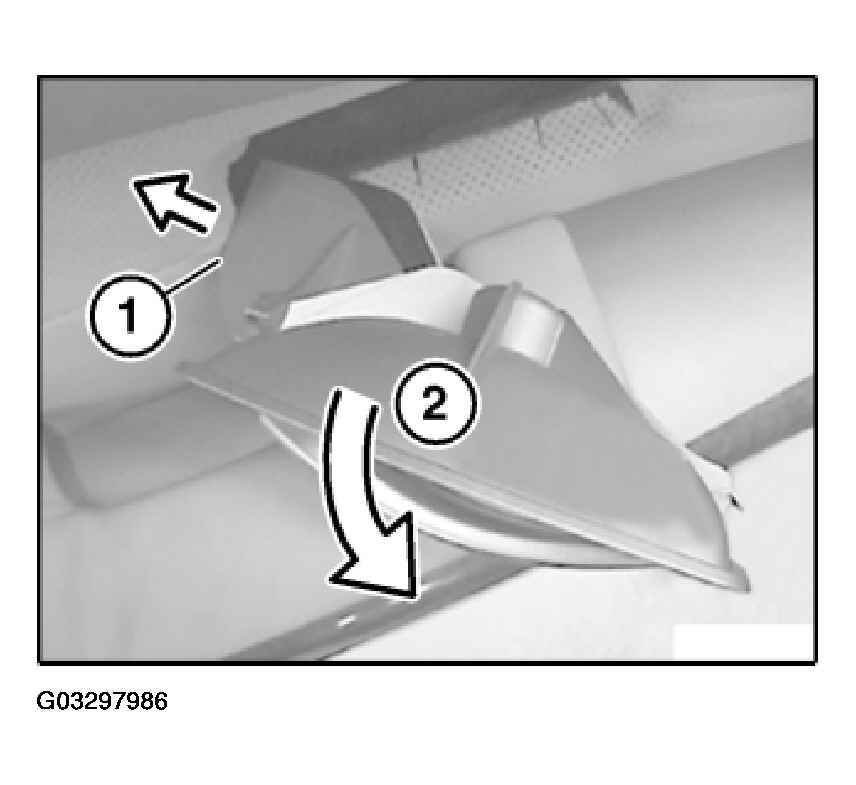

Unlock holder for Bowden cable (1) and remove door opener (2).

Fig 3: Unlocking Holder For Bowden Cable And Removing Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

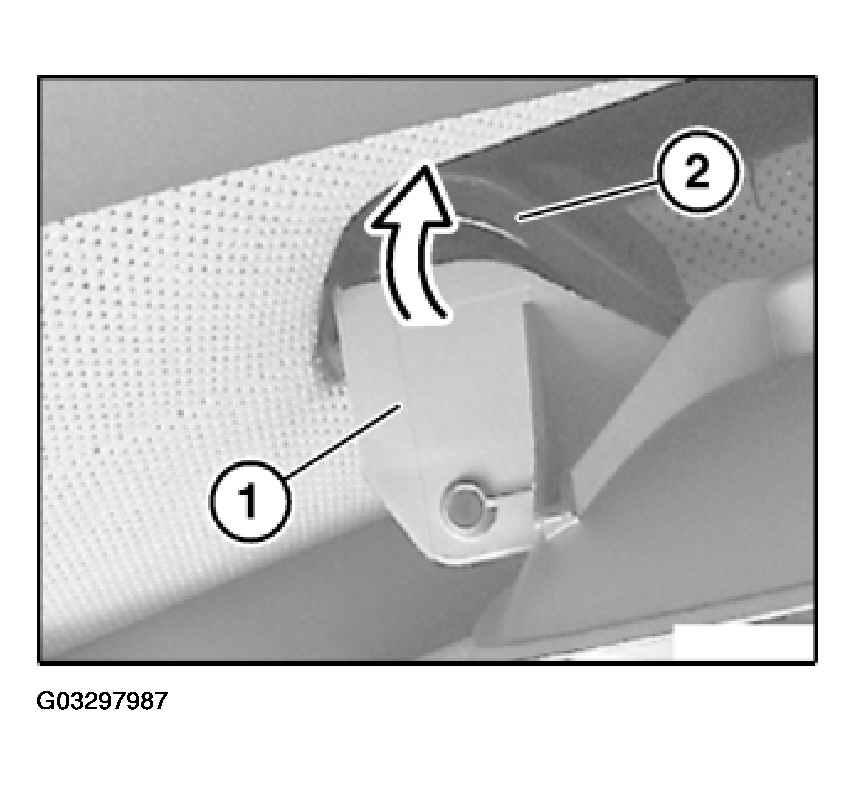

Make sure Bowden cable is correctly positioned in holder (2). Grease Bowden cable at holder (2).

Place door opener (1) at front on holder (2) and clip in.

Lever of door opener must be held "closed" in the process.

Fig 4: Placing Door Opener At Front On Holder

Courtesy of BMW OF NORTH AMERICA, INC.
