51 41 019 Removing and installing/replacing door handle on door trim panel, front left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Cover On Door Handle .

Loosen screws (1).

Installation:

Tightening torque, see 51 41 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

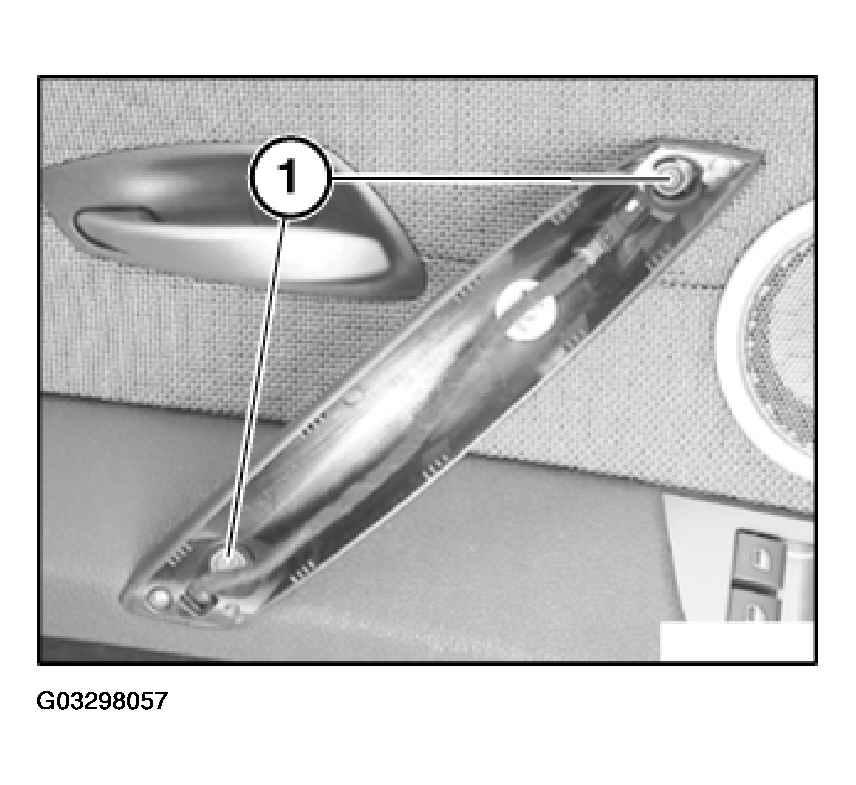

Fig 1: Loosening Screws

G03298057

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Loosen screws (1).

If necessary, lever out lock (2) and detach lamp (3).

Detach door handle (4) from door trim and if necessary feed out cable.

Installation:

Tightening torque, see 51 41 8AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

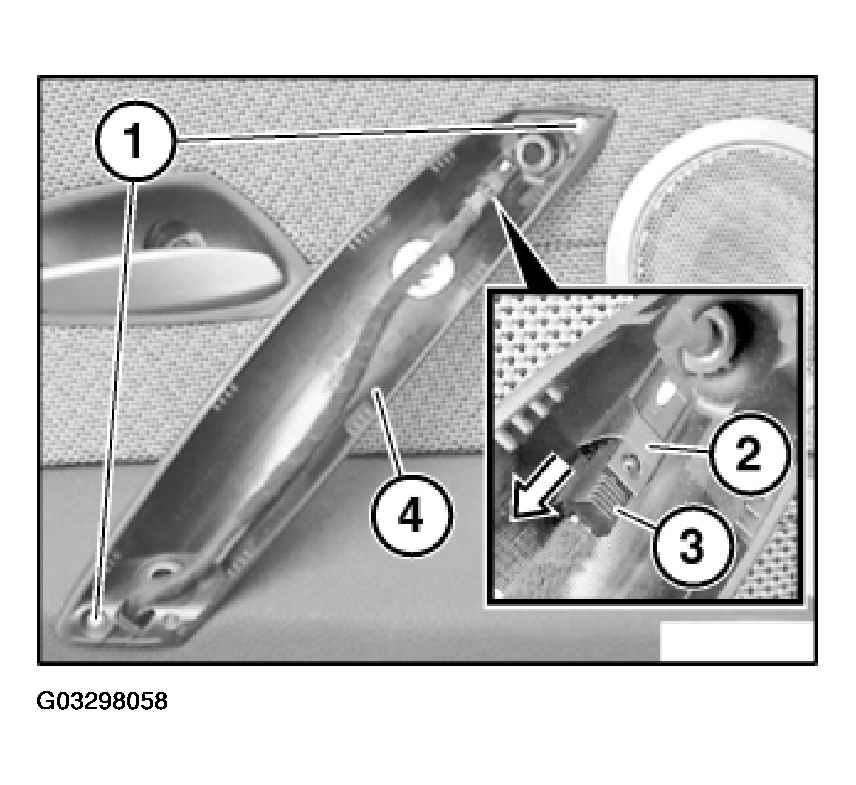

Fig 2: Detaching Door Handle From Door Trim

G03298058

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts on door handle (4) must not be damaged or missing:

Bores for screw connection
Bore for light
Sleeves

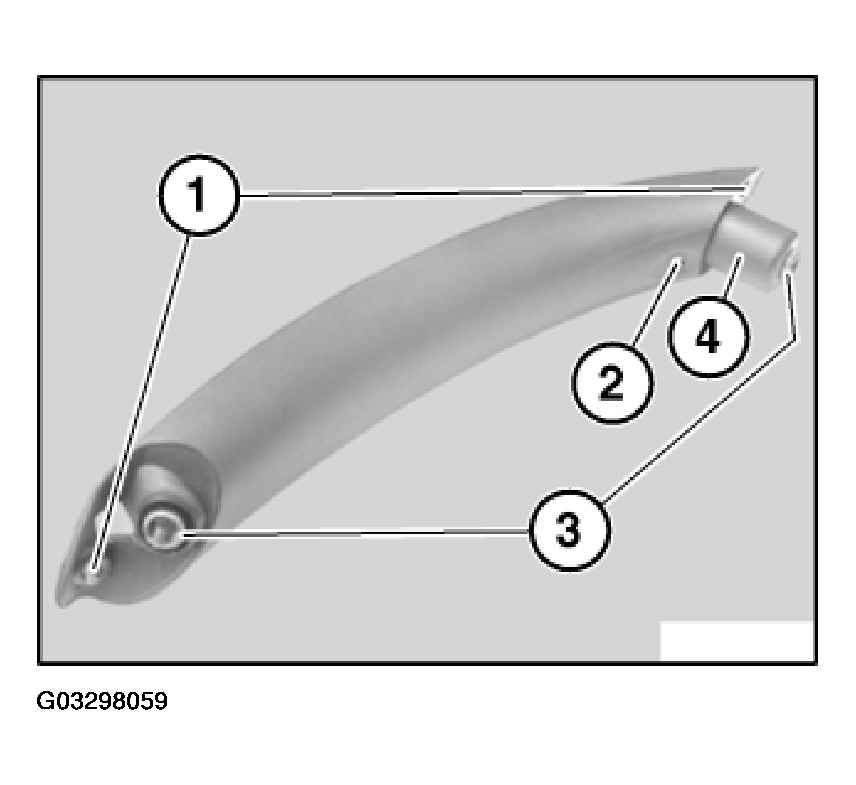

Fig 3: Identifying Door Handle Components
Courtesy of BMW OF NORTH AMERICA, INC.
