11 14 122 Removing and installing / replacing timing chain cover (W10/W11)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 8 401
11 8 402

Necessary Preliminary Tasks:

Remove vibration damper. Refer to 11 23 010 REMOVING AND INSTALLING OR REPLACING VIBRATION DAMPER .
Remove tensioning device for alternator drive belt. Refer to 11 28 020 REMOVING AND INSTALLING/REPLACING ALTERNATOR DRIVE BELT TENSIONER .
Remove impact tube.

Lower front end module.

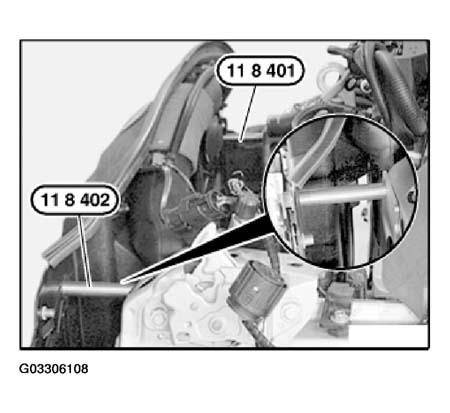

Attach special tools 11 8 401 and 11 8 402.

Fig 1: View Of Front End Module

Courtesy of BMW OF NORTH AMERICA, INC.

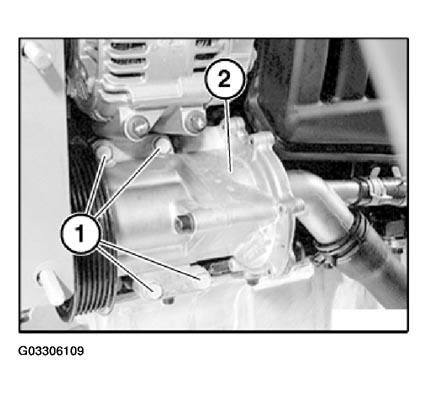

Undo screws (1) holding coolant pump and shift coolant pump (2) so that the front cover is accessible.

Tightening torque, refer to 11 12 10AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

Fig 2: Locating Coolant And Shift Coolant Pump Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

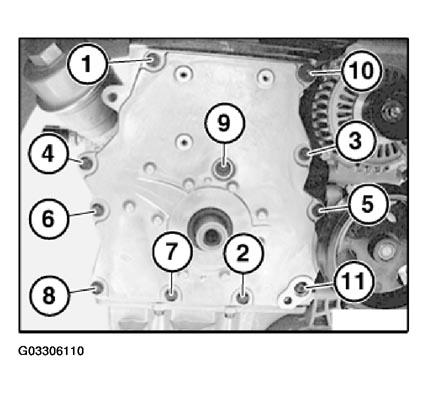

Remove screws of timing chain cover in the specified order (11-1).

Installation note:

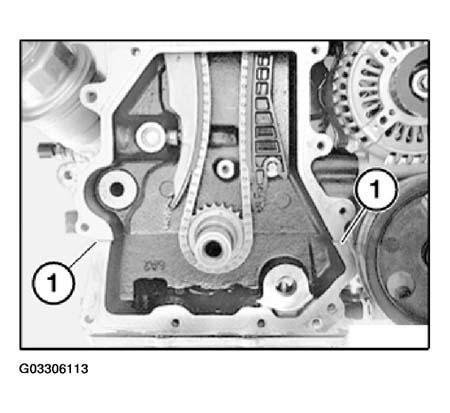

When the timing chain cover is mounted on the engine block, align flat surfaces of oil pump rotors with flat surfaces on crankcase.

Tighten screws of timing chain cover in the specified order (1-11).

Tightening torque, refer to 11 14 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

Fig 3: Identifying Removal Sequence Of Timing Chain Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

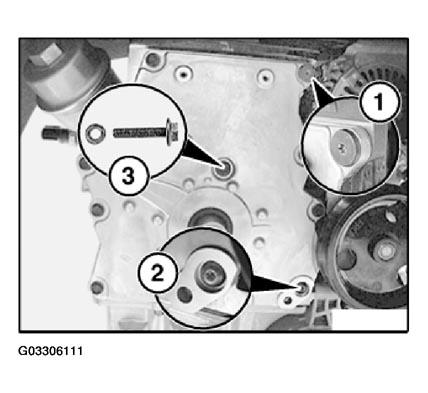

Note position of Torx shoulder screw (1), Torx round-head screw (2) and screw with seal (3).

Installation Note:

Clean sealing surfaces.

Replace seal of screw (3) and lubricate with clean engine oil.

Fig 4: Identifying Types Of Torx Screws

Courtesy of BMW OF NORTH AMERICA, INC.

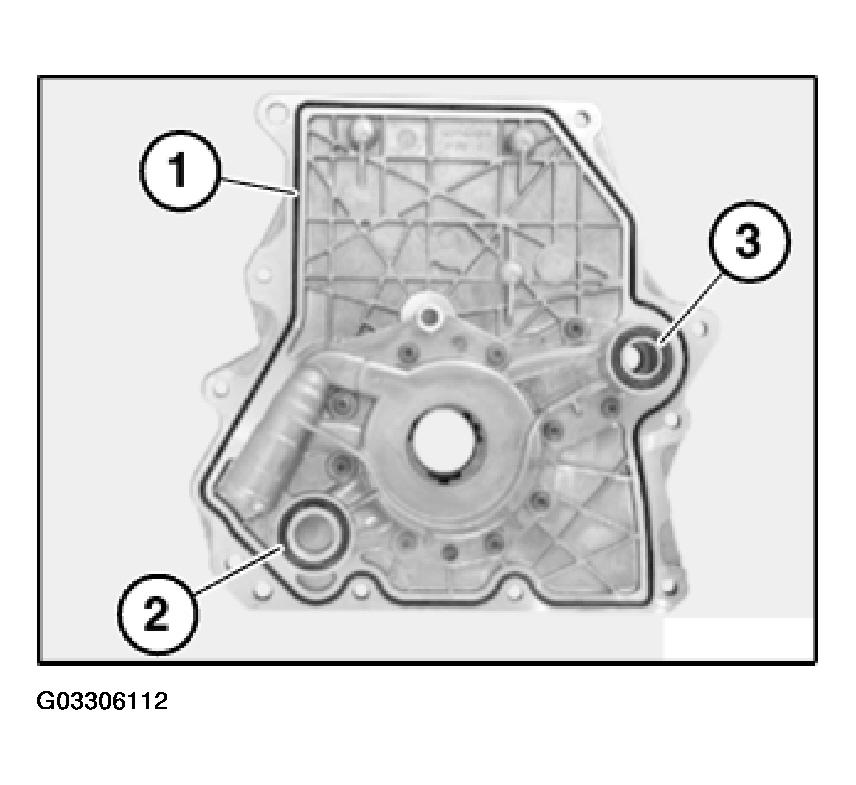

Remove seals of timing chain cover.

Cover seal.
Oil pump inlet seal.
Oil pump outlet seal.

Installation Note:

Clean all sealing surfaces and fit new seals.

Fig 5: Removing Seals Of Timing Chain Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Note:

Fill the rotor cavity with engine oil before installing the oil pump.

Fig 6: View Of Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check oil level and top up as required.

Start engine and check for leaks.
