11 23 010 Removing and installing or replacing vibration damper

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see ENGINE- SPECIAL TOOLS - COOPER (1.6L) R50/W10 .

Special Tools Required:

11 2 150
11 8 241
11 8 242
11 8 270
11 8 310
11 8 320

Necessary Preliminary Tasks:

Remove right wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
Remove right wheel arch liner. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH LINER .
Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (W10) .

Remove central bolt of vibration damper with special tools 11 2 150 and 11 8 320.

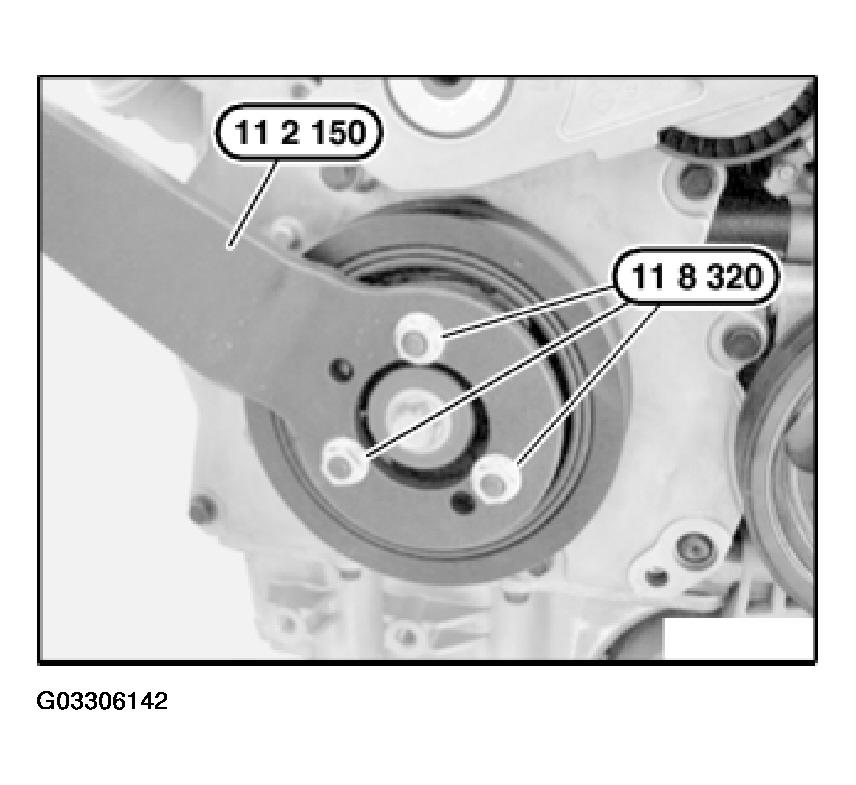

Fig 1: Removing Central Bolt Of Vibration Damper

G03306142

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 11 8 270 and tighten down.

Installation:

Central bolt of crankshaft belt pulley.

Tightening torque, refer to 11 23 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .

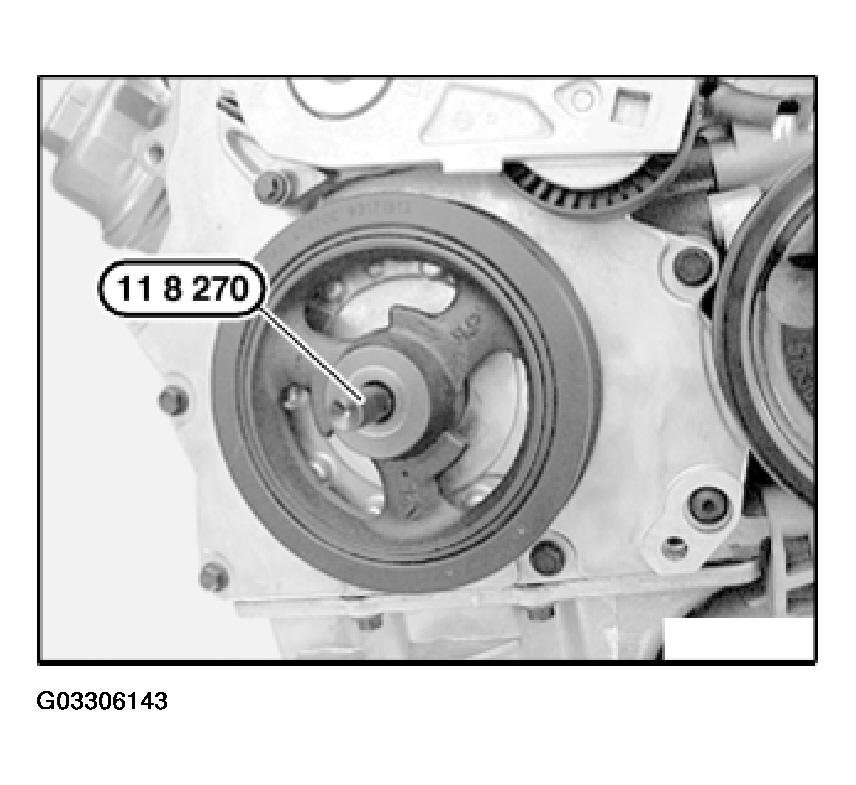

Fig 2: Installing Central Bolt Of Crankshaft Belt Pulley

G03306143

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 8 310 (three-claw extractor tool) and remove belt pulley.

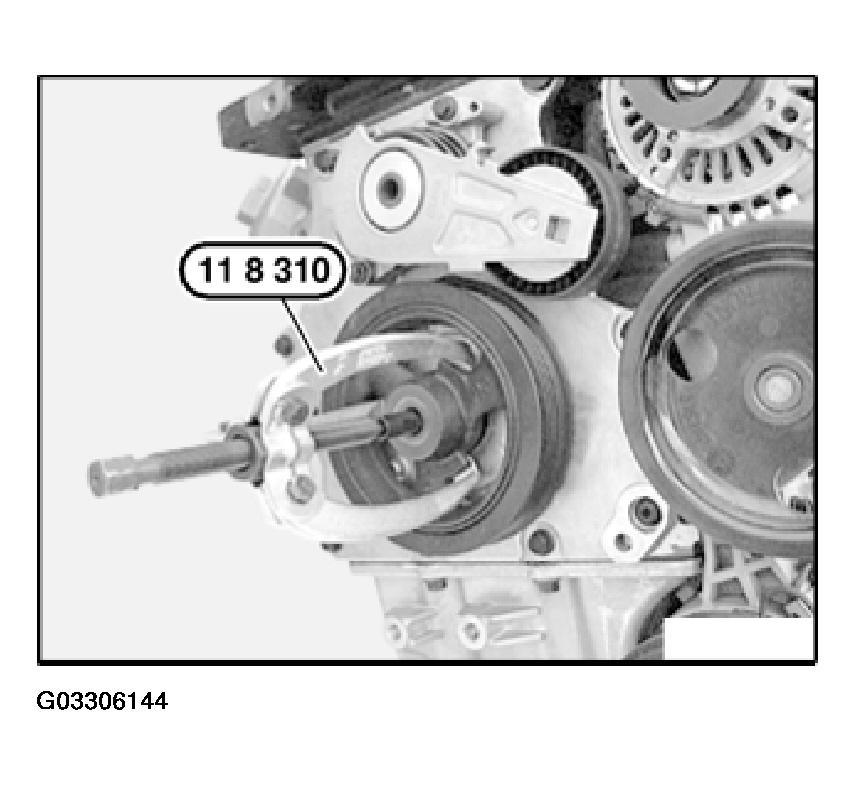

Fig 3: Removing Belt Pulley

G03306144

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 8 270 and install special tool 11 8 242.

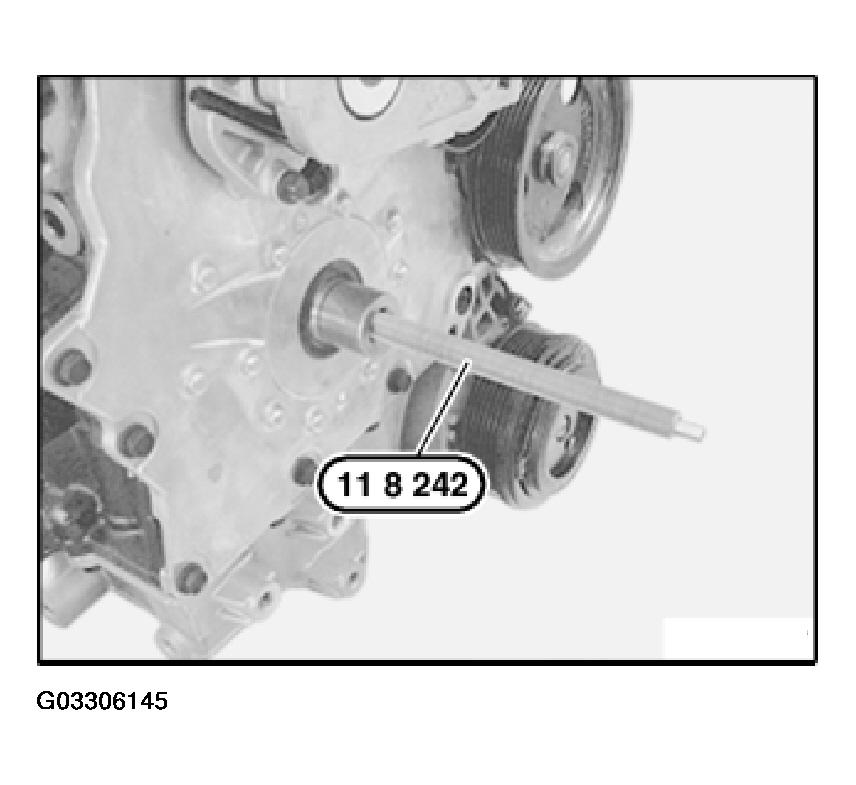

Fig 4: View Of Special Tool 11 8 242

G03306145

Courtesy of BMW OF NORTH AMERICA, INC.

Reinstall belt pulley with special tool 11 8 242 and 11 8 241.

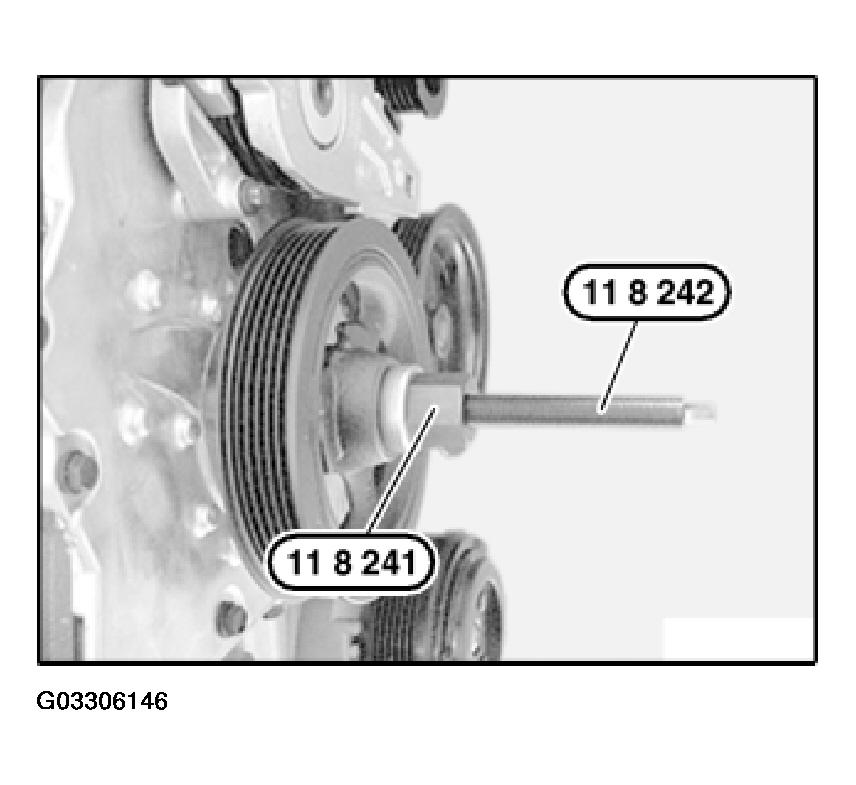

Fig 5: Identifying Belt Pulley With Special Tool 11 8 242 And 11 8 241

G03306146

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
