11 28 020 Removing and installing/replacing alternator drive belt tensioner
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove alternator drive belt. Refer to 11 28 010 REPLACING ALTERNATOR DRIVE BELT (W10) .
- Unscrew and remove splash guard. Refer to 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION (ENGINE) .
- Remove wheel. Refer to 36 10 300 REMOVING OR INSTALLING FRONT OR REAR WHEEL .
- Remove wheel arch trim. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH LINER .

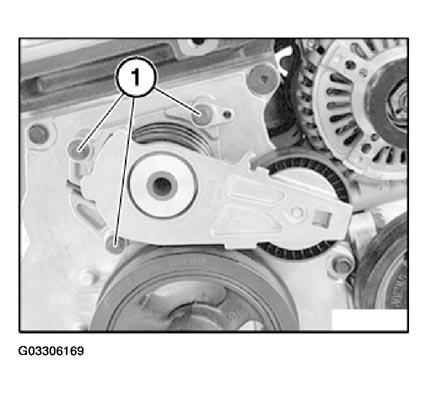

Release retaining screws (1) on tensioner.
Tightening torque, refer to 11 28 1AZ in ENGINE - TIGHTENING TORQUES- COOPER (1.6L) R50/W10 .
IMPORTANT:
Do not disconnect pretensioned spring (risk of injury).
Assemble engine.
