64 11 222 Replacing limit switch for fan of heater/air conditioner

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove panel on center console on right. See 51 16 220 REPLACING WOODEN FINISHERS FOR ODDMENTS TRAY (CENTER CONSOLE)

Remove cover from underside of glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

Unfasten plug connection and disconnect.

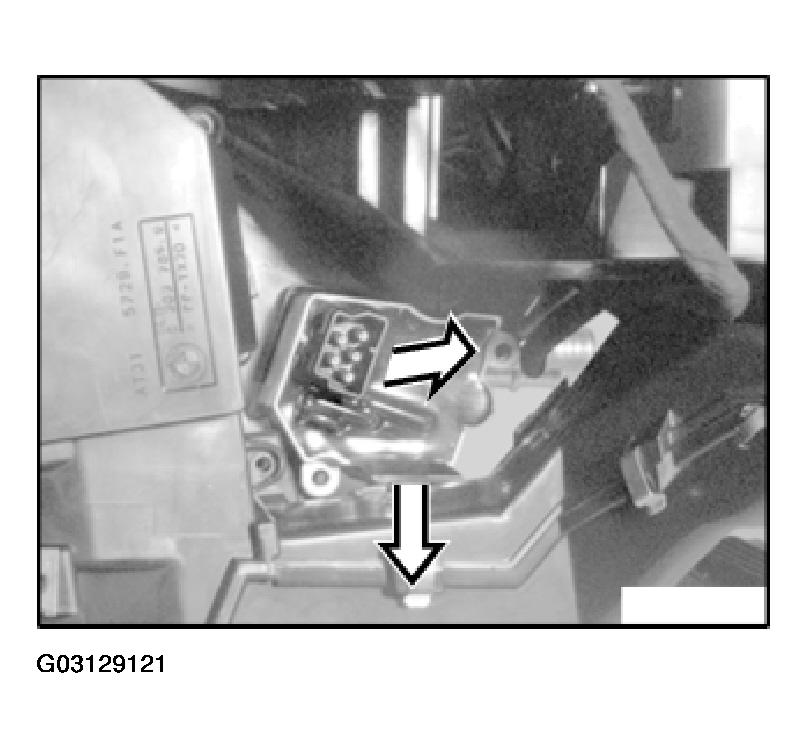

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock limit switch for fan and pull out in direction of arrow.

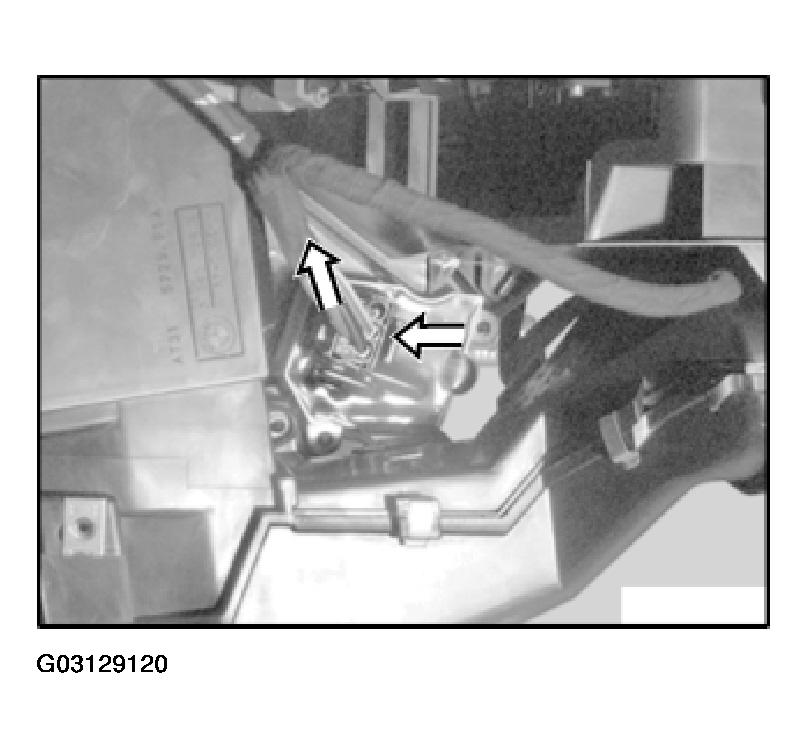

Fig 2: Removing Fan Limit Switch

Courtesy of BMW OF NORTH AMERICA, INC.
