51 16 360 Removing and installing right glove box

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

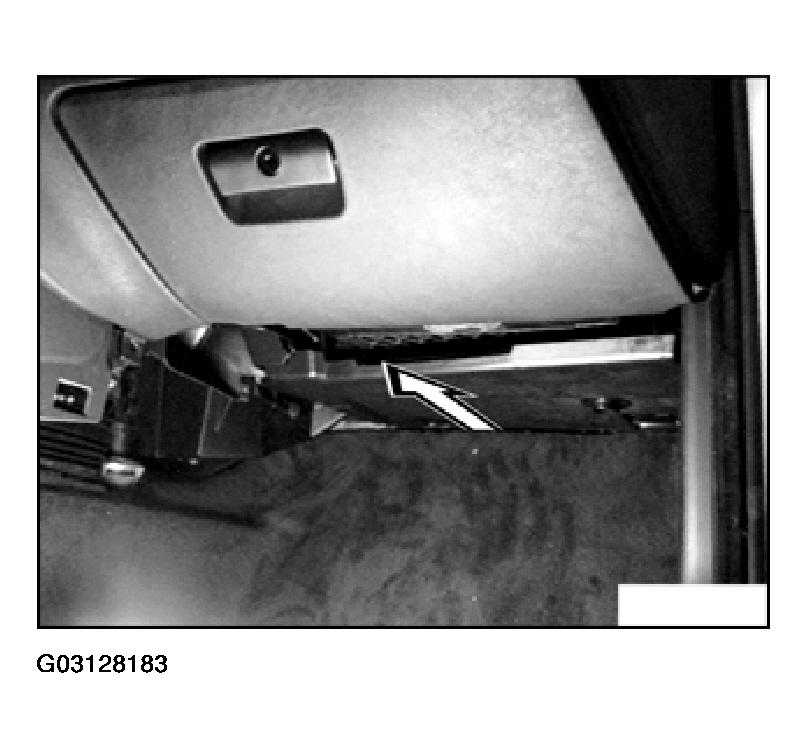

Pull trim panelling backwards to remove.

Fig 1: Removing Trim Panelling

Courtesy of BMW OF NORTH AMERICA, INC.

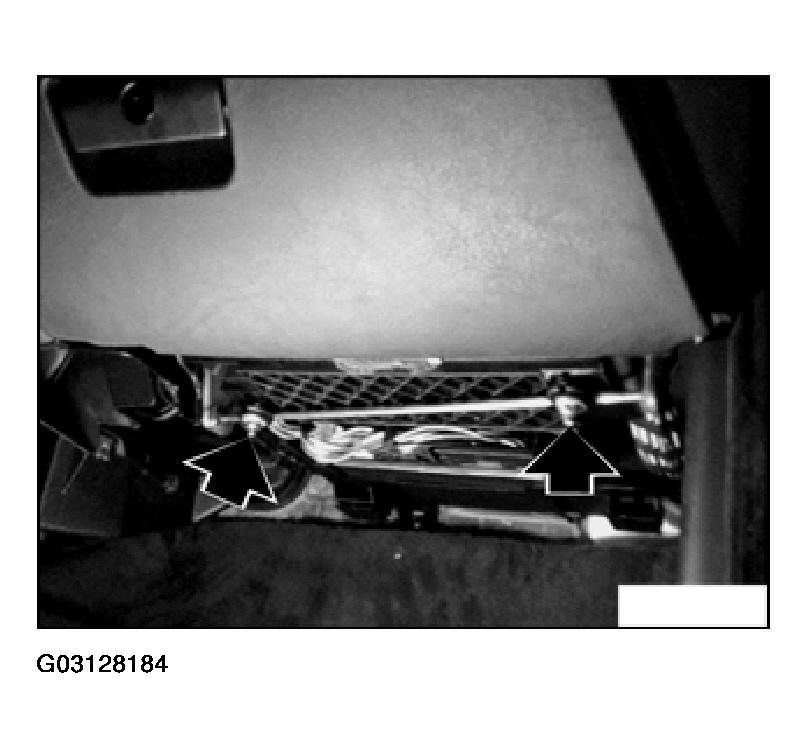

Loosen bolts.

Fig 2: Loosening Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

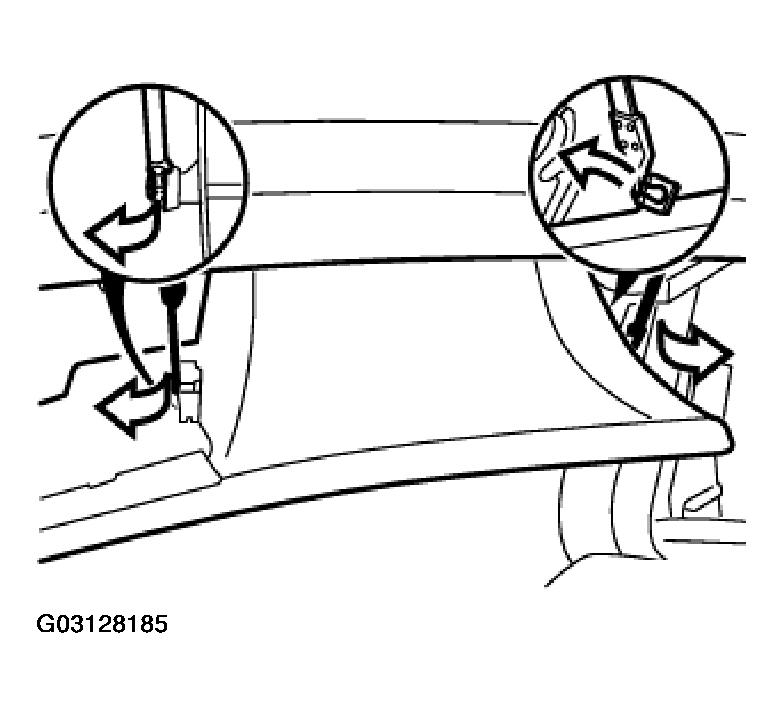

Unclip shock absorber and catch band. Pull glovebox backwards to remove.

Fig 3: Removing Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

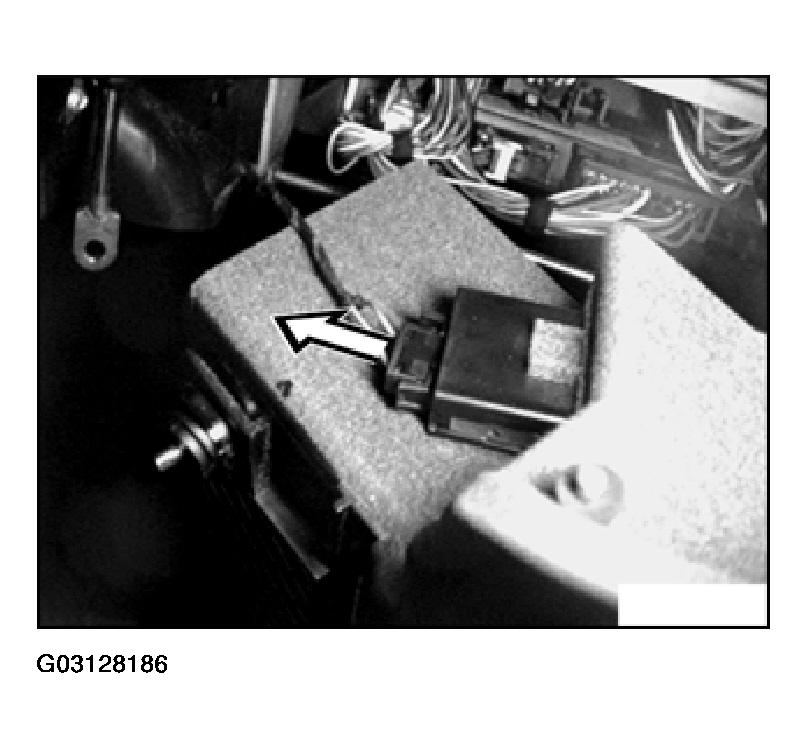

Twist glovebox, remove connector from accumulator light and remove glovebox.

Fig 4: Removing Connector From Accumulator Light

Courtesy of BMW OF NORTH AMERICA, INC.
