51 16 220 Replacing wooden finishers for oddments tray (center console)

Remove finisher for preselector lever, refer to 51 16 210 REMOVING AND INSTALLING / REPLACING FINISHER FOR PRESELECTOR LEVER .

Remove fresh-air grill in rear, refer to 64 22 190 REMOVING AND INSTALLING / REPLACING FRESH-AIR GRILL IN REAR OF CAR .

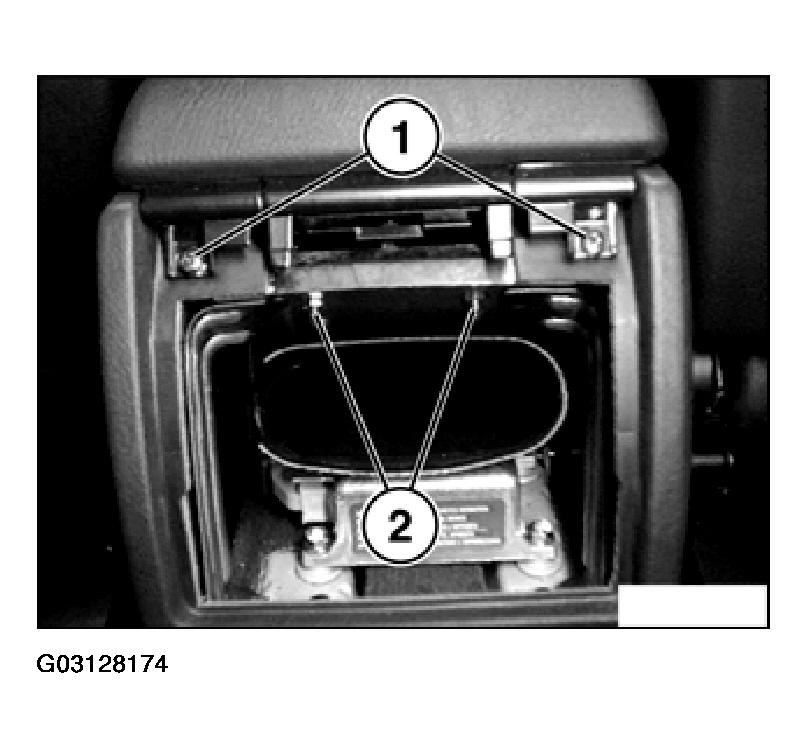

Unfasten screws (1) and nuts (2).

Fig 1: Unfastening Screws & Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

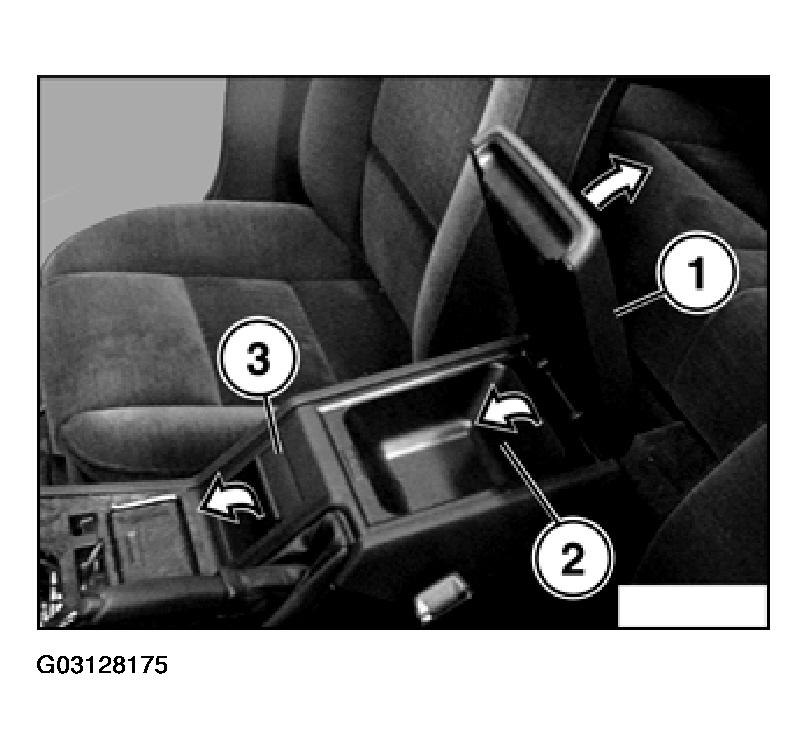

Open cover (1) and remove center console (2) (rear) at same time. Open glovebox (3) and unclip.

Fig 2: Removing Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

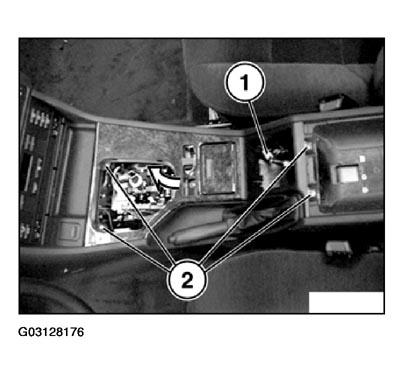

Unfasten plug connection (1) (ashtray lighting). Unfasten screws (2) and remove center console insert.

Fig 3: Removing Center Console Insert

Courtesy of BMW OF NORTH AMERICA, INC.

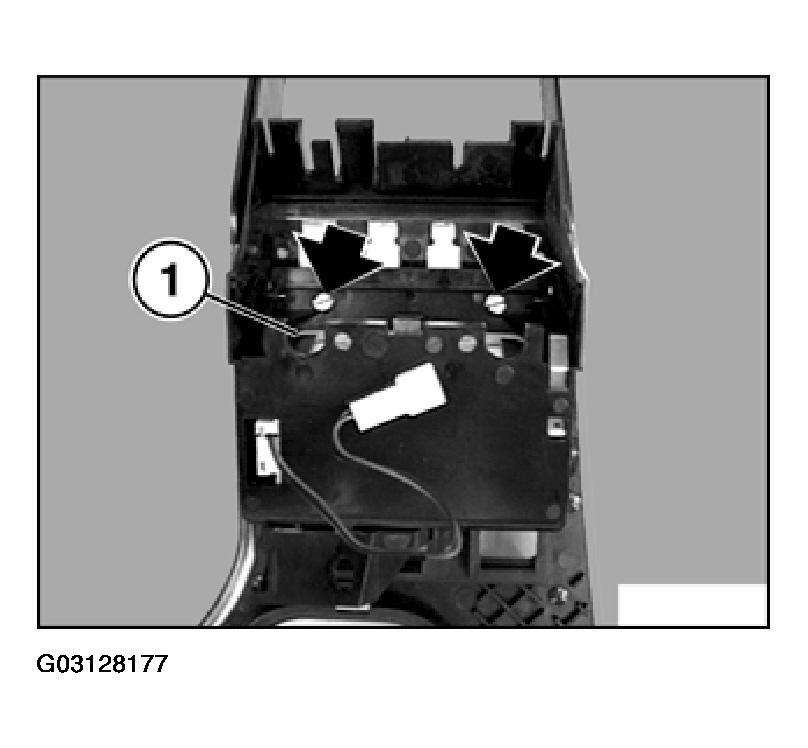

Unfasten screws.

Open ashtray cover (1) and remove.

Fig 4: Removing Ashtray Cover

Courtesy of BMW OF NORTH AMERICA, INC.

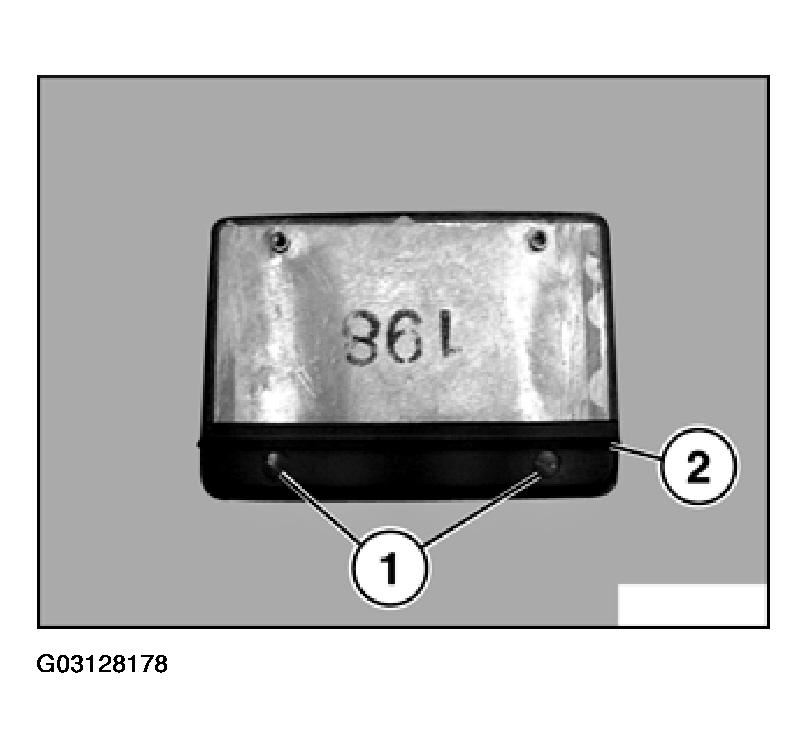

Unfasten screws (1) and remove insert (2) from wooden finisher strip.

Fig 5: Removing Insert From Wooden Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

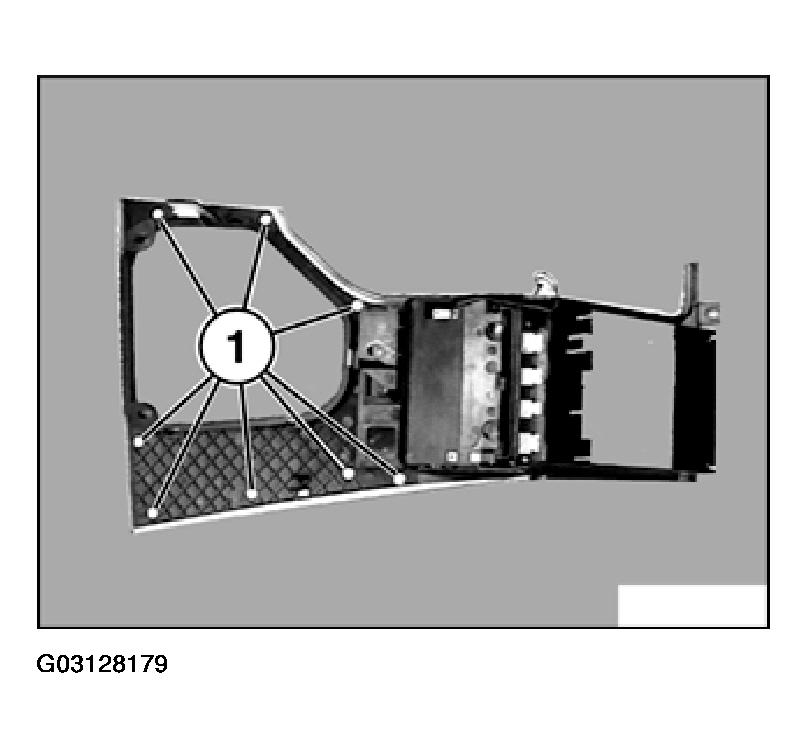

Unfasten screws (1) and remove wooden finisher strip.

Fig 6: Removing Wooden Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

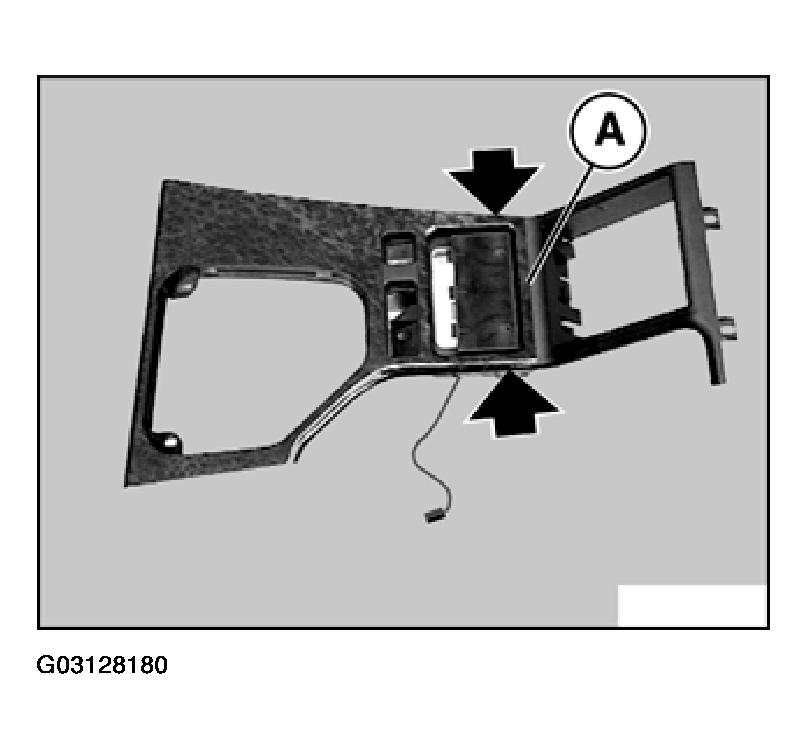

Install wooden finisher strip. Gap (A) should be as small as possible, then tighten down screws.

Fig 7: Installing Wooden Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.
