51 43 150 Removing and installing or replacing trim for left or right door column (bottom)

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove front entrance cover strip, refer to 51 47 000 REMOVING AND INSTALLING / REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Remove rear entrance cover strip, refer to 51 47 030 REMOVING AND INSTALLING / REPLACING THE REAR (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

Partially remove mucket from B-column finisher.

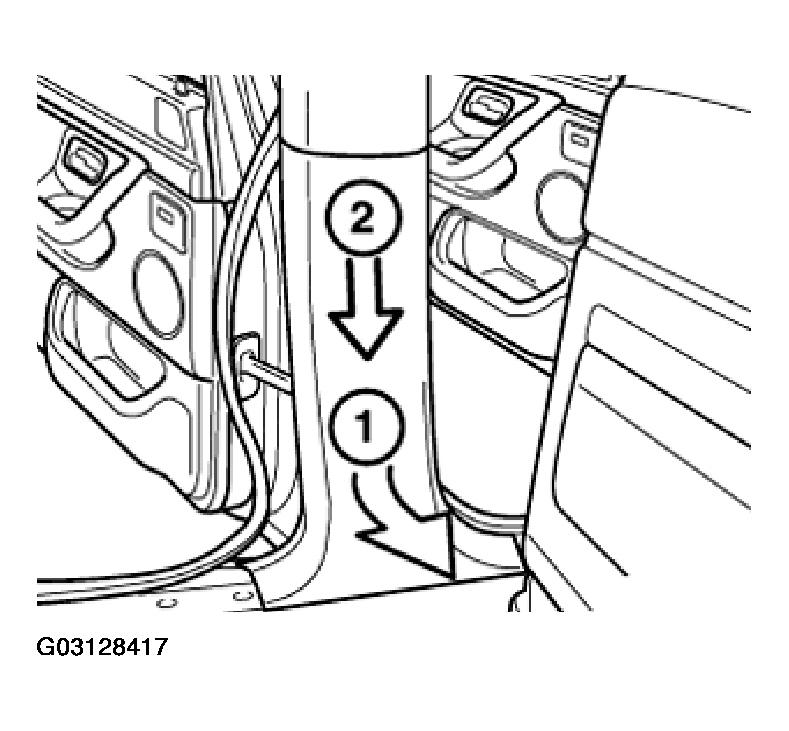

Unclip trim on lower door column (1) by pulling inwards, then pull downwards (2) to remove.

Fig 1: Unclipping Trim On Lower Door Column

Courtesy of BMW OF NORTH AMERICA, INC.

Version up to 9/97:

Installation:

If necessary, replace damaged clips and / or grommets.

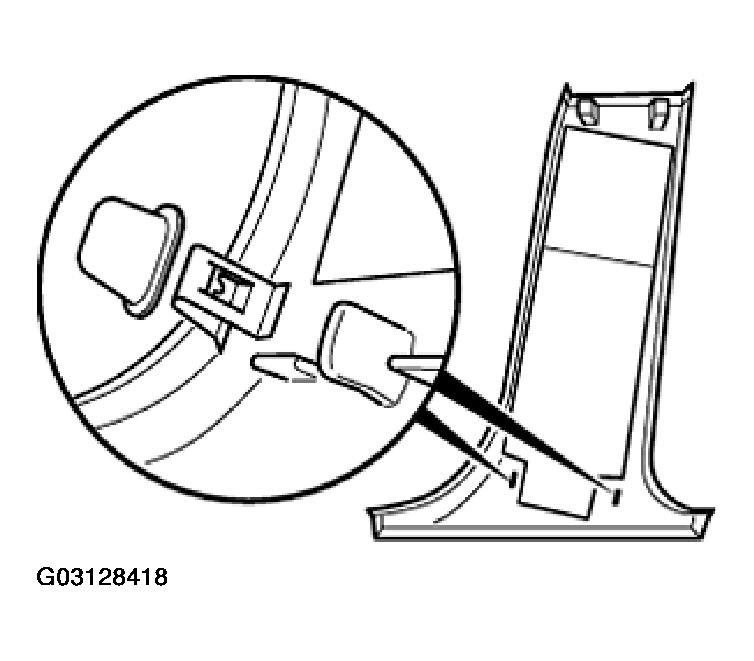

Fig 2: Replacing Damaged Clips & / Or Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 9/97:

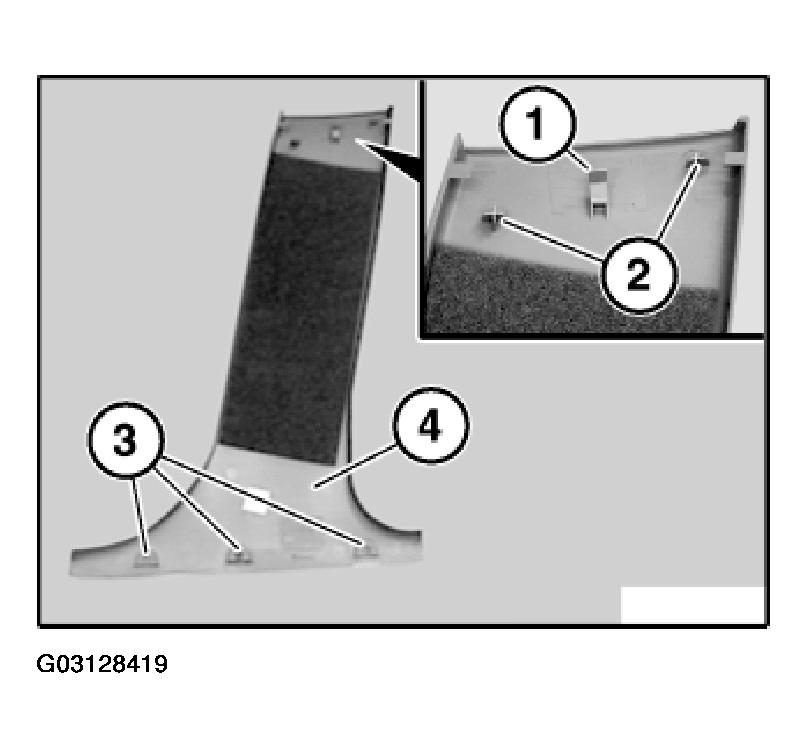

Following parts of trim panel (4) must not be damaged:

Holder for trim panel, top
Bracket
Clip mount

Fig 3: Identifying Holder For Trim Panel, Top

Courtesy of BMW OF NORTH AMERICA, INC.
