51 47 000 Removing and installing / replacing the front (inside) left or right rocker panel strip

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

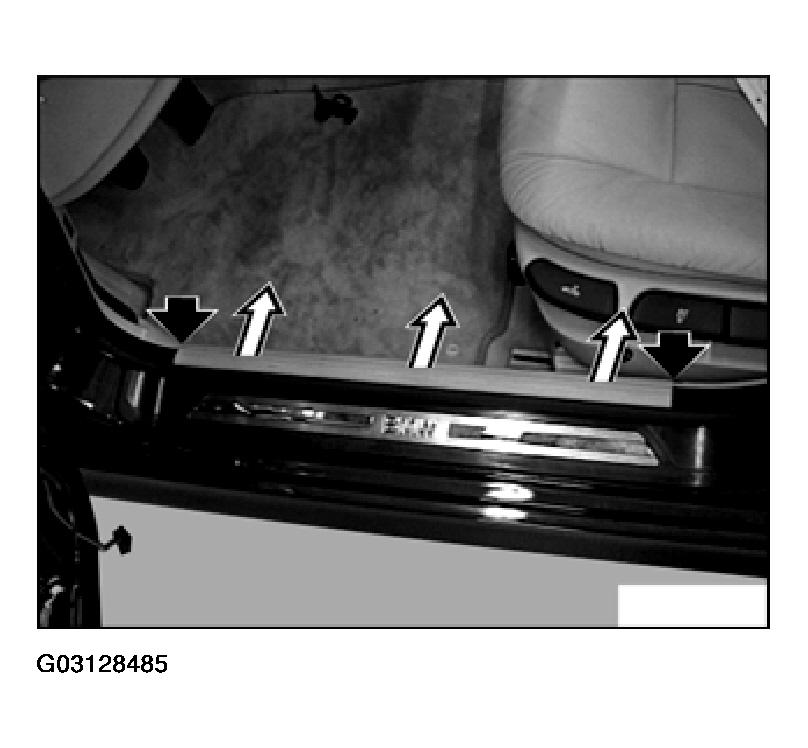

Fig 1: Lifting Clips Off Floor Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect rocker panel strip from front and rear finisher strip.

Unclip rocker panel strip from floor plate by pulling upwards.

If necessary, lift clips off floor plate.

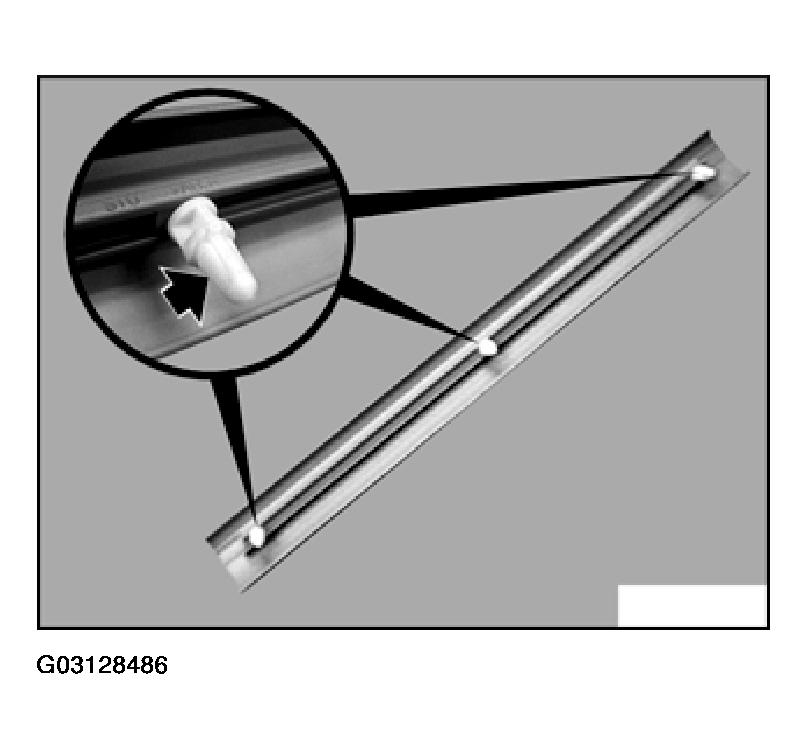

Fig 2: Sliding Clips Onto Rocker Panel Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide clips onto rocker panel strip.

If necessary, replace damaged clips.
