51 47 030 Removing and installing / replacing the rear (inside) left or right entrance cover strip

WARNING: This page is about a different car, the 2003 BMW 525i, 2002 BMW 525i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear seat

Unscrew screw.

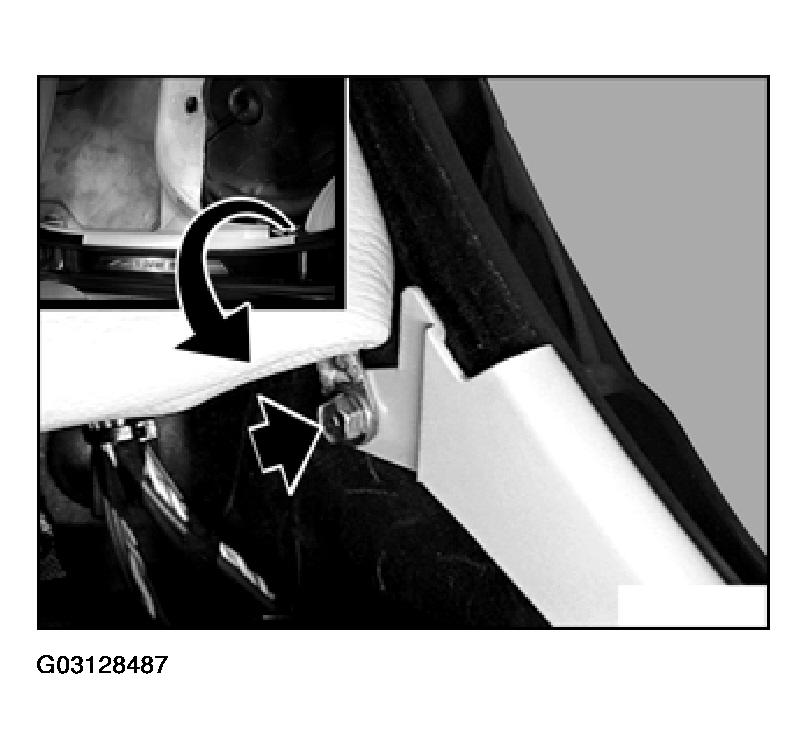

Fig 1: Removing Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Slide rocker panel strip backwards out of clips and remove.

Lever clips with pliers (head of pliers surface-ground) out of base plate.

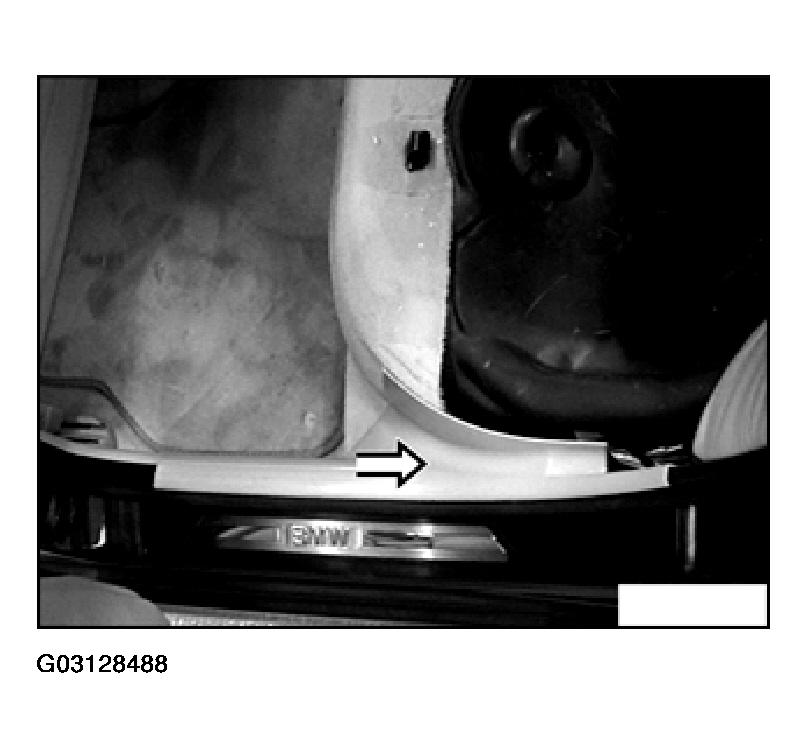

Fig 2: Sliding Rocker Panel Strip Backwards Out Of Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damaged clips.

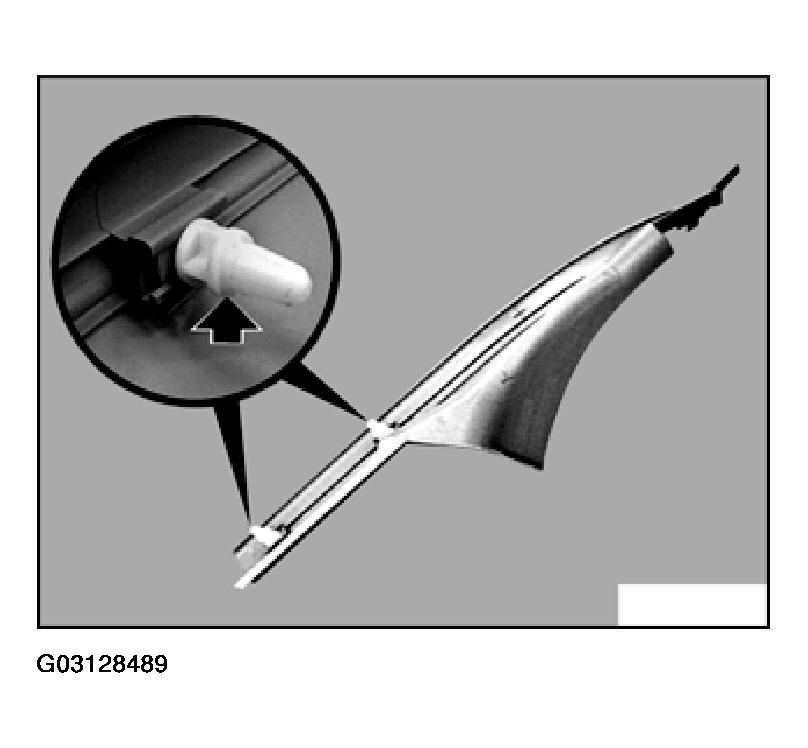

Fig 3: Replacing Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
