67 61 517 Replacing drive with gear (rear) for actuating slide/tilt sunroof (panoramic glass sunroof)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear grab handles. Refer to 51 16 450 REMOVING AND INSTALLING/REPLACING REAR LEFT/RIGHT GRAB HANDLE .
Remove trim for rear left and right roof pillar (C-pillar). Refer to 51 43 251 REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) .
Remove trim for rear left and right roof pillar (D-pillar). Refer to 51 43 252 REMOVING AND INSTALLING/REPLACING PANEL FOR REAR ROOF PILLAR (D-PILLAR), LEFT OR RIGHT .
Detach mucket in area of roofliner.

Unclip covers (1) in direction of arrow and remove. Release screws (2).

IMPORTANT: Do not under any circumstance kink roofliner (3).

Unclip roofliner (3) at retaining points (4) towards bottom and lower.

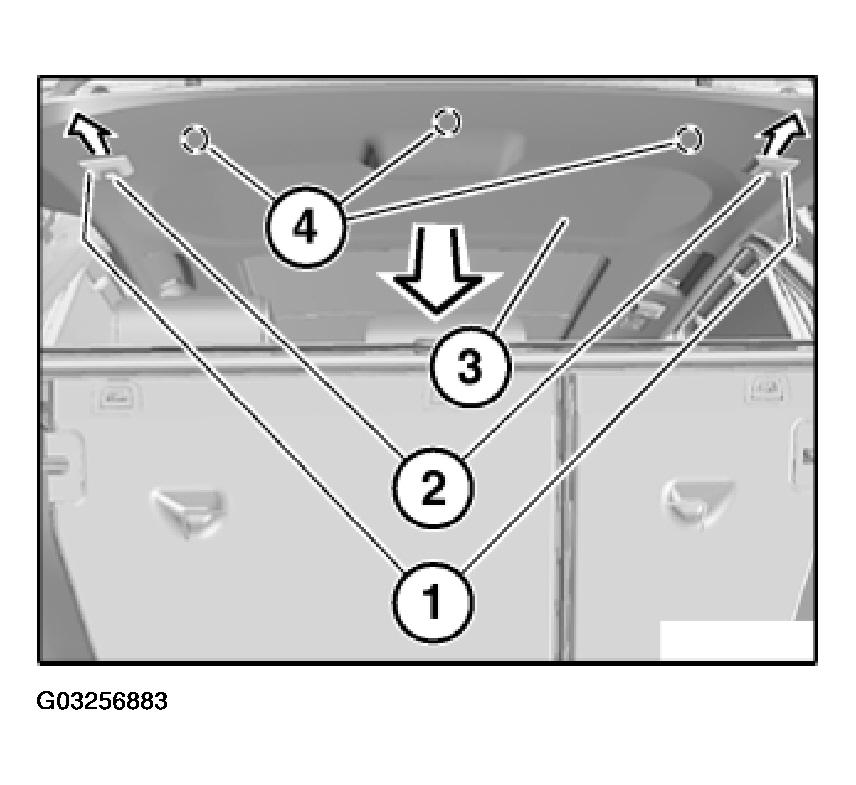

Fig 1: Unclipping Roofliner At Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure drive with gear for actuating slide/tilt sunroof (3) against falling out.

Release screws (2), tightening torque, (2.8 N.m.).

Lower drive with gear for actuating slide/tilt sunroof (3).

NOTE: Screws (2) are microencapsulated.

Unlock plug connection (1), disconnect and remove drive with gear for actuating slide/tilt sunroof (3).

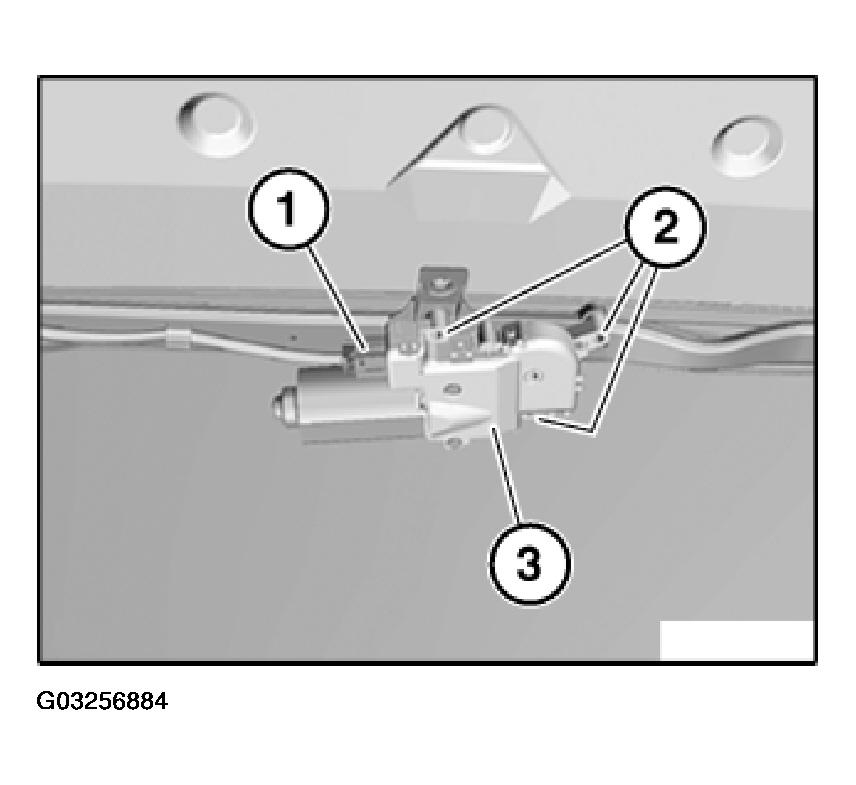

Fig 2: Identifying Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

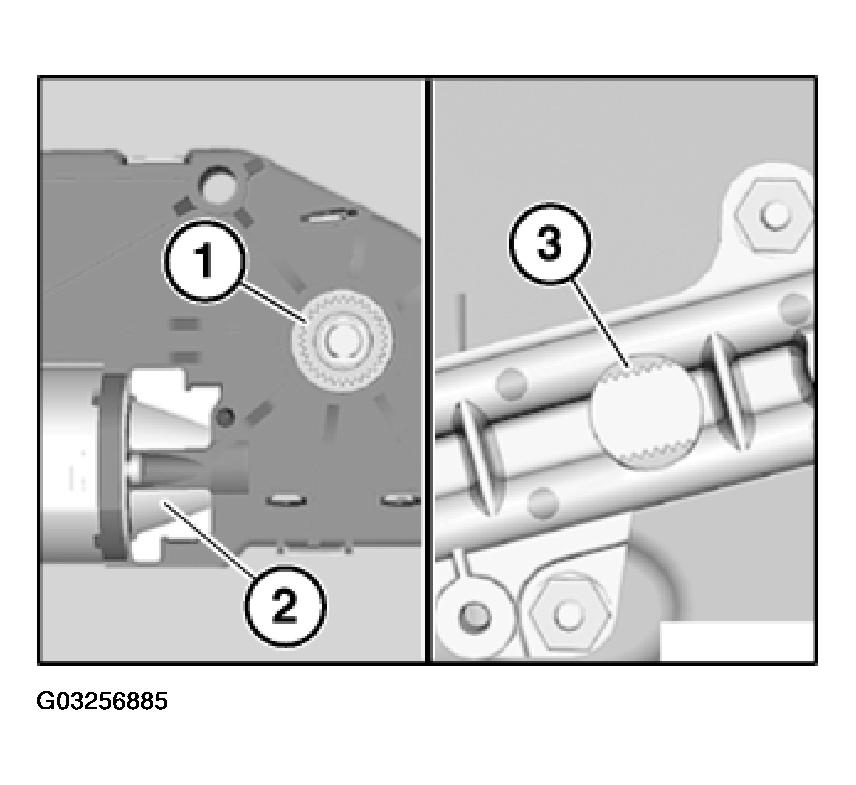

Fig 3: Inserting Gear Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize slide/tilt sunroof. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
