51 43 252 Removing and installing/replacing panel for rear roof pillar (D-pillar), left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 318

Remove trim for tail panel at top. Refer to 51 46 050 REMOVING AND INSTALLING/REPLACING FINISHER FOR TOP OF REAR APRON .

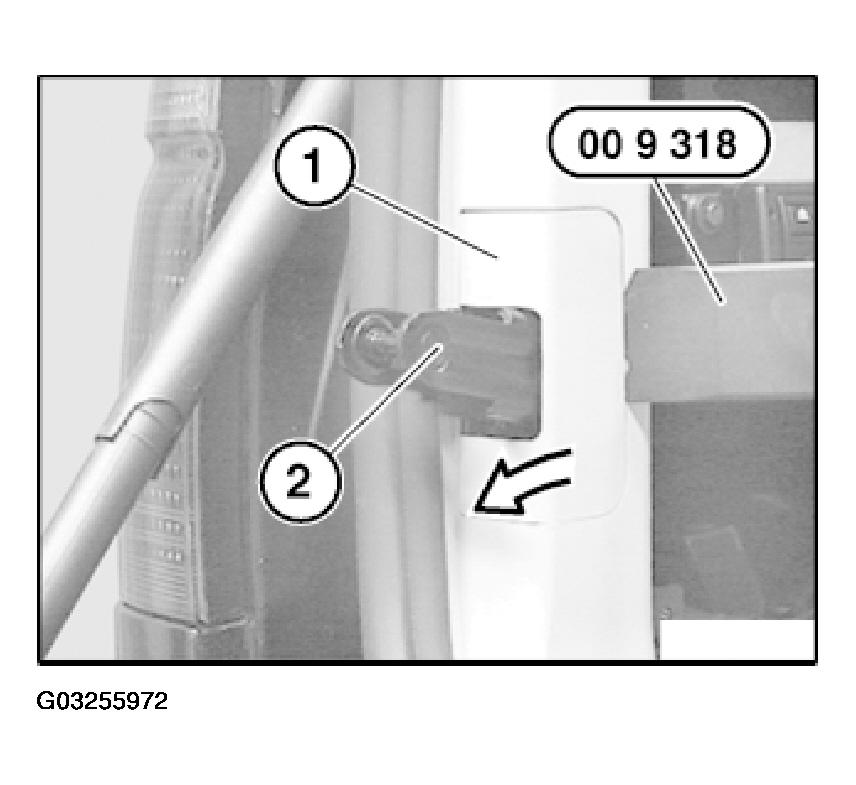

Lever out cover (1) on rear lid lock (2) with (universal wedge) special tool 00 9 318.

Detach rear lid rubber.

Fig 1: Removing Cover Using Assembly Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

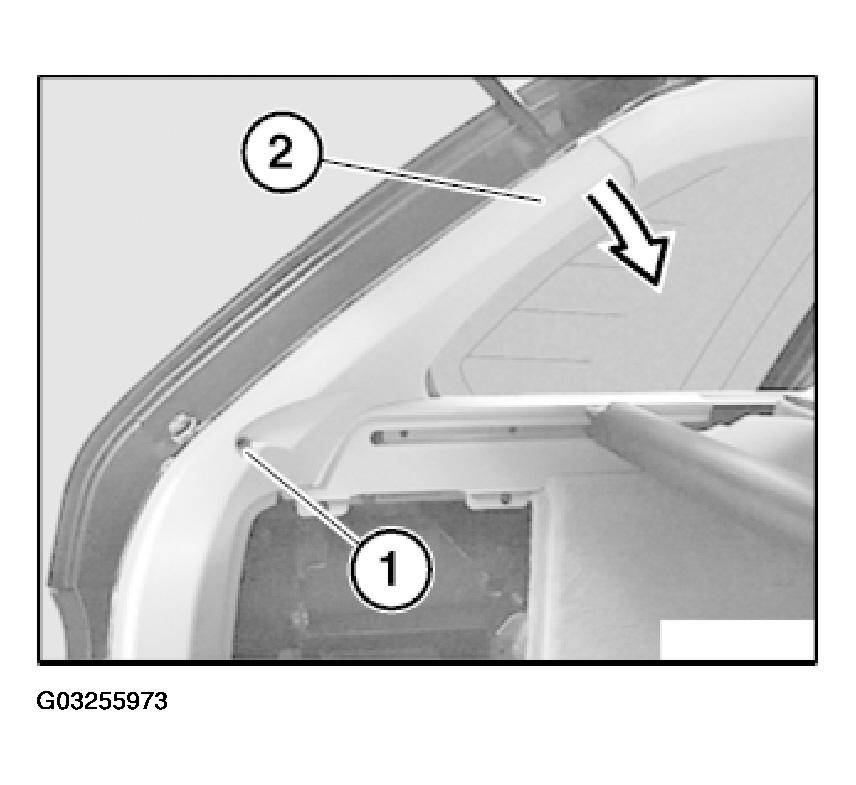

Release screw (1).

Fig 2: Releasing Screw For Rear Roof Pillar Panel

Courtesy of BMW OF NORTH AMERICA, INC.

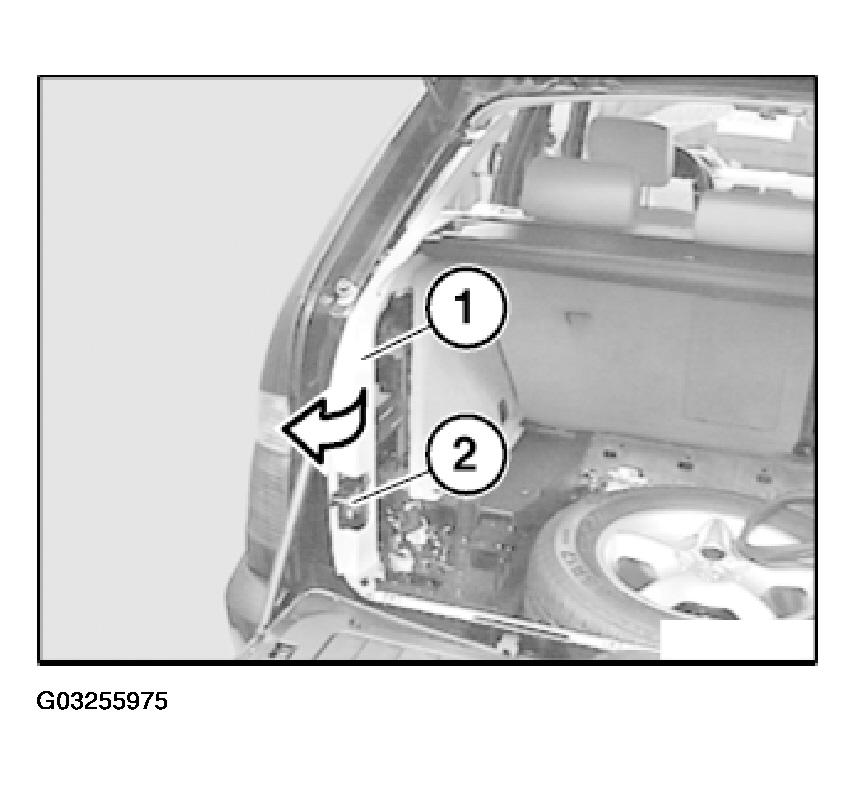

Detach panel (2) at top approx. 30 mm from roof pillar.

Pull panel (1) to one side.

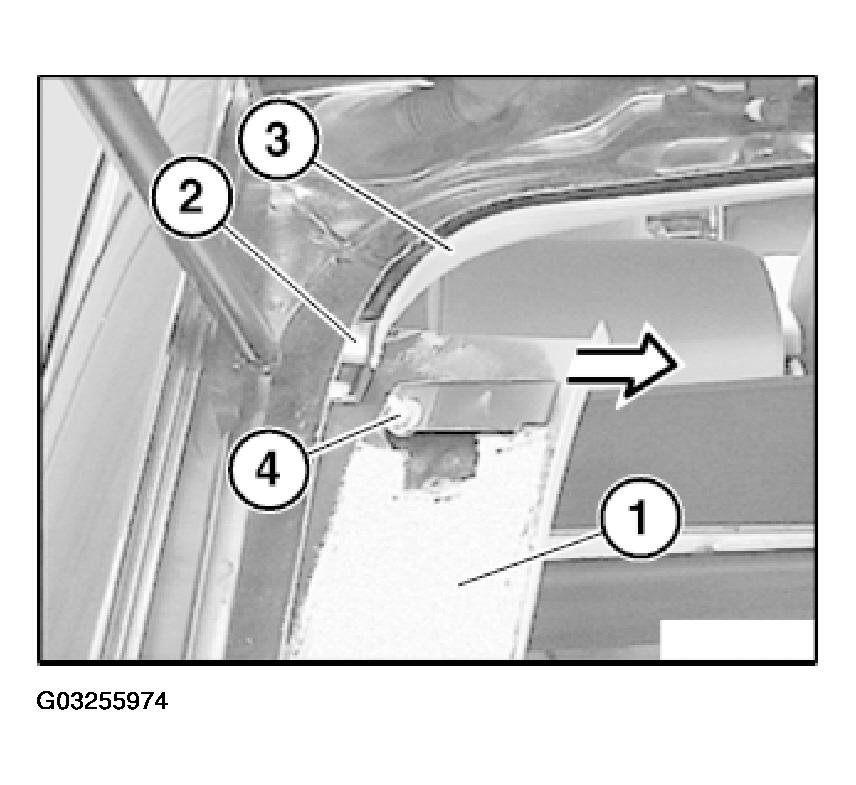

Detach lug (2) from headliner (3).

Installation:

If necessary, replace faulty lug (2) or clip (4).

Fig 3: Aligning Panel To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

Lift panel (1) over rear lid lock (2) and remove.

Fig 4: Lifting Panel Over Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

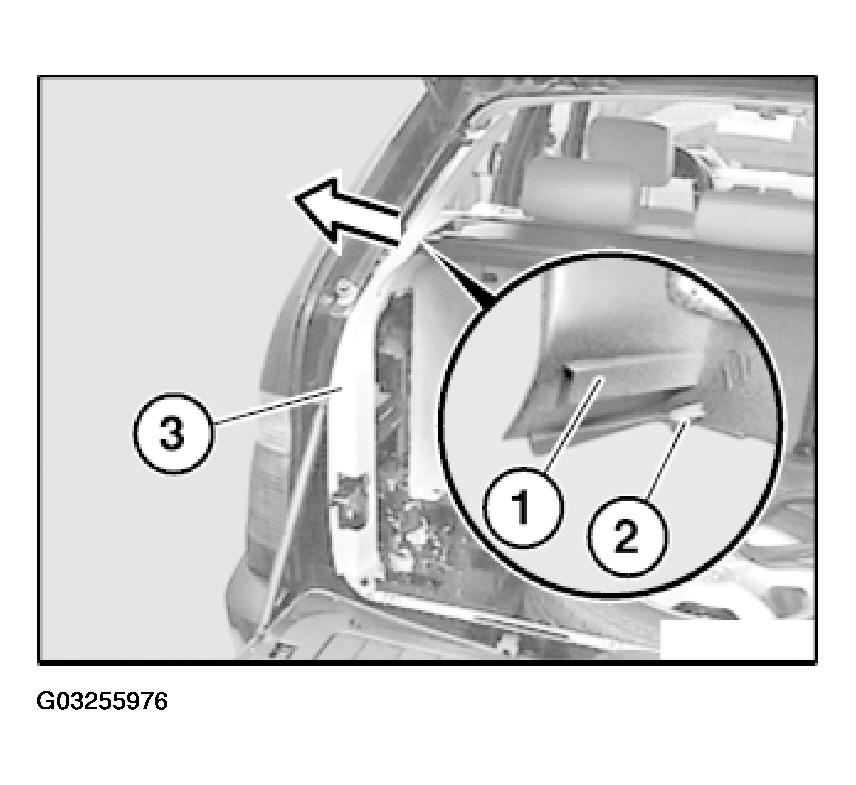

Make sure guide (1) and journal (2) are correctly seated on panel (3).

Fig 5: Checking Seating Of Guide And Journal

Courtesy of BMW OF NORTH AMERICA, INC.
