51 43 251 Removing and installing/replacing trim panel for left or right rear roof pillar (C-pillar)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove rest side section on rear seat backrest. Refer to 52 26 008 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT SIDE SECTION OF REAR SEAT BACKREST (THROUGH-LOADING) .

Remove rear seat.

Release belt nut (1).

Installation:

Tightening torque, (31 N.m.).

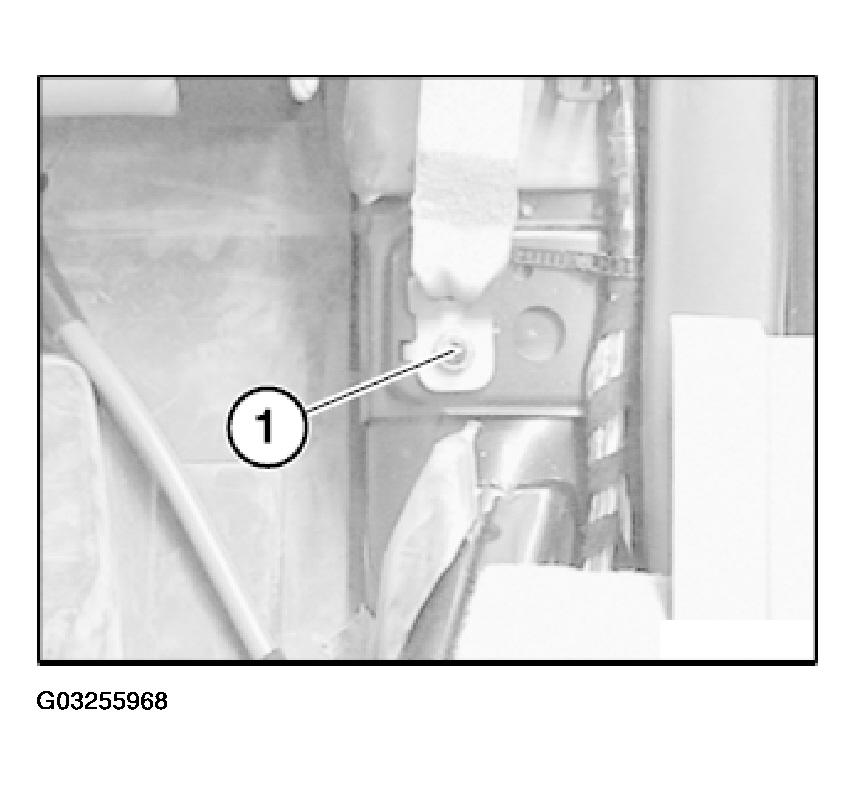

Fig 1: Locating Belt Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out expanding rivet (1).

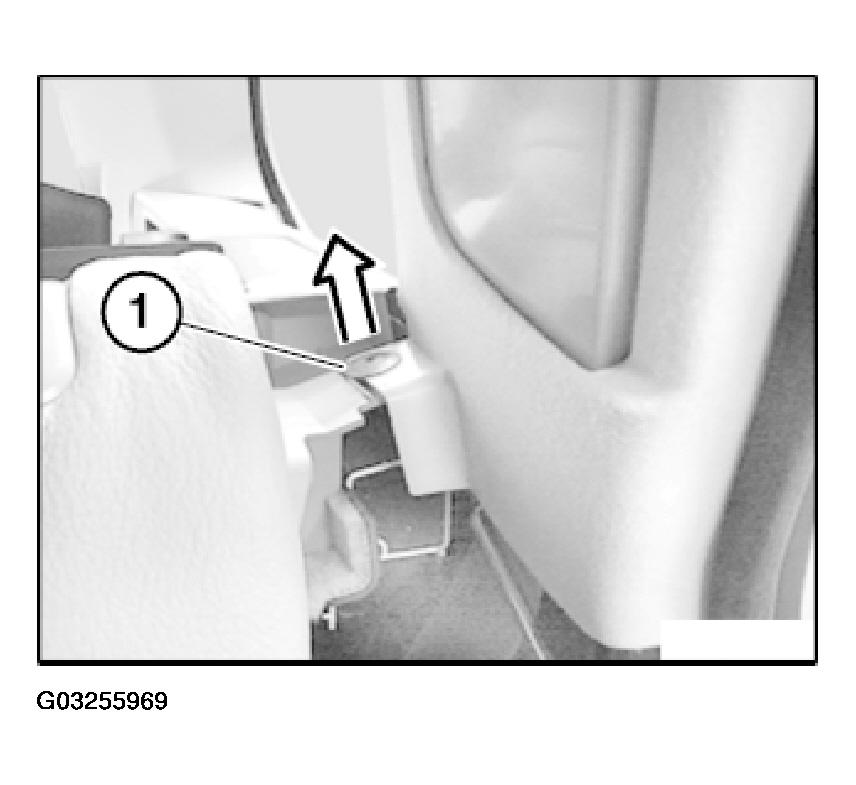

Fig 2: Lifting Out Expanding Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip panel at top.
Pull out panel towards top.

Feed out seat belt.

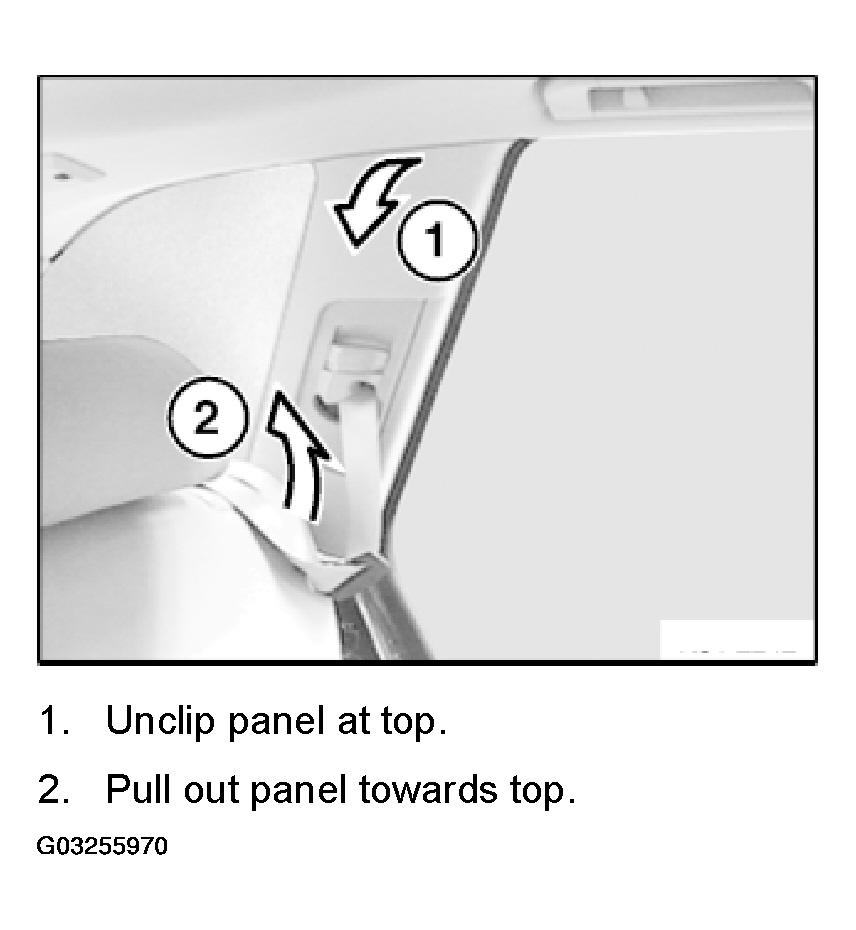

Fig 3: Unclipping Panel At Top And Removing

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace defective clip (1).

Belt adjustment fixture (2) must enclose head of belt screw (3).

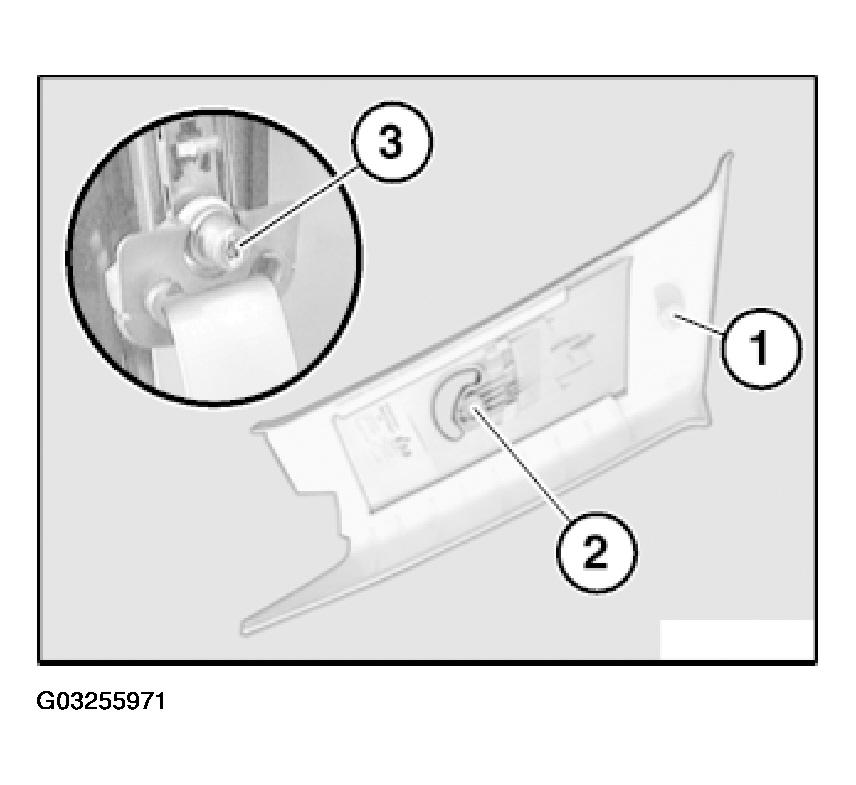

Fig 4: Identifying Belt Screw In Adjustment Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
