67 66 010 Removing and installing/replacing lumbar support drive mechanism on front seat, left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove rear panel on front seat backrest. Refer to 52 13 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/MANUAL) or 52 14 198 REMOVING AND INSTALLING/REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL/ELECTRIC) .

E53 Comfort Seat:

Remove rear panel at bottom. Refer to 52 17 202 REMOVING AND INSTALLING/REPLACING BOTTOM REAR PANEL ON FRONT SEAT BACKREST (LUXURY SEAT) .

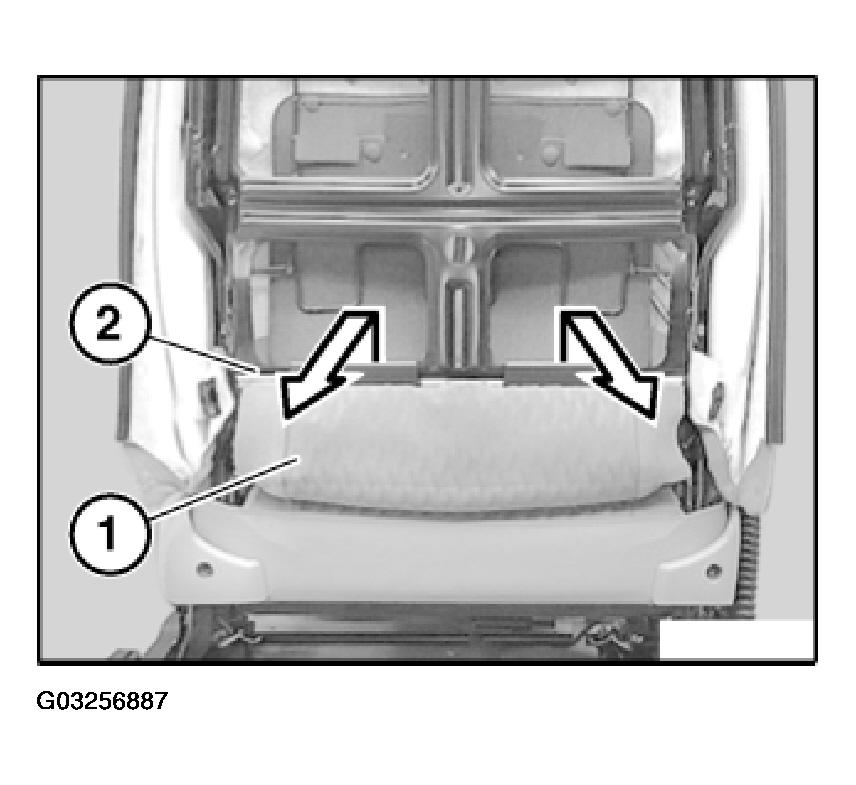

Detach backrest cover (1) in direction of arrow from backrest frame (2).

Fig 1: Detaching Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

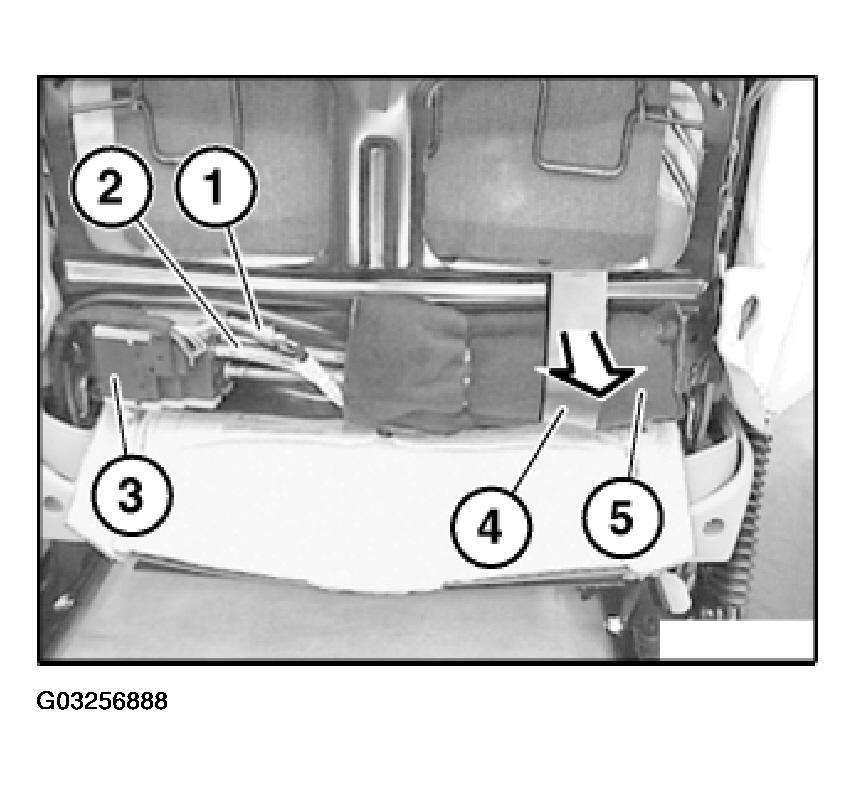

Disconnect plug connection (1).

Detach transparent hose (2) from valve housing (3).

NOTE: If necessary, gently heat transparent hose (2) if firmly seated. If necessary, detach fabric adhesive tape (4).

Detach drive unit for lumbar support (5) with jacket in direction of arrow.

Fig 2: Detaching Drive Unit For Lumbar Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

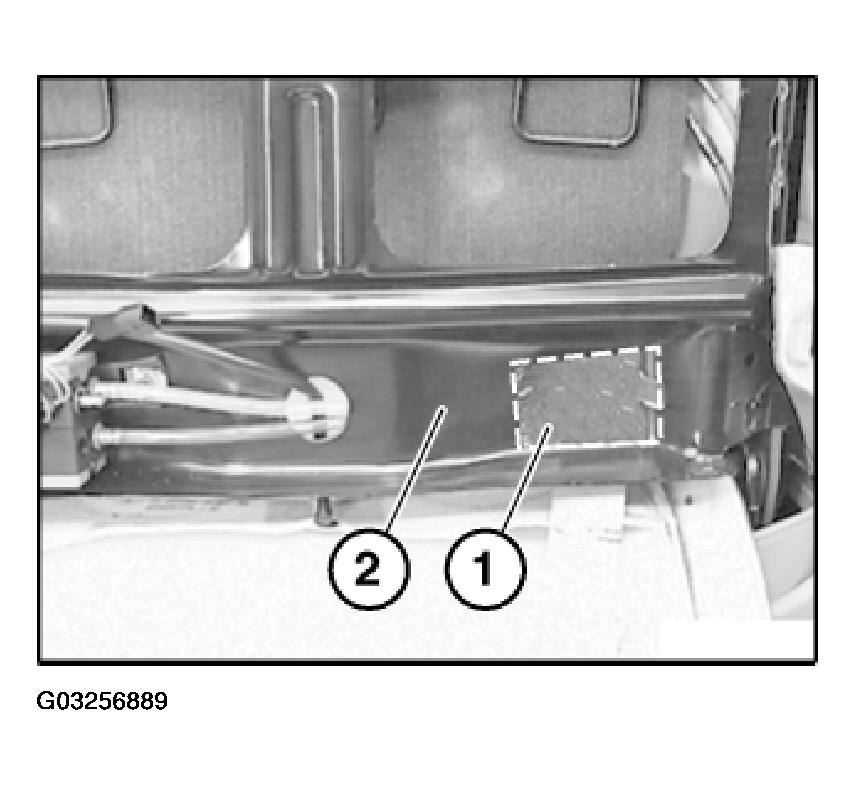

Clean adhesive area (1) on backrest frame (2).

Fig 3: Identifying Adhesive Area On Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

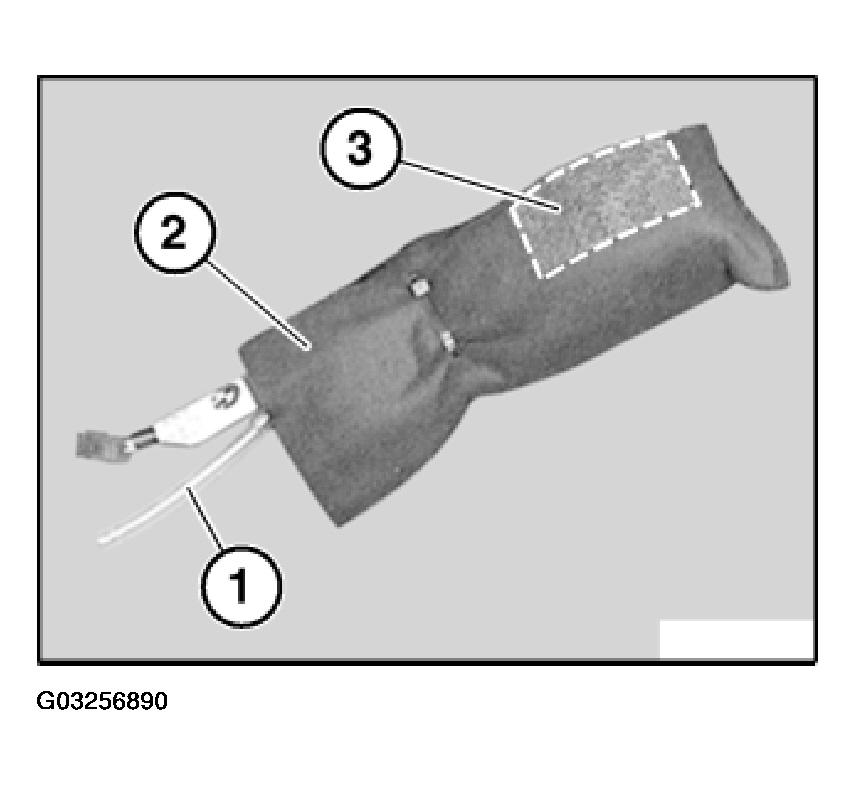

Transparent hose (1) of drive unit for lumbar support must not be kinked.

Pull off protective film (3) from jacket (2). Stick drive unit for lumbar support to backrest frame.

If necessary, secure jacket (2) with cable strap.

Fig 4: Removing Protective Film From Jacket

Courtesy of BMW OF NORTH AMERICA, INC.
