52 13 198 Removing and installing/replacing rear panel on left or right front seat backrest (normal/manual)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat.

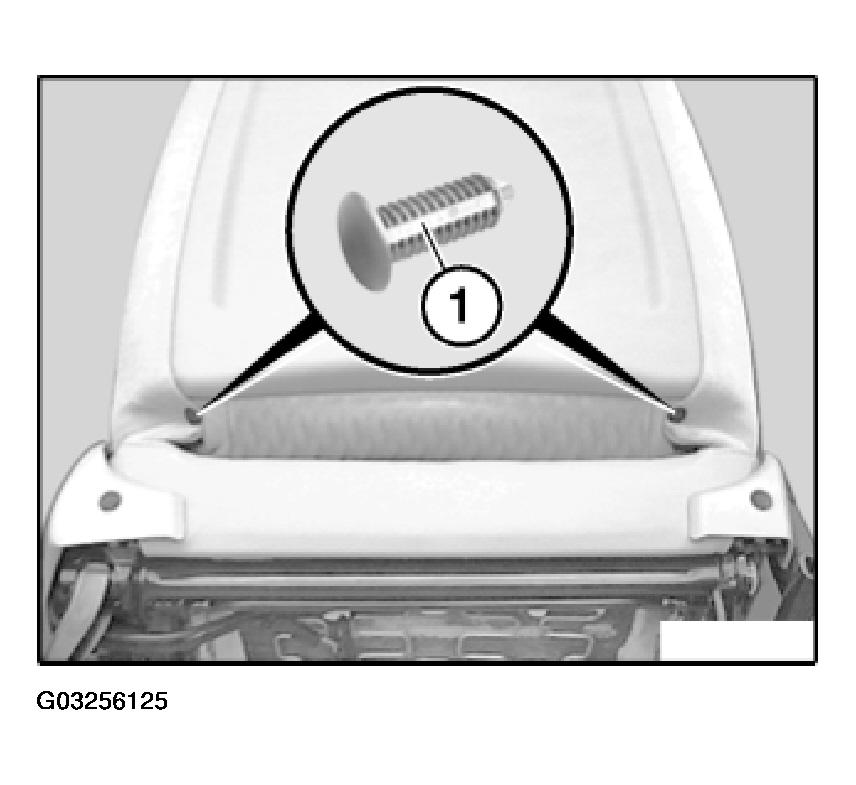

Release clips (1) with side cutting pliers.

NOTE: Remove clip remainders.

Fig 1: View Of Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

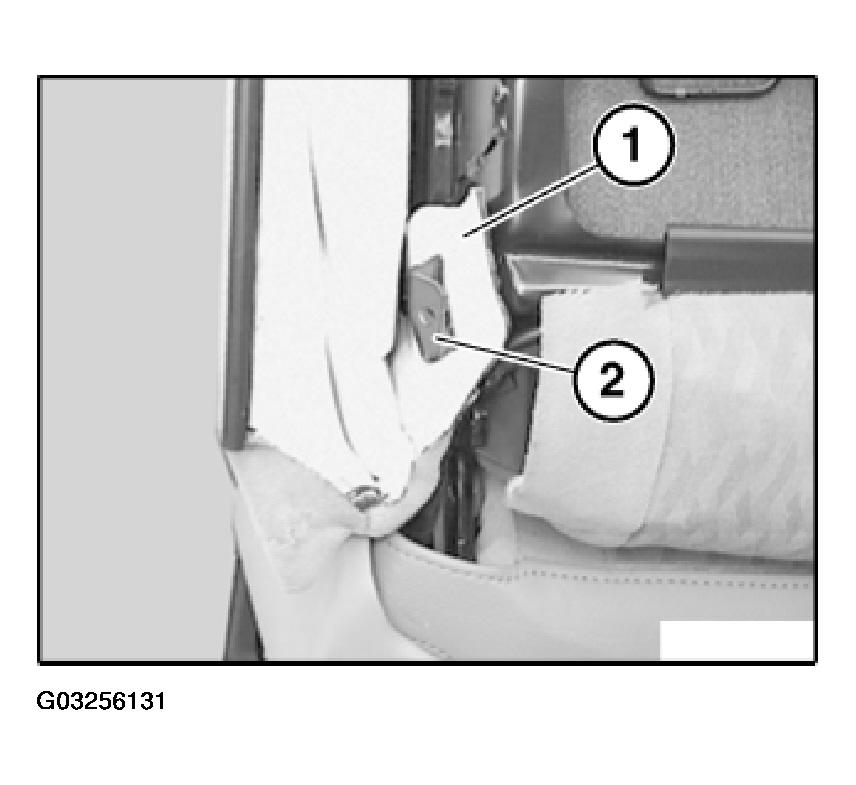

Carefully pull cover (1) with piping (2) out of groove in rear panel (3).

Fig 2: Removing Cover With Piping Out Of Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

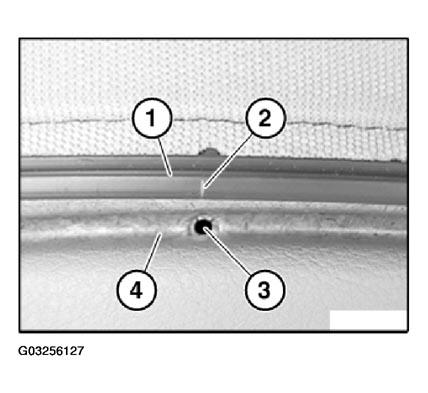

The cover piping (1) has a marking (2) which must line up with hole (3) in rear panel groove (4).

From marking (2), press in piping (1) completely to left and right at bottom.

Five new repair clips must be fitted after each disassembly.

Fig 3: Aligning Piping Mark And Hole In Rear Panel Groove

Courtesy of BMW OF NORTH AMERICA, INC.

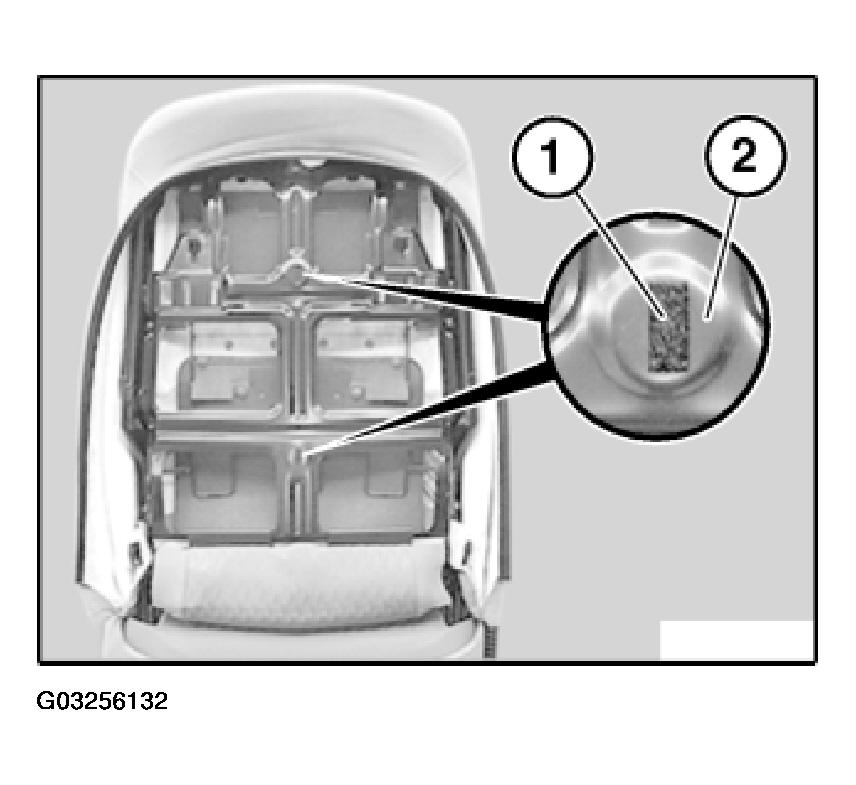

Release clips (1) (cut through with side cutting pliers).

NOTE: Remove clip remainders.

Fig 4: Identifying Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

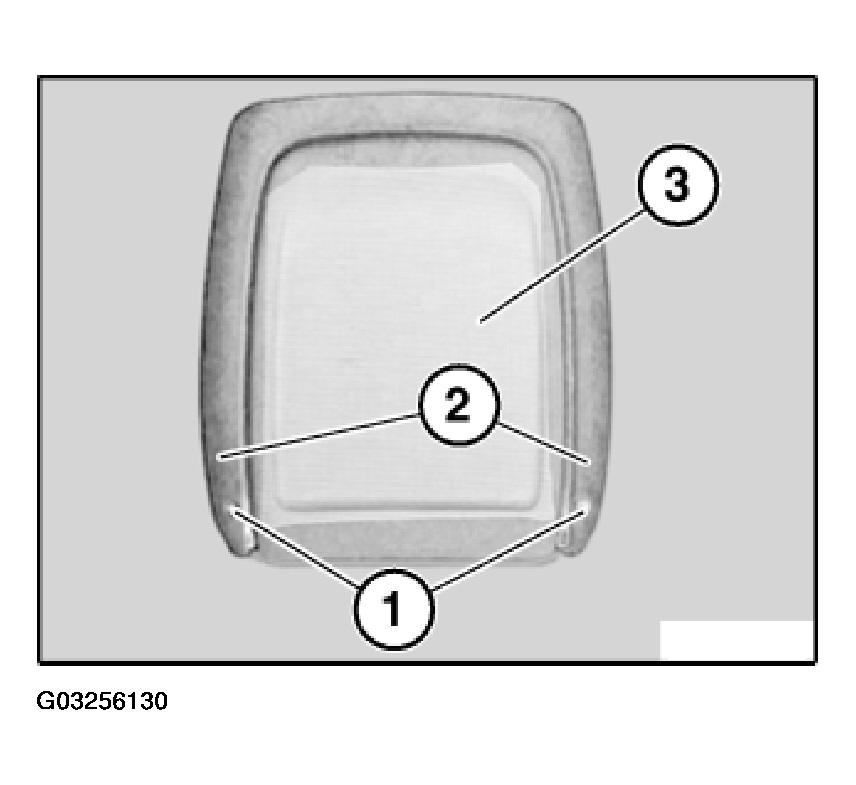

Pull rear panel (1) off backrest cover (2).

Fig 5: Pulling Rear Panel Off Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

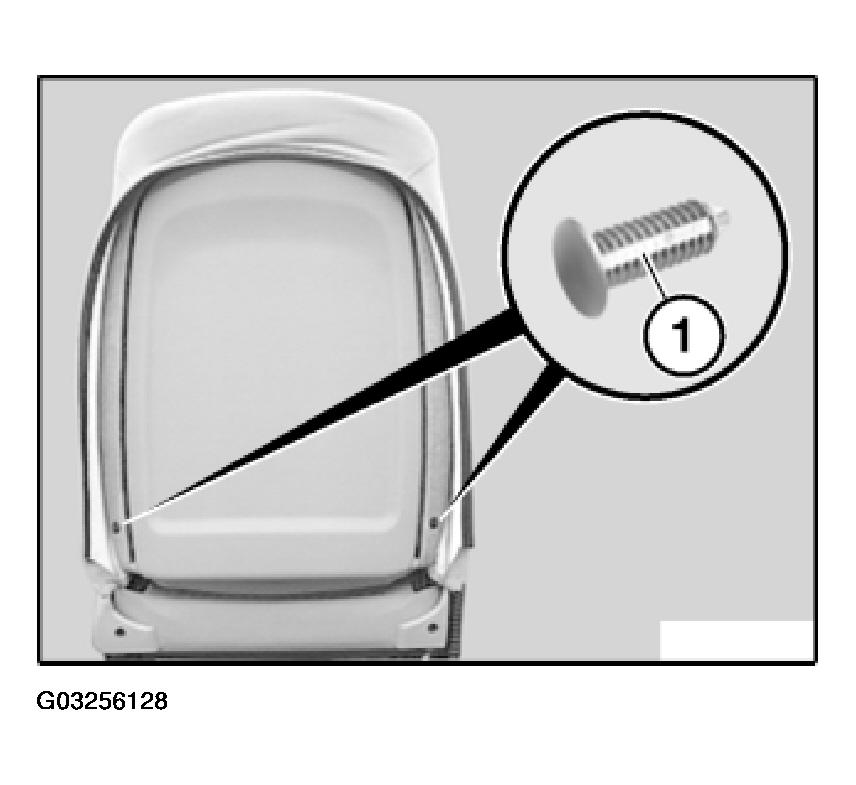

Holes (1) and (2) on rear panel (3) must not be damaged.

Fig 6: Locating Holes On Rear Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide backrest cover (1) on left/right over clip mount (2).

Fig 7: Installing Backrest Cover On Clip Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To prevent noise:

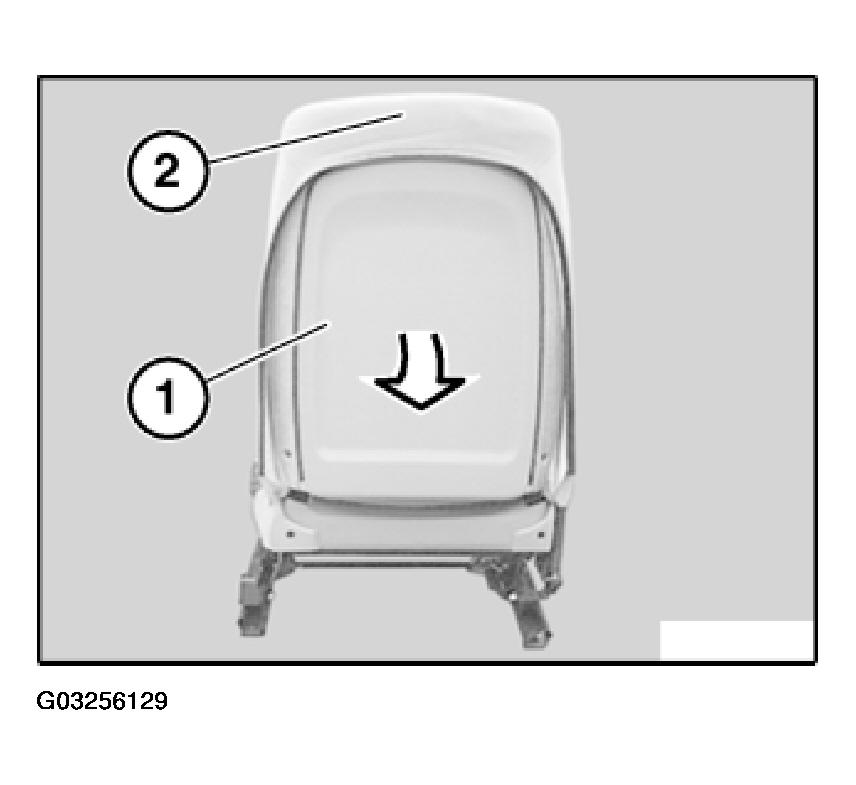

Stick felt strip (1) to raised frame area (2).

Fig 8: Installing Felt Strip

Courtesy of BMW OF NORTH AMERICA, INC.
