65 24 100 Removing and installing/replacing antenna (AM sensor)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove upper trim for rear lid upper section. Refer to 51 49 056 REMOVING AND INSTALLING/REPLACING UPPER TRIM FOR REAR LID UPPER SECTION .

Remove rear spoiler. Refer to 51 71 412 REMOVING AND INSTALLING REAR SPOILER .

Disconnect plug connection (1) and insert through opening.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rubber grommet (1).

Detach antenna (2) and remove.

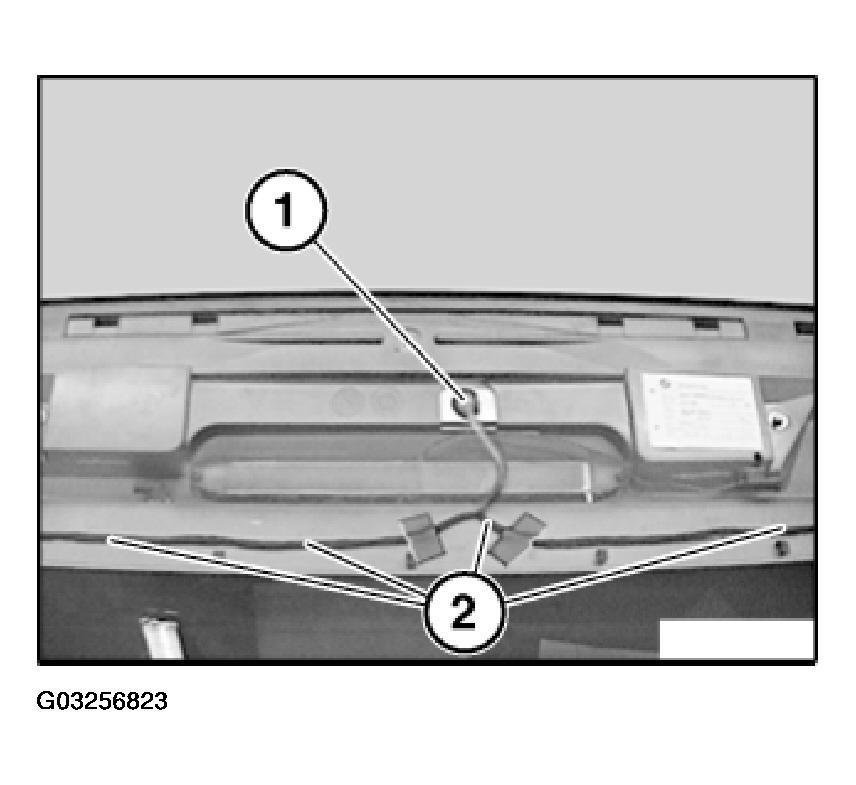

Fig 2: Locating Rubber Grommet On Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean glued area.
