51 49 056 Removing and installing/replacing upper trim for rear lid upper section

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - X5 (3.0i) .

Special Tools Required:

00 9 317

Remove side trim for rear lid upper section. Refer to 51 49 053 REMOVING AND INSTALLING/REPLACING SIDE TRIM FOR REAR LID UPPER SECTION .

With special tool 00 9 317, unclip clips (1) in upper trim (4).

Feed trim (4) with swallow-tail guides (2) out of side trim (3).

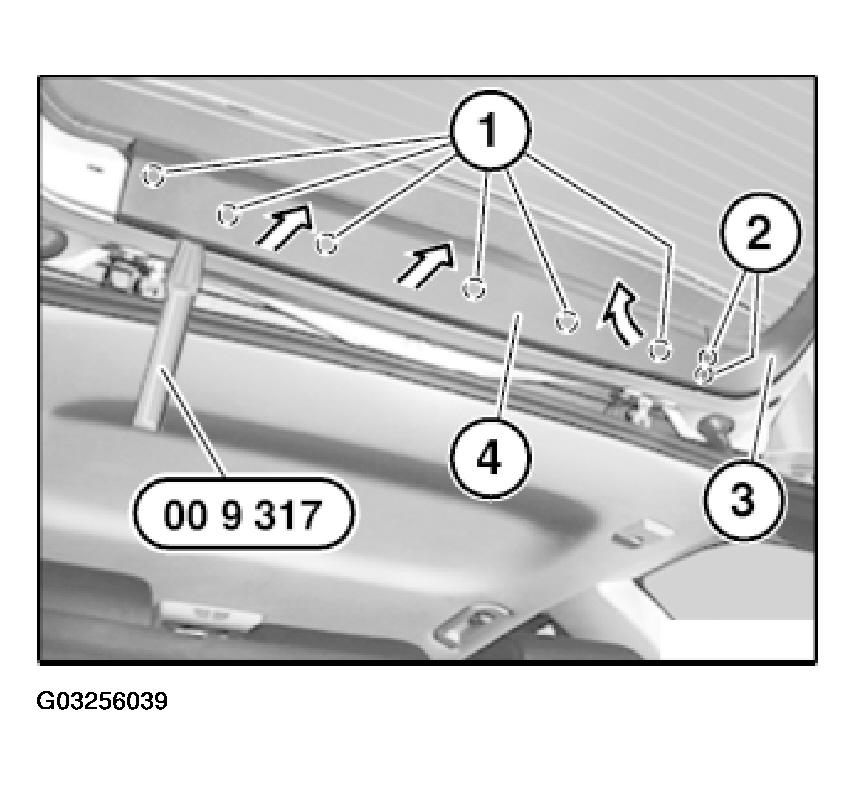

Fig 1: Using Assembly Wedge Release Clips In Upper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, detach clips (1) from trim (3) and insert in rear lid.

Swallow-tail guides (2) must not be damaged.

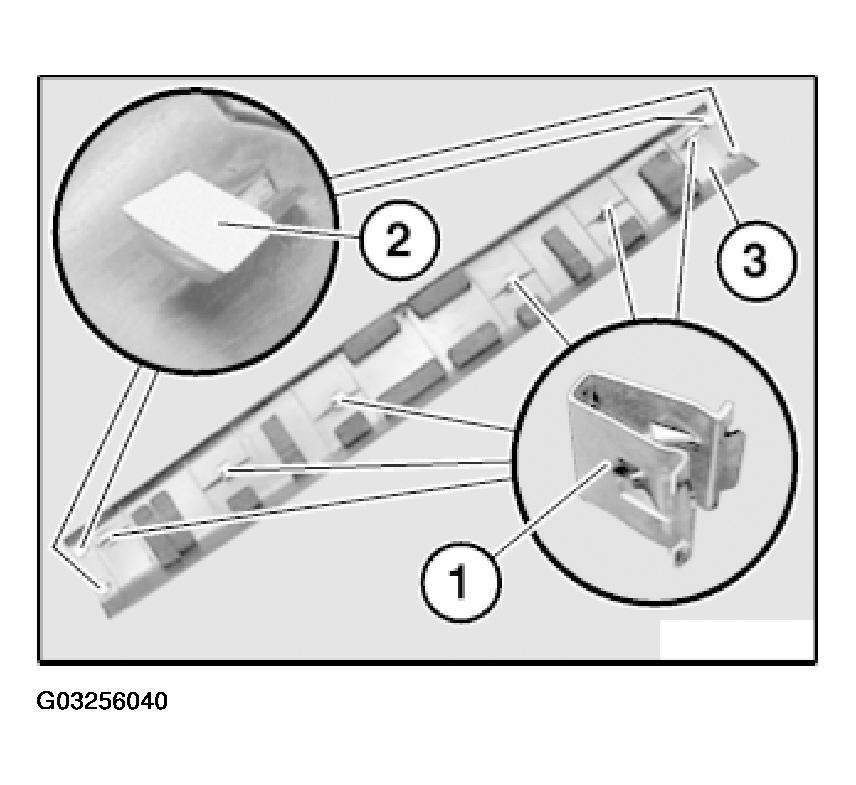

Fig 2: Detaching Clips From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
