51 71 412 Removing and installing rear spoiler

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Lever out covers (1) on left/right and release screw underneath.

Release screws (2) on left/right and screw (3).

Remove rear spoiler and set down on a clean surface.

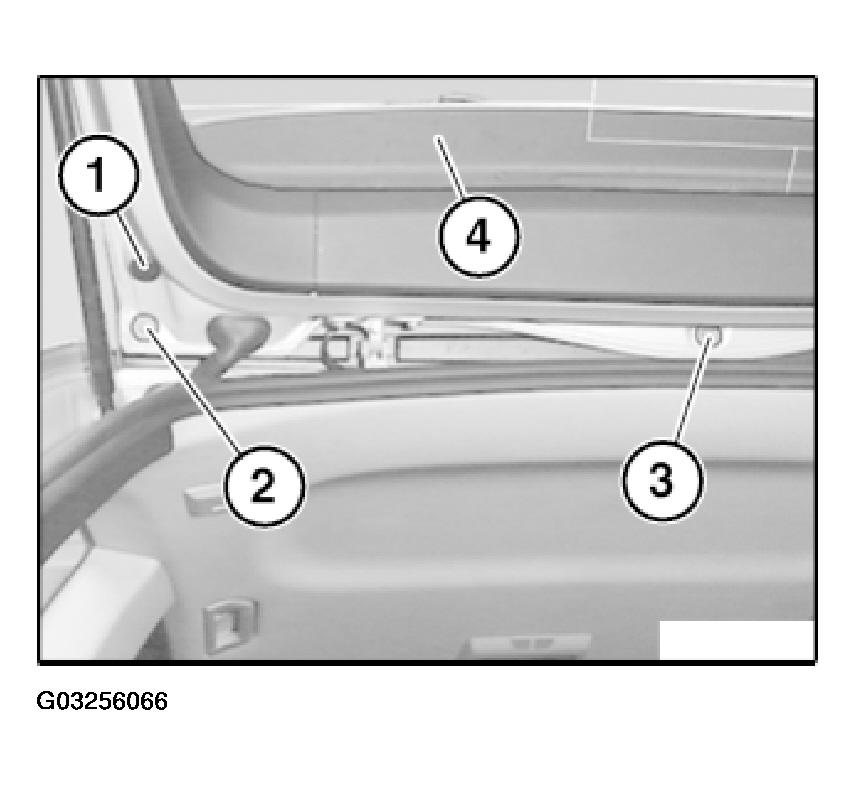

Fig 1: Levering Out Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, make a note of number of shims on screws (2) and (3) and refit them during installation at same position.

Tighten screw (3) first.

Tightening torque, (3 N.m.).

Installation:

Threads (1) on rear spoiler (3) must not be damaged.

If necessary, replace faulty tapes (2) (dual-lock tape).

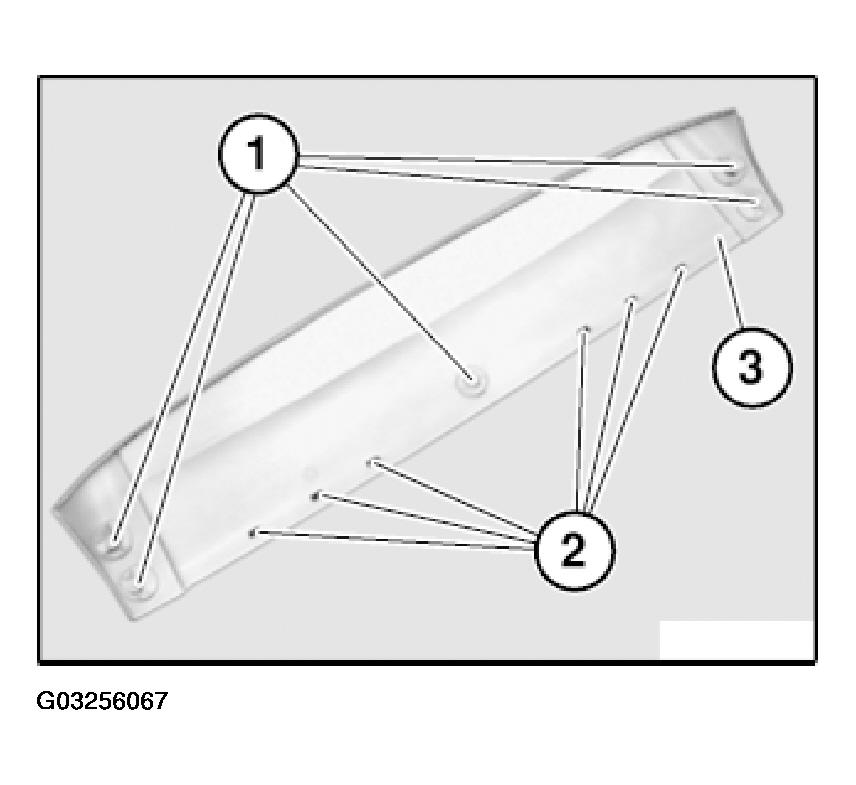

Fig 2: Installing Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.
