54 10 020 Removing and installing mechanism for front glass lid

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

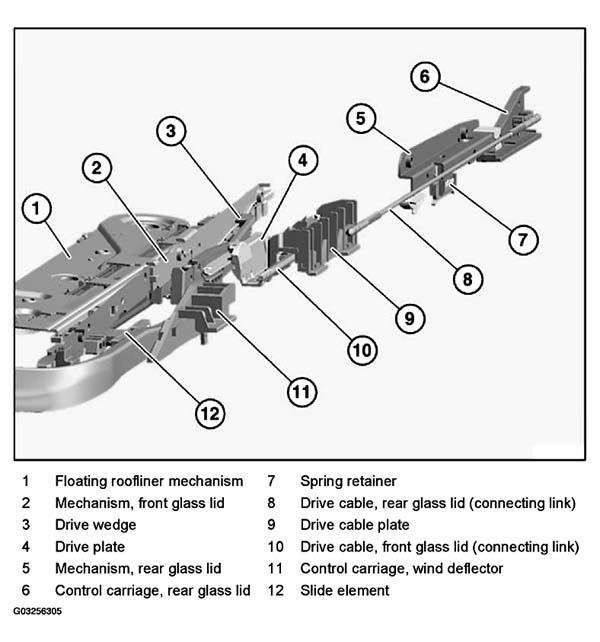

Overview Of Glass Lid Mechanism:

Fig 1: Identifying Glass Lid Mechanism Components (Front)
G03256305Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Always replace mechanism for glass slide/tilt sunroof in pairs.

If necessary, lightly grease guide channel.

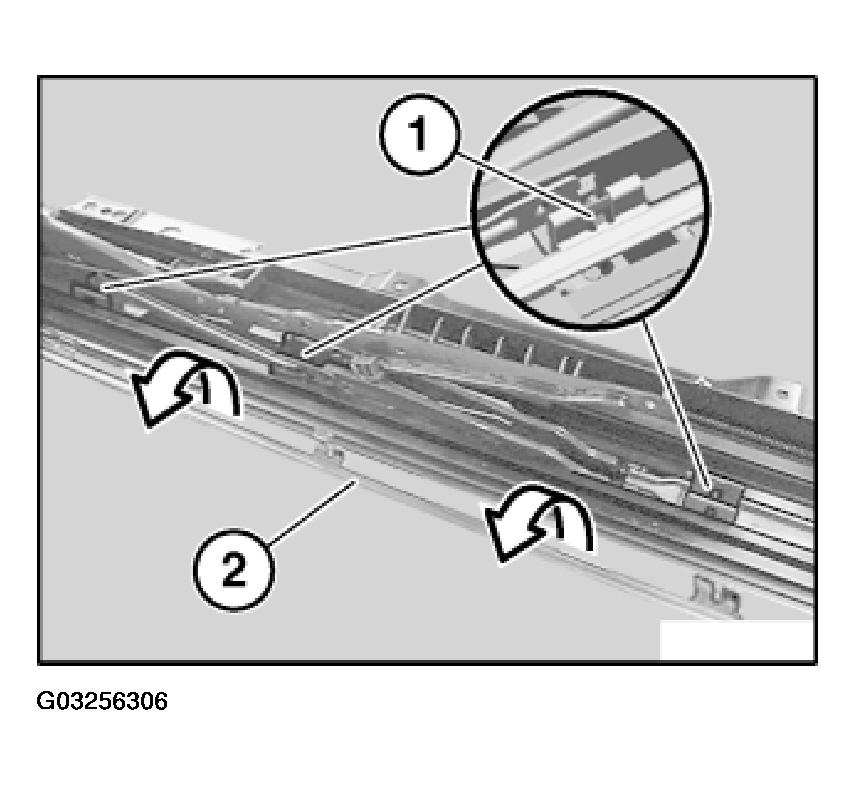

Removing upper connecting link (return linkage): Bend open tabs (1) of cover strip (2). Remove cover strip (2).

Installation:

Cover strip determines alignment of mechanism.

Fig 2: Removing Cover Strip
G03256306Courtesy of BMW OF NORTH AMERICA, INC.

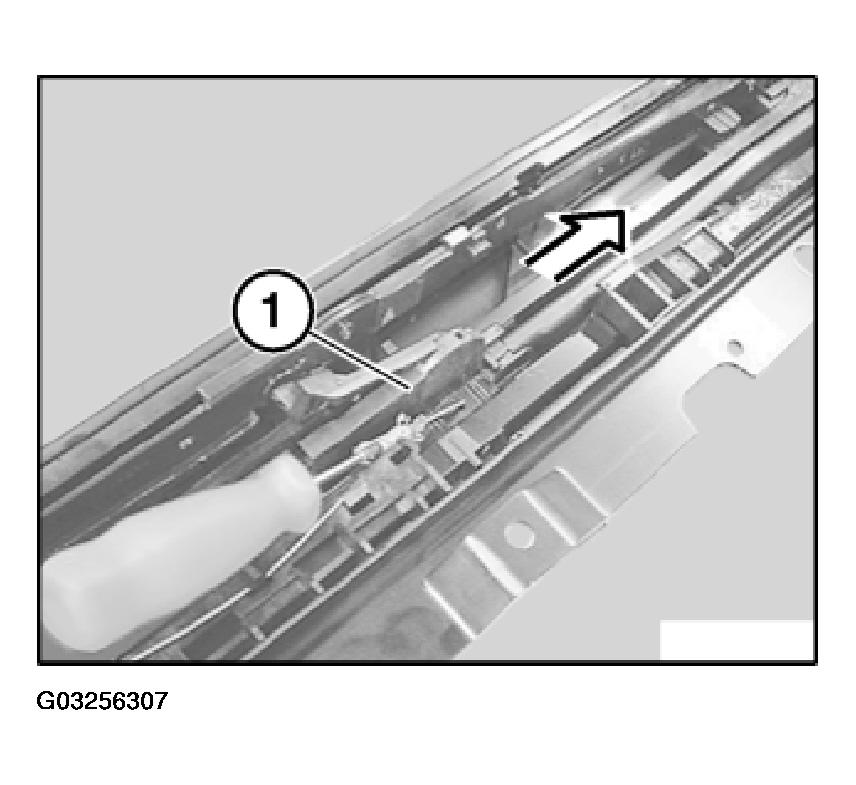

If necessary, slide drive cable plate (1) fully forwards with a screwdriver (stop).

Fig 3: Sliding Drive Cable Plate Using Screwdriver
G03256307Courtesy of BMW OF NORTH AMERICA, INC.

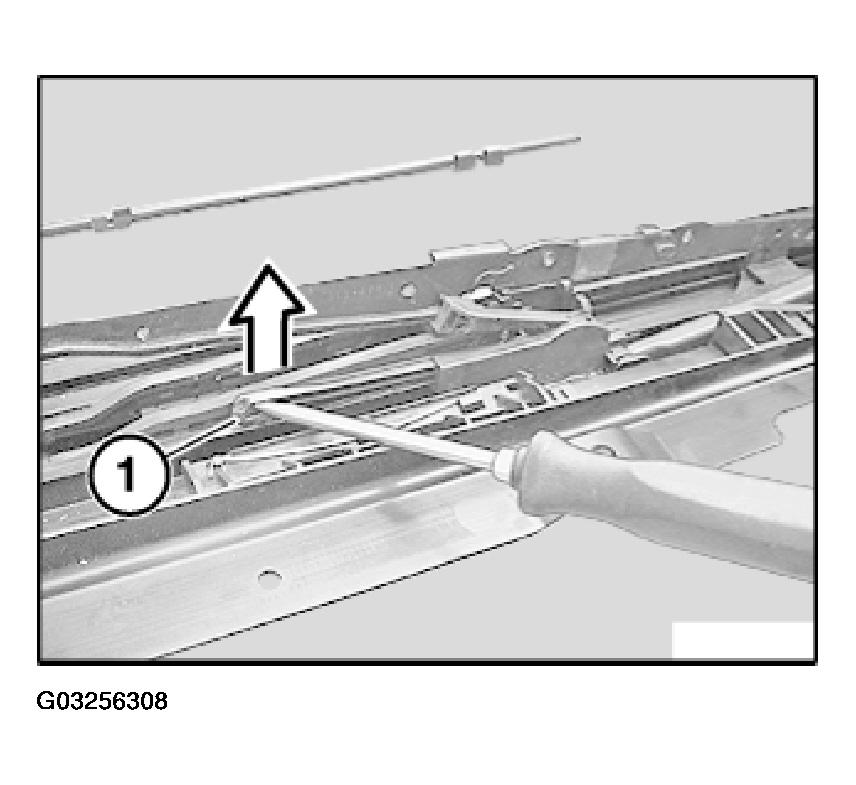

Pry out locking lever (1) of detent element at front from guide rail (unlock).

Fig 4: Removing Locking Lever Of Detent Element
G03256308Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

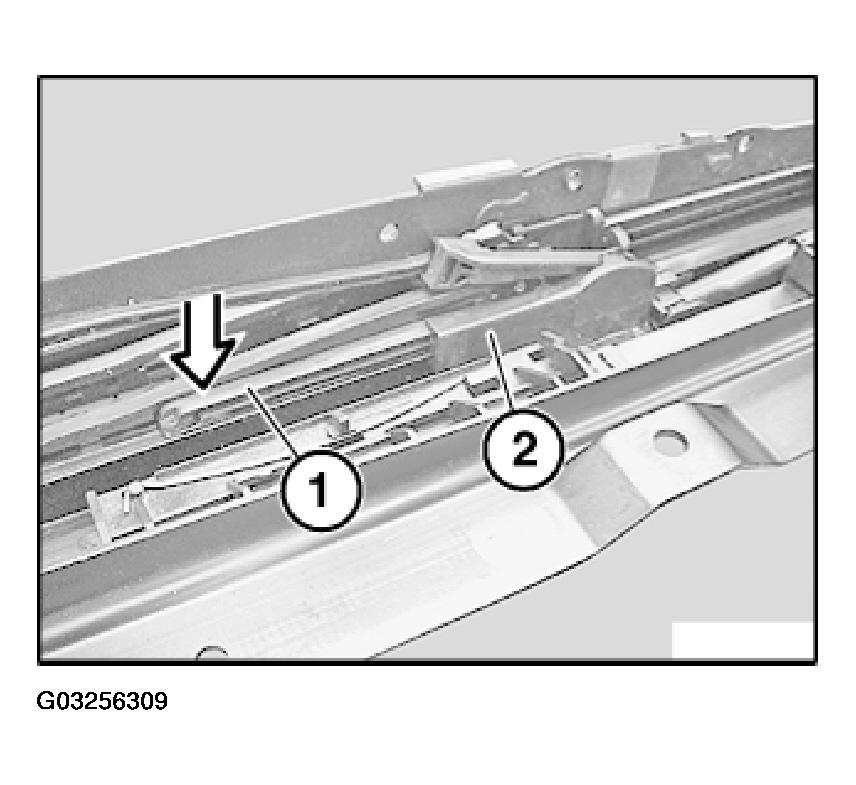

Do not move drive cable plate before locking lever (1) is engaged (risk of damage).

Fig 5: Identifying Locking Lever In Engaged Position
G03256309Courtesy of BMW OF NORTH AMERICA, INC.

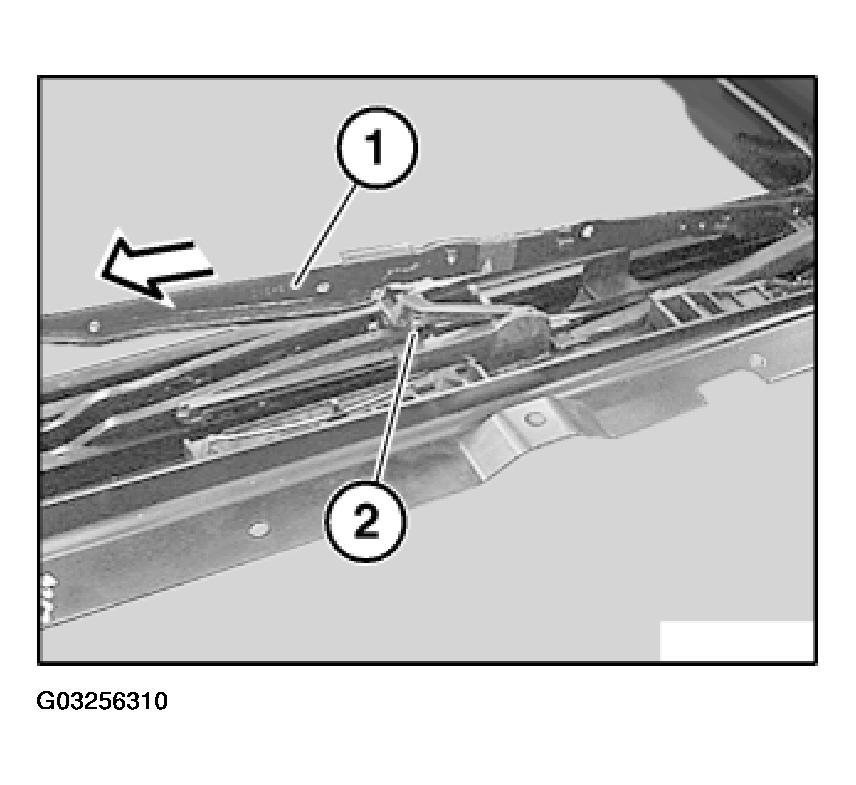

Pull upper connecting link (1) towards rear out of drive wedge (2).

Fig 6: Aligning Upper Connecting Link Towards Rear
G03256310Courtesy of BMW OF NORTH AMERICA, INC.

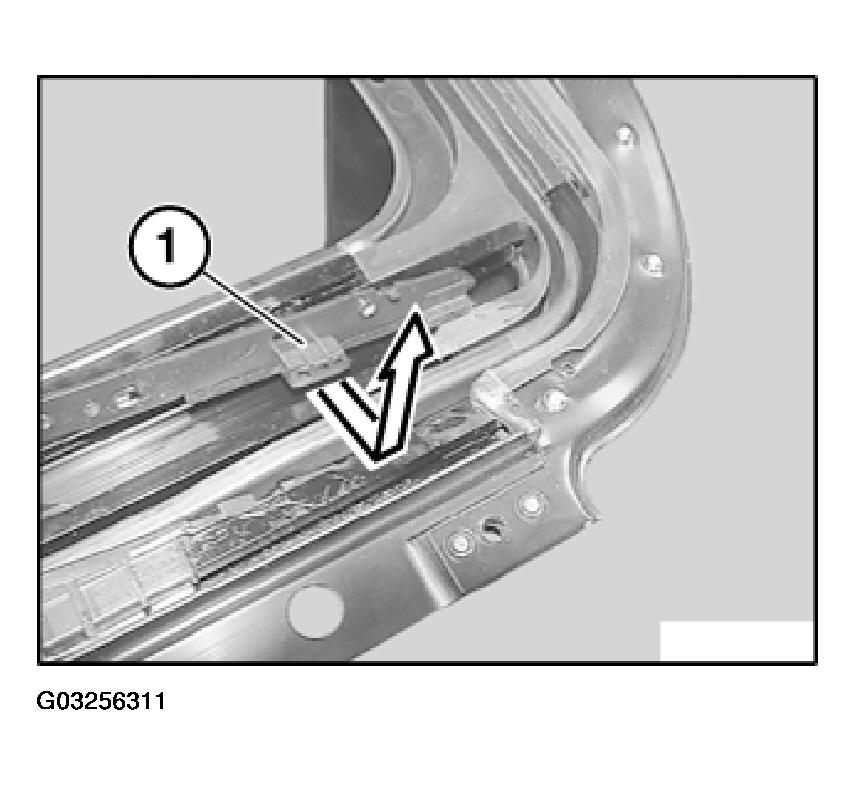

Feed upper connecting link (1) out of guide rail.

NOTE: If necessary, move mechanism (drive cable plate) approx. 2 cm. towards rear. Upper detent element can be fed out and in more easily.
Fig 7: Feeding Upper Connecting Link Out Of Guide Rail
G03256311Courtesy of BMW OF NORTH AMERICA, INC.

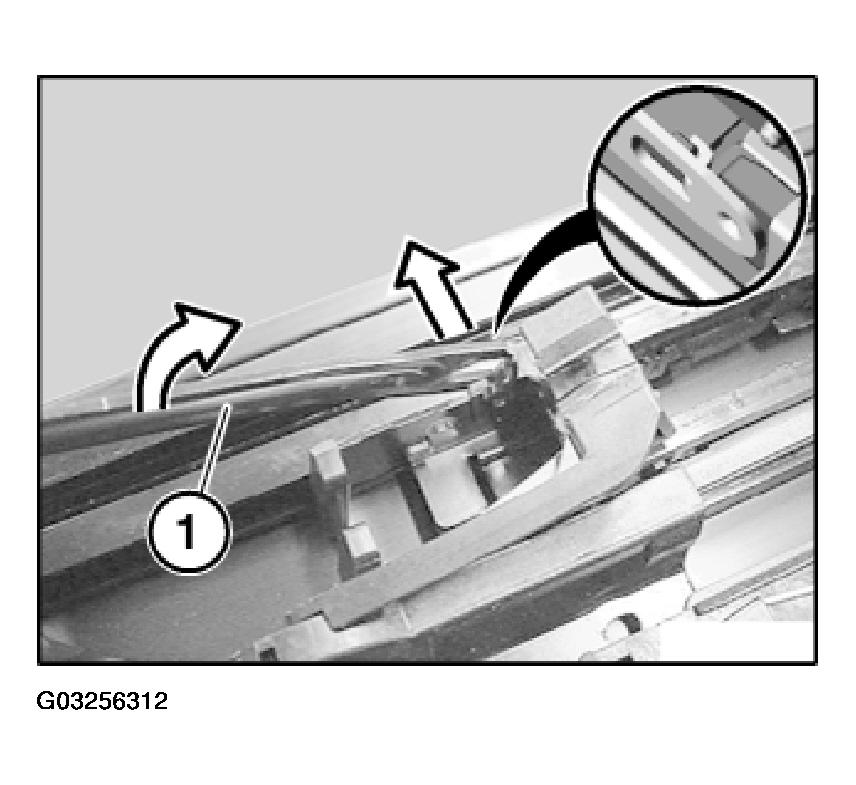

Remove upper connecting link (1) in direction of arrow from lower connecting link.

Fig 8: Removing Upper Connecting Link
G03256312Courtesy of BMW OF NORTH AMERICA, INC.

Removing drip moulding carrier and lower connecting link:

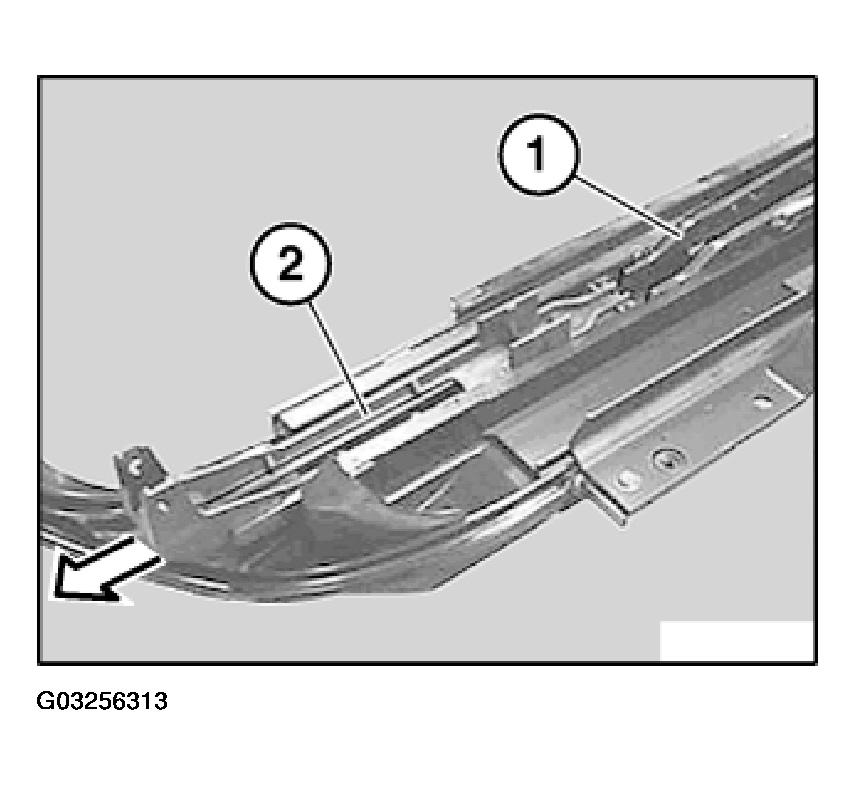

Slide drip moulding carrier (2) with lower connecting link (1) towards rear and remove from guide rail.

Fig 9: Removing Drip Moulding Carrier And Lower Connecting Link
G03256313Courtesy of BMW OF NORTH AMERICA, INC.

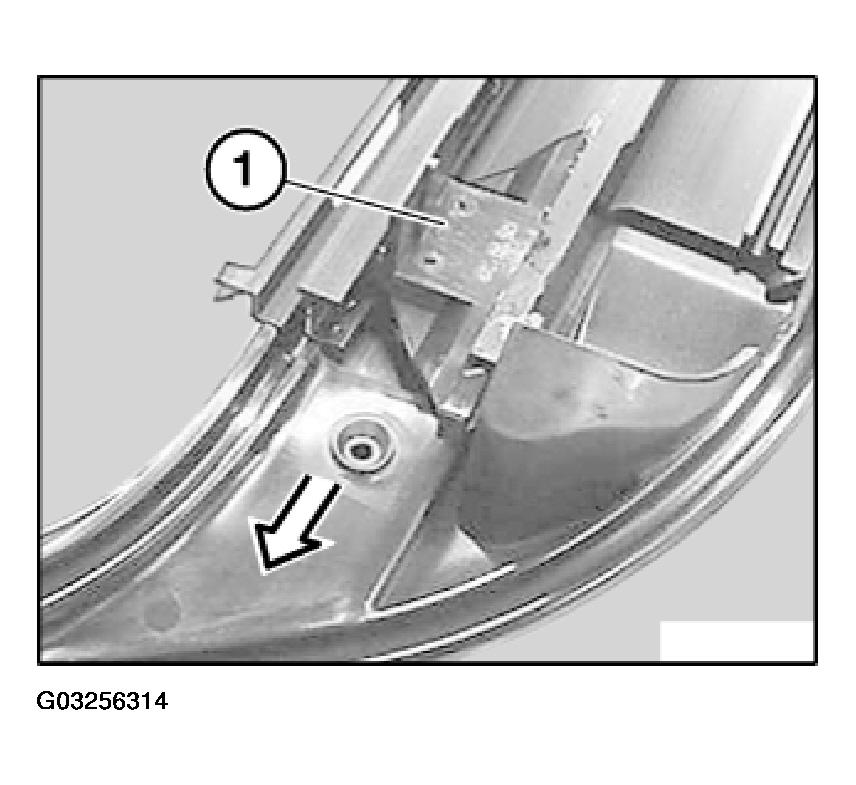

If necessary, push slide element (1) towards rear and remove from guide rail.

Fig 10: Removing Push Slide Element
G03256314Courtesy of BMW OF NORTH AMERICA, INC.

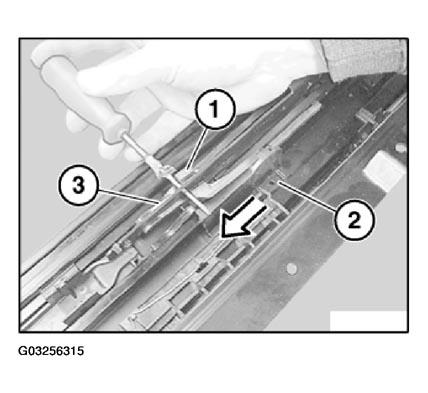

Adjusting mechanism before installing glass lid: Insert screwdriver into upper connecting link (3).

Slide drive plate (2) towards rear until drive wedge (1) runs against screwdriver.

NOTE: Check that mechanical components on left and right sides have same status.
Fig 11: Adjusting Glass Lid Mechanism
G03256315Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Check smooth and noise-free running of kinematics. Check function.
