67 61 515 Replacing drive with gear (front) for actuating slide/tilt sunroof (panorama glass sunroof)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, and 2001 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

E53 : Remove mounting bracket from roofliner at front. Refer to 51 44 020 REMOVING AND INSTALLING/REPLACING BRACKET ON ROOF LINING AT FRONT .

NOTE: Secure drive with gear for actuating slide/tilt sunroof (2) against falling out.

Release screws (1), tightening torque, (2.8 N.m.).

Lower drive with gear for actuating slide/tilt sunroof (2).

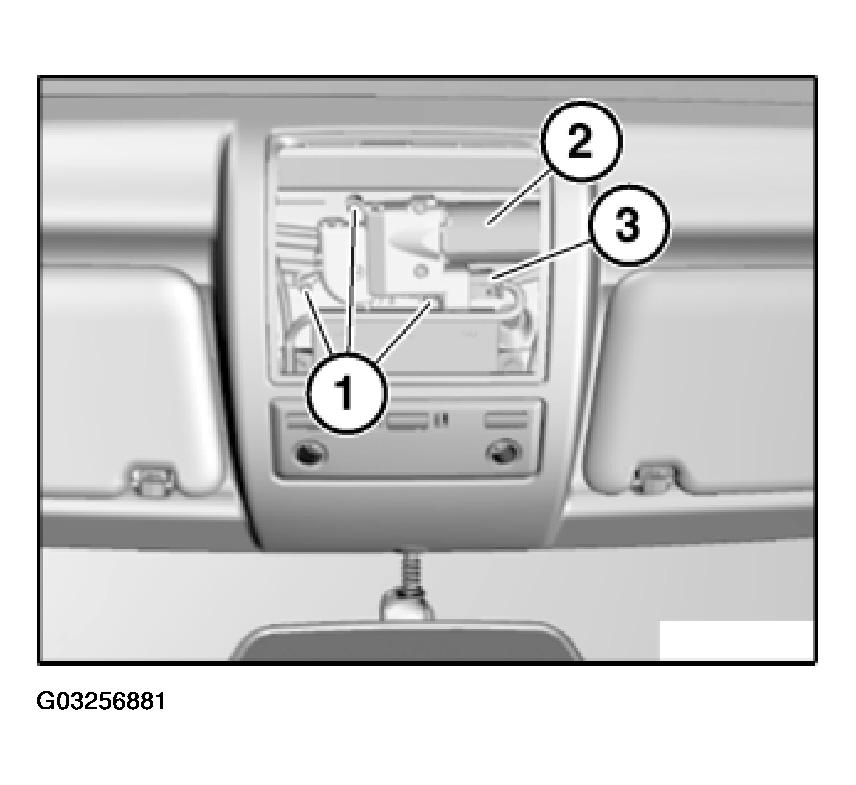

Fig 1: Identifying Drive With Gear For Actuating Slide/Tilt Sunroof

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Screws (1) are microencapsulated.

Unlock plug connection (3), disconnect and remove drive with gear for actuating slide/tilt sunroof (2).

Installation:

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).

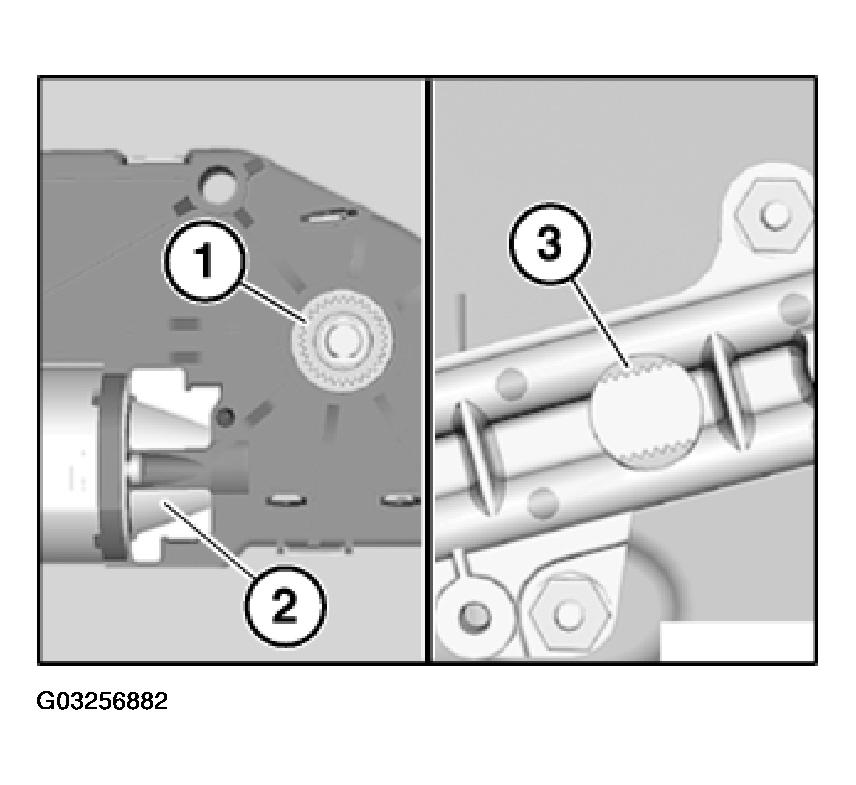

Fig 2: Inserting Gear Wheel Of Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize slide/tilt sunroof. Refer to 54 0 ... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
